StarTech.com 2m Fiber Optic Cable Multimode Duplex OM1 62.5/125 LSZH LC to ST Jumper Cord
Offer for a legal entity, non-cash payment.
Short description
Cheapest delivery:
Unisend LV
Product information
Description

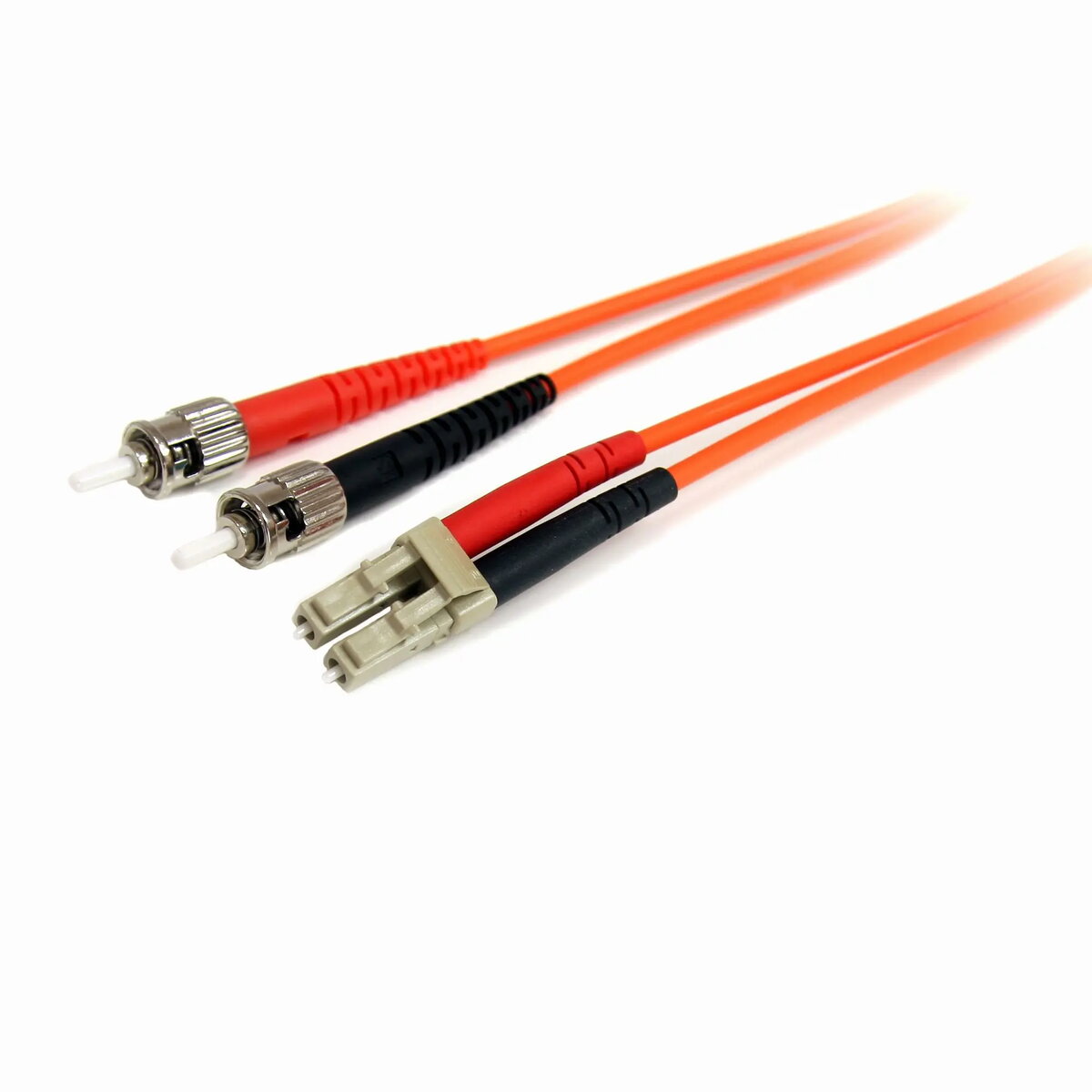

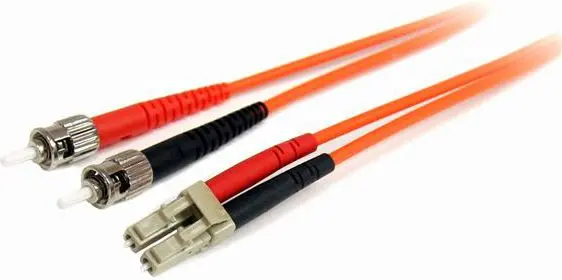

The StarTech.com 2m fiber optic cable is a multimode duplex OM1 62.5/125 LSZH LC to ST jumper cord designed for connecting fiber network devices for high-speed data transfers. Featuring an LC male connector on one end and an ST male connector on the other, this 2-meter patch cable provides reliable performance for local area networks and telecommunication equipment.
Advantages
This fiber optic cable utilizes an OM1 62.5/125 micrometer core and cladding structure suitable for standard network environments. It is built with a Low-Smoke, Zero-Halogen flame retardant jacket that emits minimal smoke, toxicity, and corrosion when exposed to high sources of heat. Additionally, the optical design ensures complete immunity to electrical interference, maintaining signal integrity in electrically noisy industrial or commercial spaces.
Suitable for
- Connecting fiber networking devices in local area networks
- Telecommunication equipment patching
- Installations in industrial settings, central offices, and schools
- Environments requiring strict low-smoke zero-halogen building compliance
When it may not be suitable
This cable may not be suitable for long-distance telecommunications that specifically require single-mode fiber infrastructure. It is also incompatible with network hardware that utilizes connector types other than LC or ST interfaces.
Key specifications
- Cable length: 2 m
- Fiber optic type: OM1
- Core diameter: 62.5/125 µm

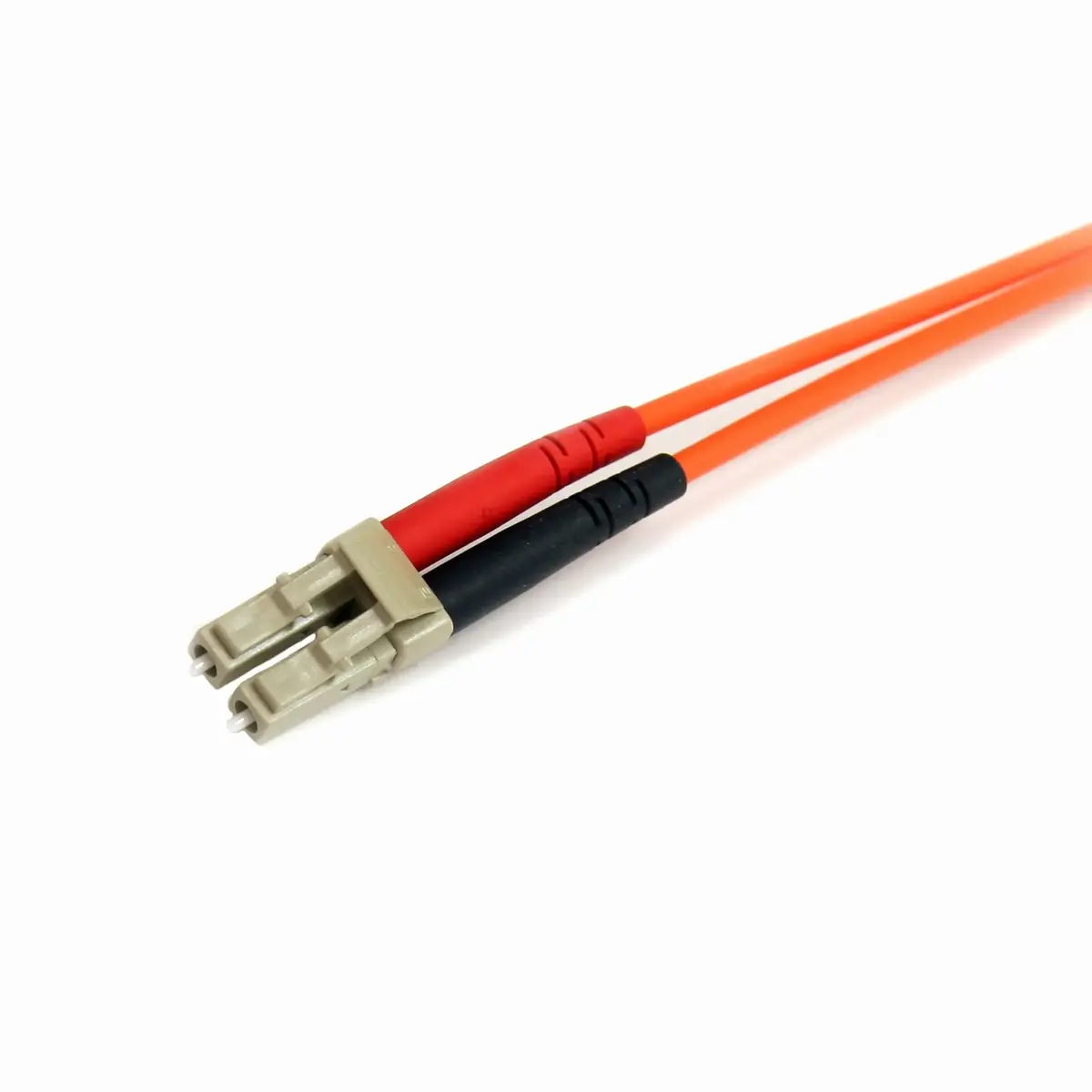

- Connector 1: LC Male

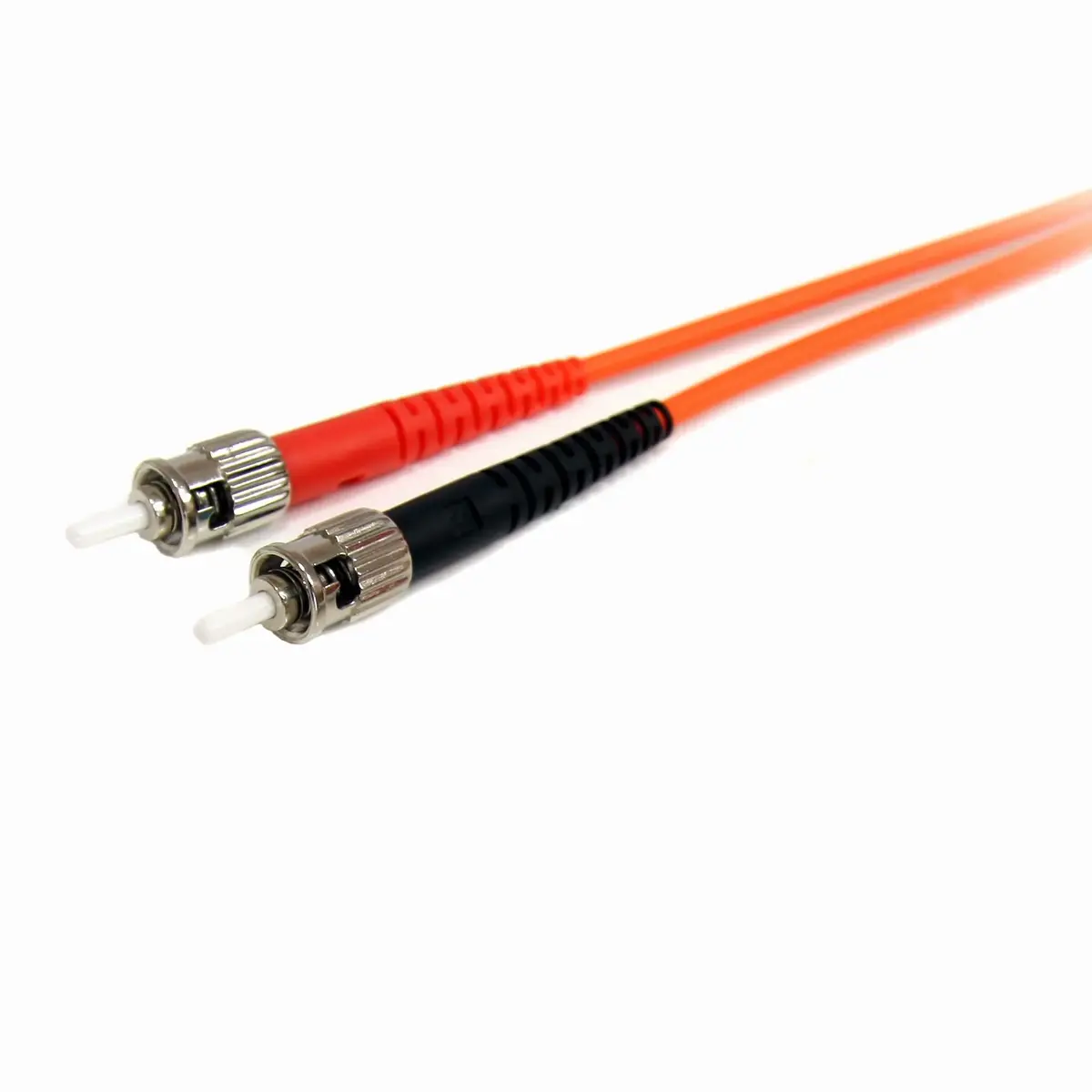

- Connector 2: ST Male
- Jacket material: Low-Smoke, Zero-Halogen (LSZH)
- Duplex mode: Full duplex
- Color: Orange
How to use
Inspect the connector ends for dust or debris before installation. Remove the protective dust caps from the LC and ST connectors. Align the LC connector with the corresponding port on your network device and gently push until it clicks into place. Connect the opposite ST connector to the compatible port on the second networking device by pushing and twisting the bayonet mount to lock it securely. Ensure the cable is not subjected to sharp bends or excessive pulling tension during routing.
What to consider before purchase
- Verify that your network hardware supports LC and ST connector interfaces
- Check whether your network design requires multimode OM1 specification rather than single-mode or higher OM grades
- Confirm that the 2-meter length is sufficient for the physical distance between your connected devices
Usage recommendations: Route the fiber optic cable carefully away from heavy foot traffic areas and sharp edges to prevent physical damage. Avoid exceeding the minimum bend radius specified for fiber cables to maintain optimal optical performance and prevent signal attenuation.
- Weight:
- 0.04 kg
- Full duplex:
- Yes
- Storage temperature (T-T):
- -20 - 60
- Package weight:
- 49 g
- Operating temperature (T-T):
- -20 - 60
- Cable length:
- 2 m
- Data transfer rate:
- 10 Gbit/s
- Product colour:
- Orange
- Package depth:
- 150 mm
- Package height:
- 21 mm
- Package width:
- 199 mm
- Master (outer) case height:
- 432 mm
- Master (outer) case width:
- 400 mm
- Connector 1:
- LC
- Connector 2:
- ST
- Fiber mode structure:
- Multi-mode
- Core diameter:
- 62.5 µm
- Cladding diameter:
- 125 µm
- Jacket material:
- Low smoke zero halogen (LSZH)
- Connector 1 gender:
- Male
- Connector 2 gender:
- Male
- Quantity per pack:
- 1 pc(s)
- Master (outer) case length:
- 406 mm
- Products per master (outer) case:
- 240 pc(s)
- Harmonized System (HS) code:
- 85447000
- Fibre optic type:
- OM1
- Doesn't contain:
- Halogen
- Compliance certificates:
- CE, RoHS
