StarTech.com Active HDMI 2.0 Cable 10m 4K 60Hz HDR10 HDCP 2.2

StarTech.com Active HDMI 2.0 Cable (10 m) provides a plenum-rated, long-distance HDMI connection for 4K 60Hz video and high-quality audio. The cable incorporates an integrated active chipset to boost the signal without external power, gold-plated connectors and high-conductivity copper conductors to maintain stable transmission, and a CMP-rated jacket suitable for routing through building plenums and in-wall installations.

Advantages

This active HDMI 2.0 cable supports full HDMI 2.0 feature set including up to 18 Gbps bandwidth for 4K 60Hz, HDR10 10-bit processing, ARC for multi-channel audio, HDCP 2.2 content protection, dual video streams and VRR support. The integrated active electronics extend usable HDMI distances beyond passive cable limits while the gold-plated connectors and 24/28 AWG copper conductors maintain low resistance and reliable signal integrity. The CMP-rated outer jacket provides low-smoke properties and is tested for durability with over 1,000 bending cycles at ±60° for secure routing through tight or complex pathways.

Suitable for

• Long-distance HDMI runs in offices or commercial buildings (plenum spaces and in-wall)
• Connecting 4K 60Hz sources to displays in home theater or professional AV setups
• Installations requiring HDCP 2.2 compliance and HDR10 support
• Setups needing unidirectional active HDMI cabling to extend signal range

Key specifications

• Length: 10 m
• Standard: HDMI 2.0 (full feature set)
• Bandwidth: Up to 18 Gbps
• Video: 4K @ 60 Hz, HDR10, 10-bit processing
• Audio: ARC support for up to 7.1 / 32-channel audio
• Content protection: HDCP 2.2
• Cable jacket: CMP (plenum-rated), low-smoke
• Conductors: 24/28 AWG bare copper
• Connectors: HDMI Type A (Standard) on both ends, gold-plated
• Direction: Unidirectional (observe SOURCE and DISPLAY markings)
• Colour: Black

How to use

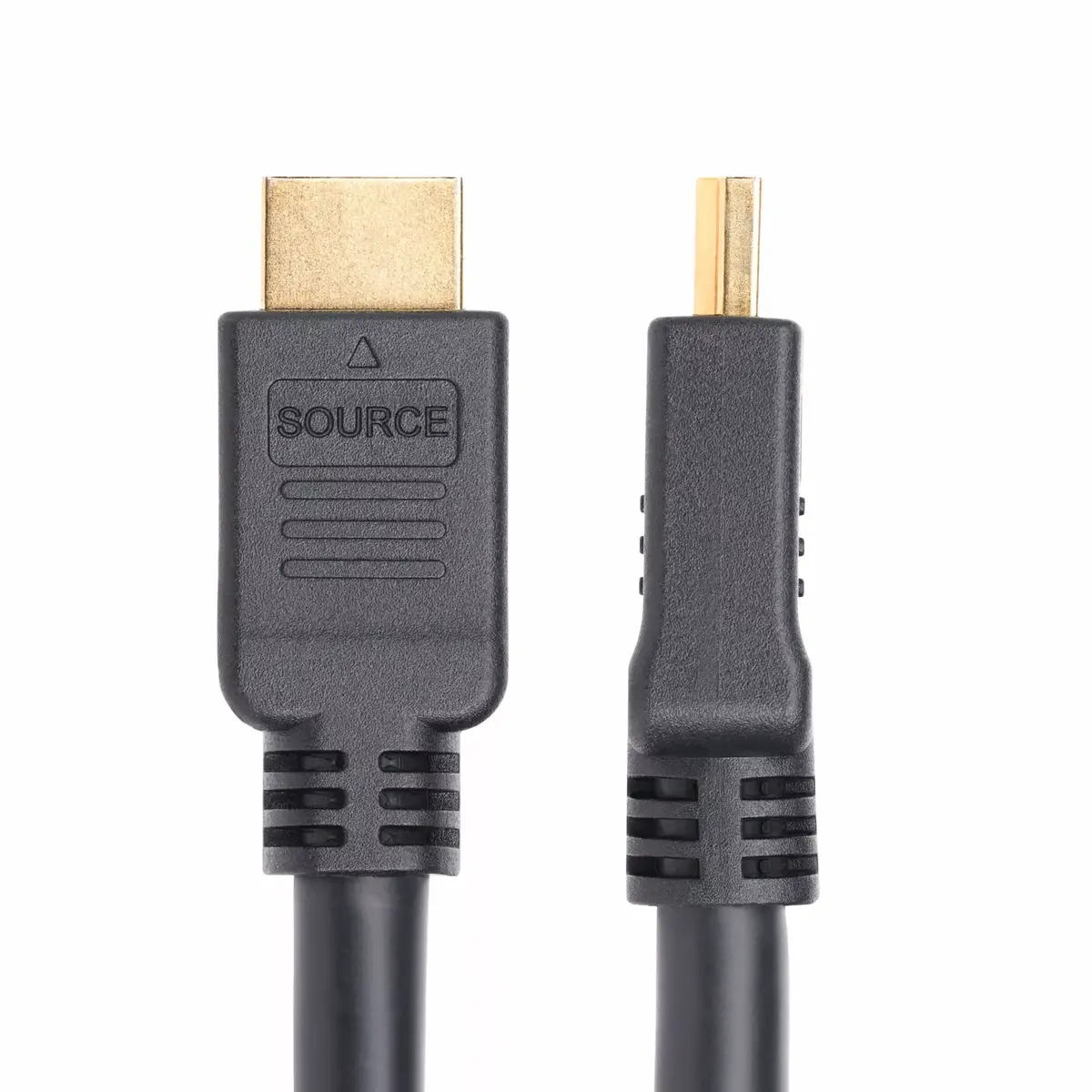

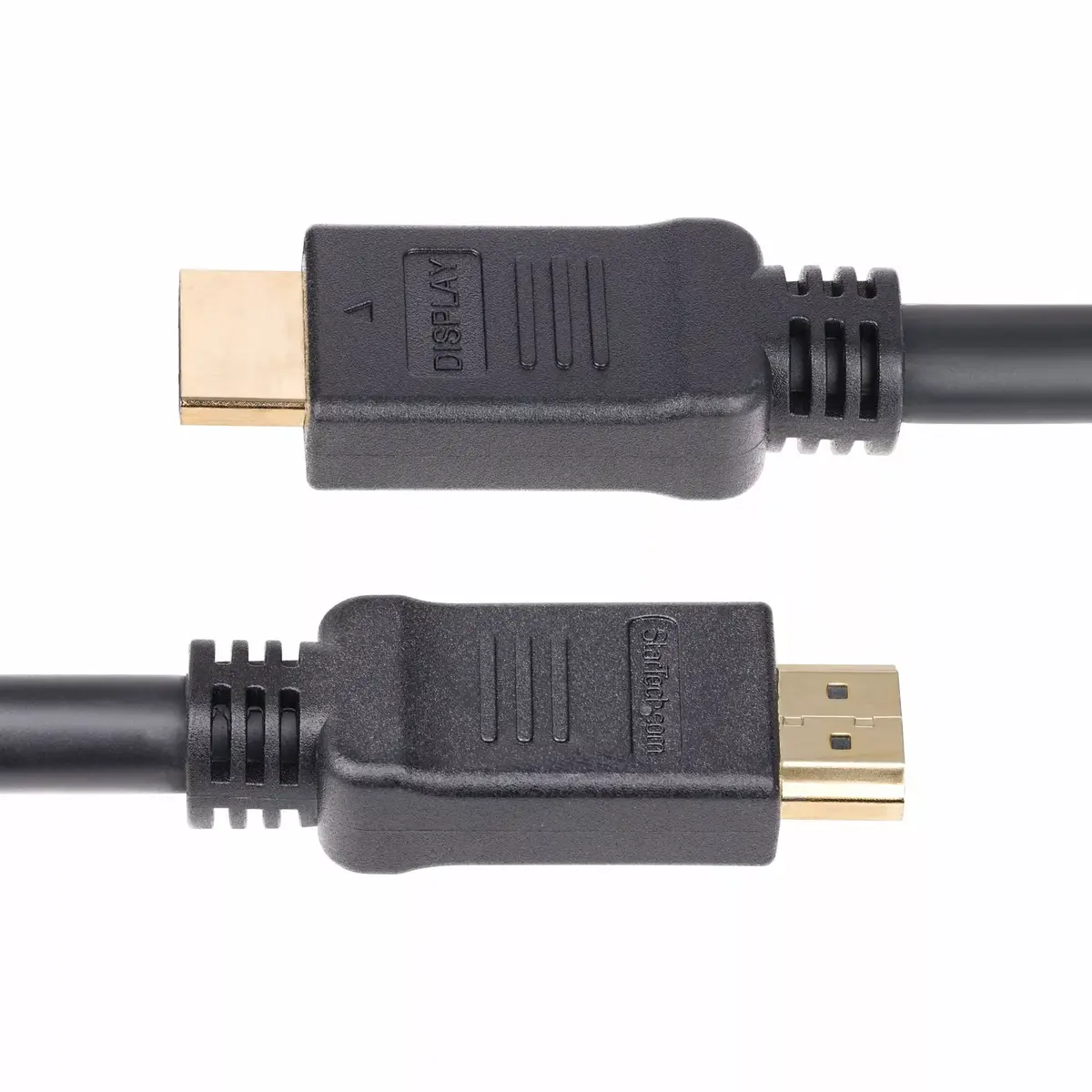

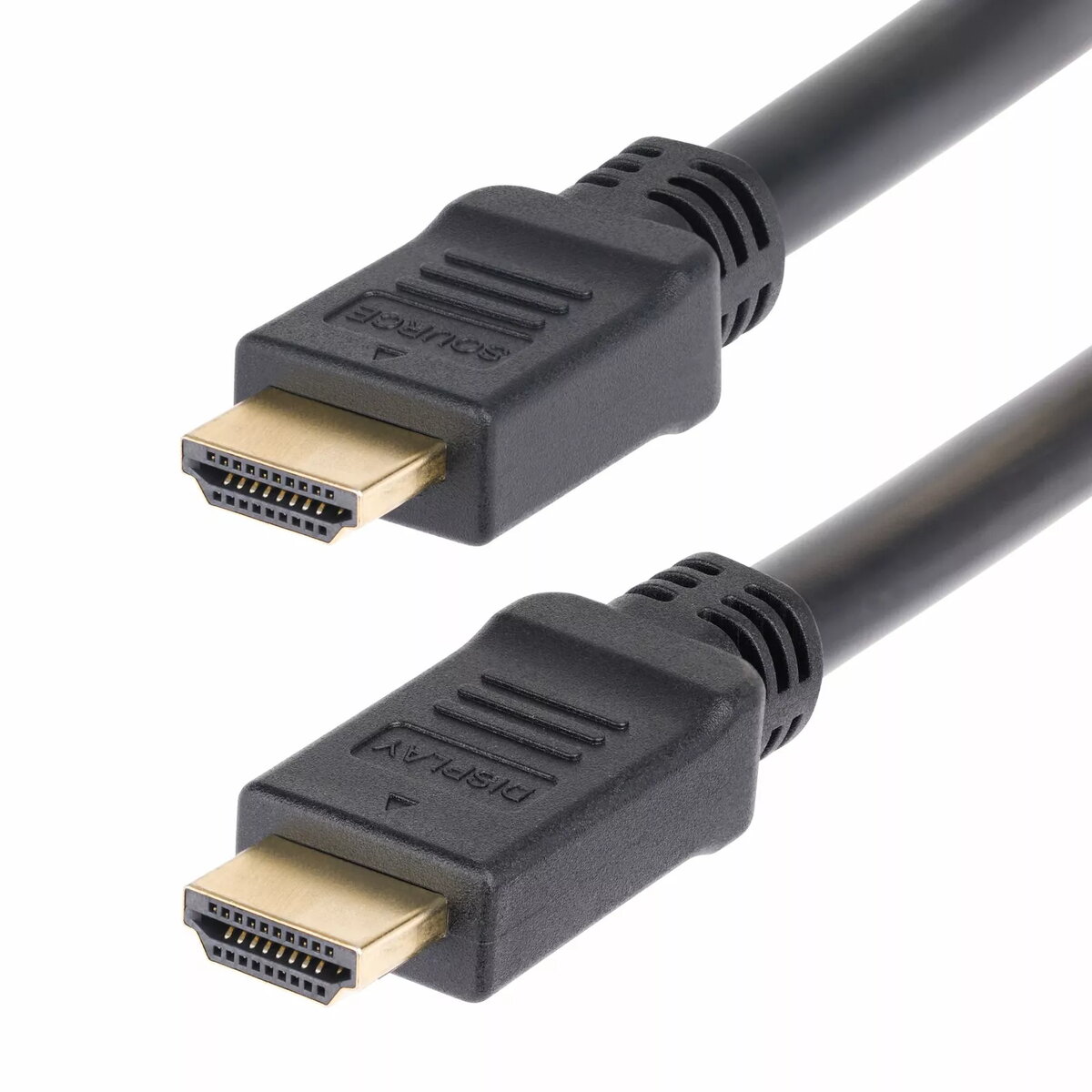

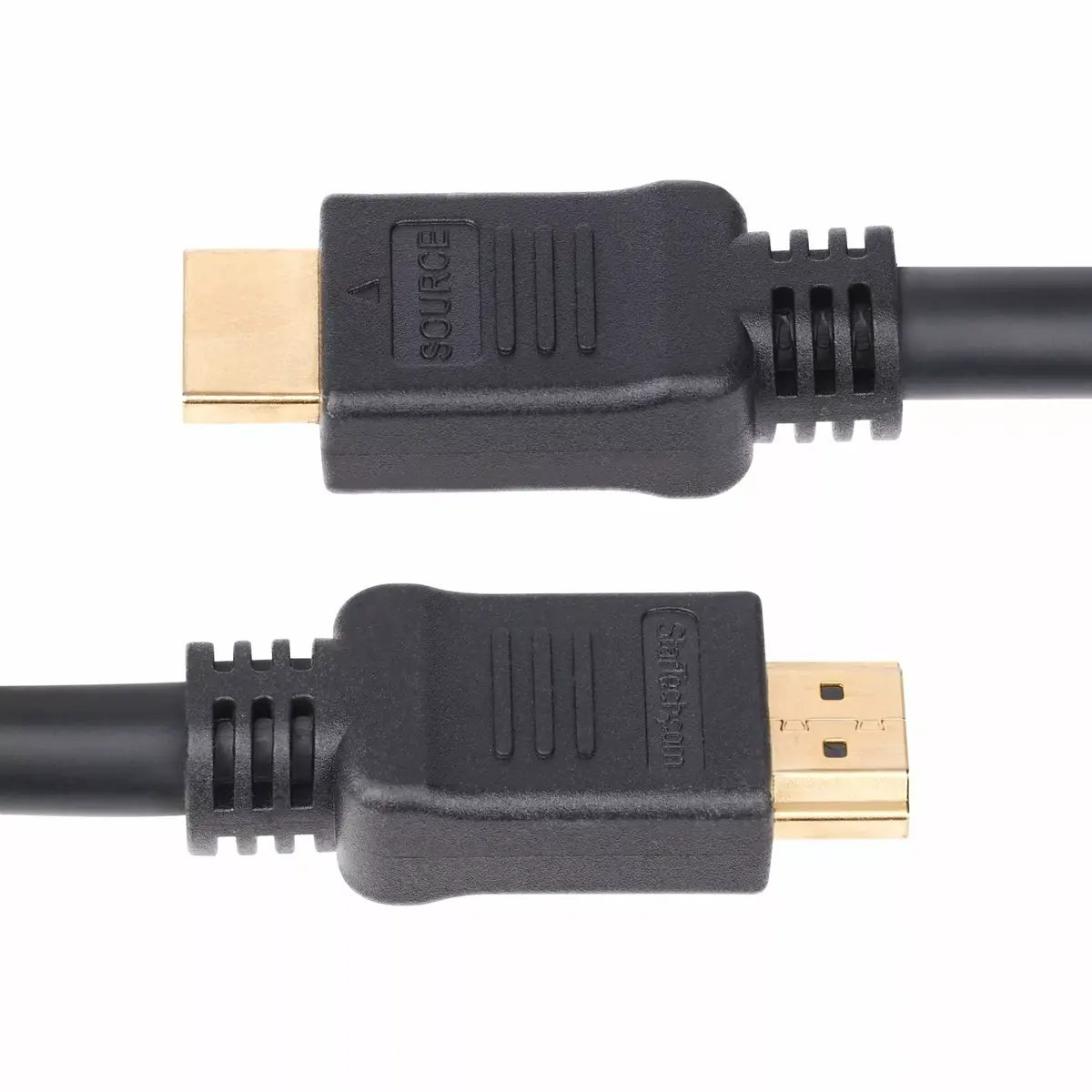

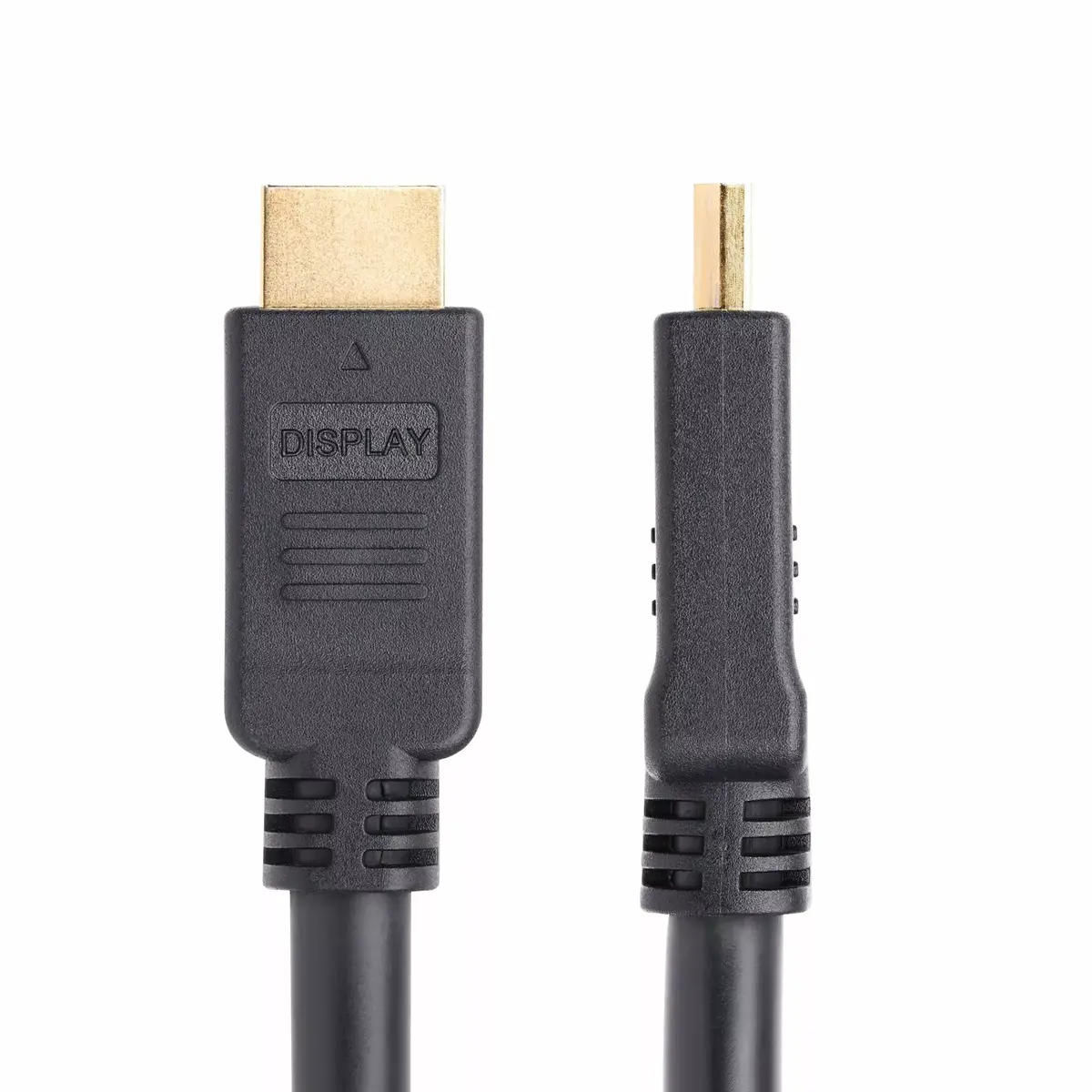

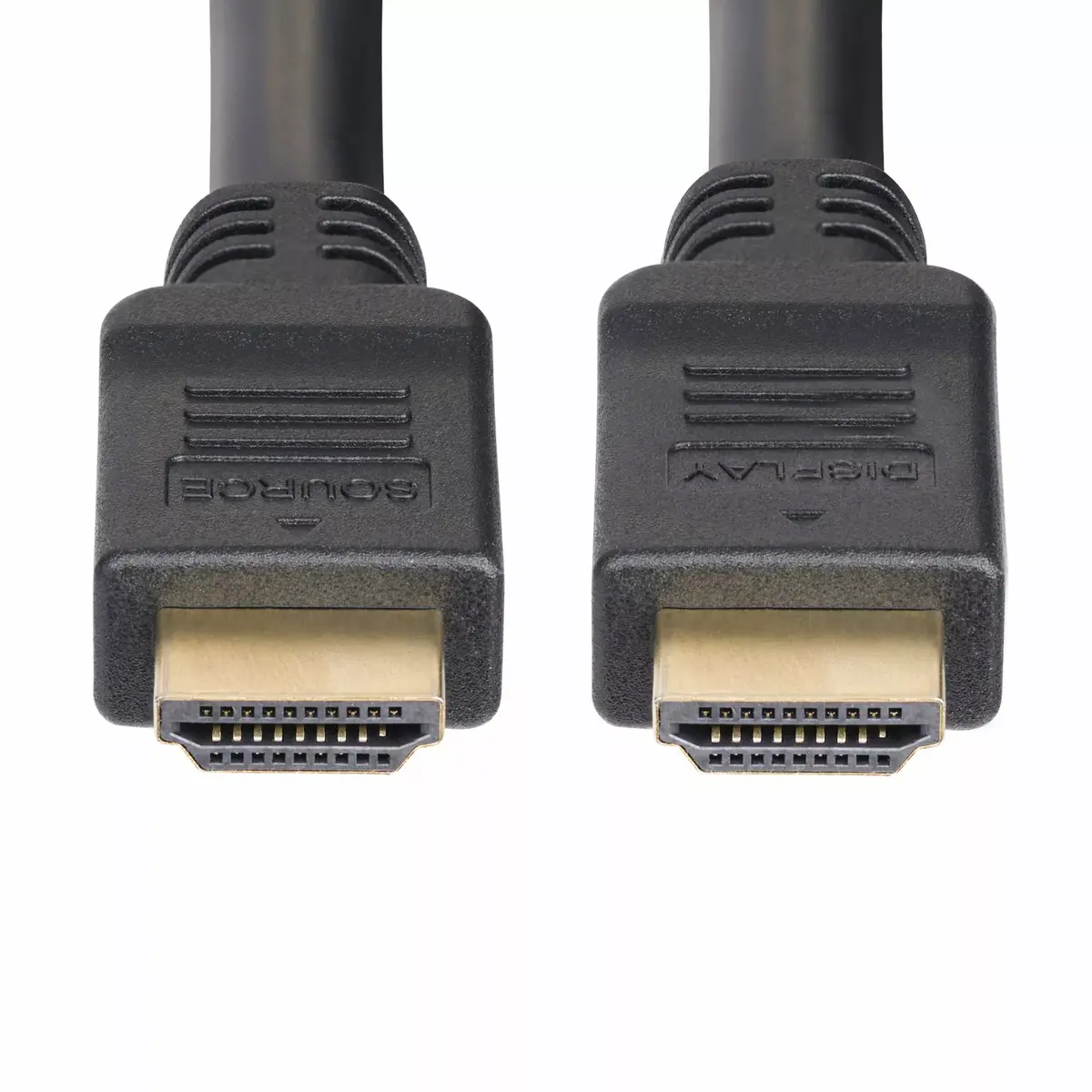

Identify the SOURCE and DISPLAY markings embossed on the HDMI connectors and orient the cable so the SOURCE end connects to the HDMI output of your source device (for example a Blu-ray player, media player, or computer) and the DISPLAY end connects to the HDMI input on your display or receiver. Route the cable through plenum spaces or in-wall pathways as required, taking care to avoid sharp kinks and to respect local building and fire codes. No external power is required for the integrated active chipset; simply connect both ends and power on the connected devices.

Usage recommendations

Use this StarTech.com Active HDMI 2.0 Cable in installations where a plenum-rated, long-distance HDMI connection is needed and ensure correct orientation due to the cable's unidirectional design. Verify device compatibility with HDMI 2.0, HDR10 and HDCP 2.2 to achieve full functionality.
