HDMI Female to Male Adapter StarTech HDMIPNLFM3

Name: HDMI Female to Male Adapter HDMIPNLFM3
Brand: StarTech
SKU: 294275
Price: 14.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

HDMI Female to Male Adapter StarTech HDMIPNLFM3 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech 3ft HDMI Female to Male Adapter offers a high-speed connection with 4K UHD support at 30Hz. It features a 0.9m length, gold-plated connectors, and supports HDMI version 1.4 with a data transfer rate of 10.2 Gbps. Ideal for panel mounting, it provides a reliable audio return channel (ARC) and is perfect for connecting devices in tight spaces.

Available at price 14.99 €: 10 pcs.

Total available for order: 122 pcs.

Warranty: 2 Years

SKU: 294275

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.08 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 21.49 €: 37 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

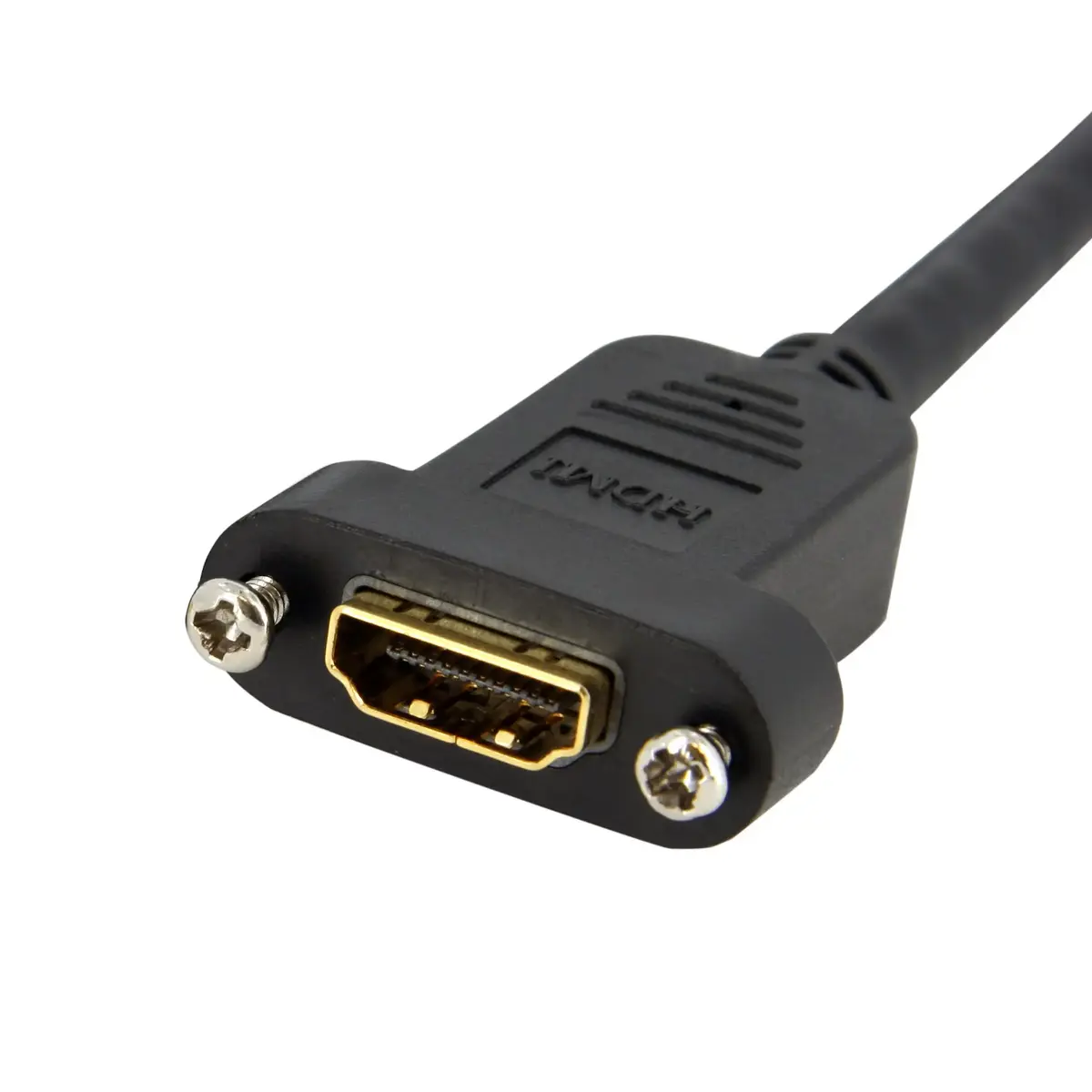

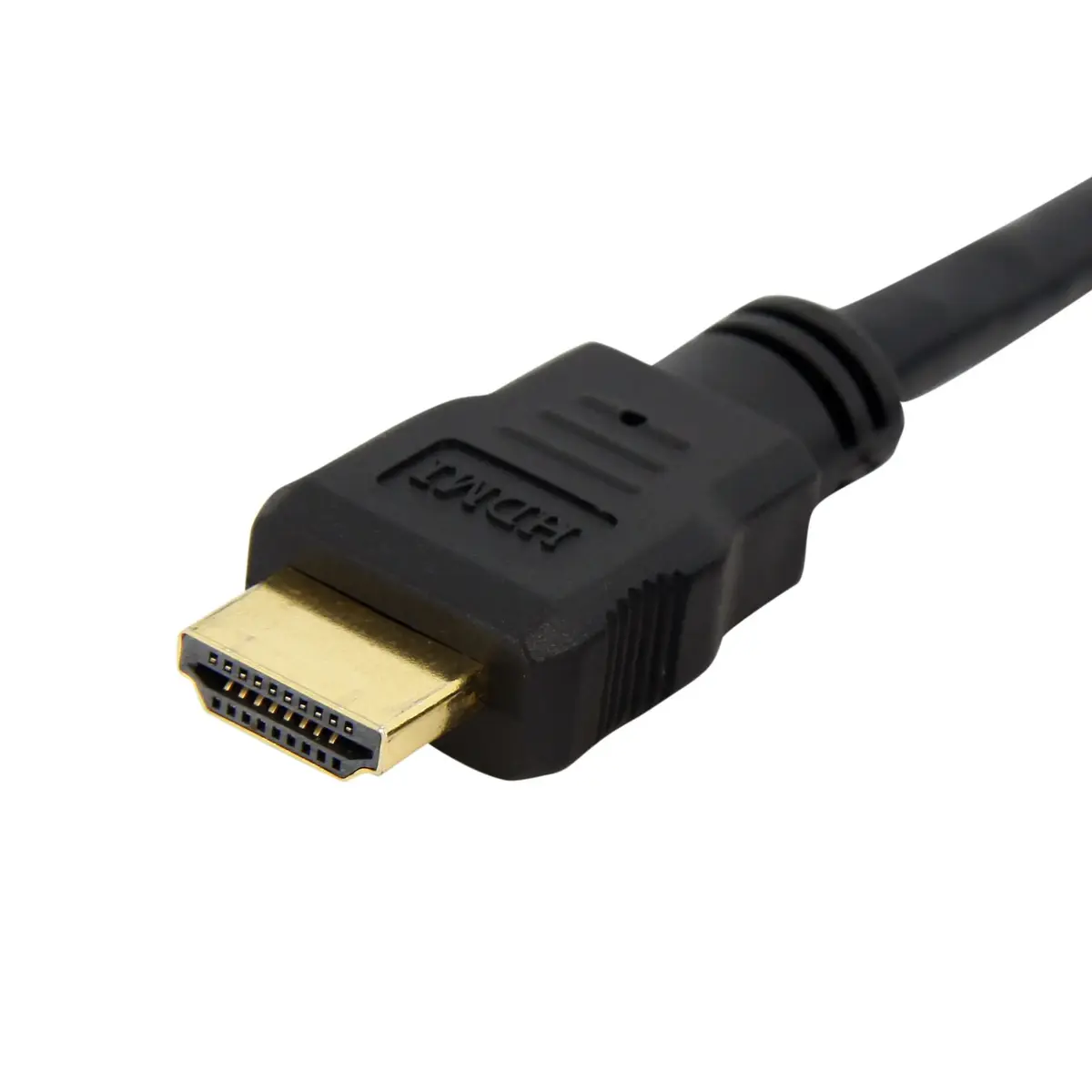

The StarTech HDMI Female to Male Adapter (HDMIPNLFM3) provides a secure, accessible HDMI connection by combining a standard HDMI male connector with a panel-mount HDMI female connector. With a 0.9 m (3 ft) high-speed HDMI cable, gold-plated connectors and support for HDMI 1.4, it delivers up to 10.2 Gbps bandwidth and 4K UHD video at 30 Hz while maintaining a compact profile for installation on machine ports or faceplates.

Advantages

This adapter offers a sturdy panel-mounted HDMI female connector for easy access and a standard HDMI male plug for connection to devices. Its 0.9 m length is suitable for short runs behind equipment, and gold-plated contacts improve signal reliability. The cable supports HDMI 1.4 features including 4K@30Hz and Audio Return Channel (ARC), and the product is covered by StarTech.com’s Lifetime Warranty.

Suitable for

Mounting an HDMI port on a machine panel or wall/faceplate
Connecting TVs, monitors or projectors in AV racks or enclosures
Short cable runs where a secured, accessible HDMI connection is required

Key specifications

Model: HDMIPNLFM3
Cable length: 0.9 m (3 ft)
Connectors: HDMI Type A male to HDMI Type A female (panel mount)
HDMI version: 1.4
Maximum bandwidth: 10.2 Gbps
Video support: Up to 4K UHD @ 30 Hz
Additional features: Audio Return Channel (ARC)
Weight: 0.079 kg
Colour: Black

How to use

Install the panel-mount HDMI female connector into the desired faceplate or equipment panel and secure it following the panel or chassis instructions. Plug the HDMI Type A male connector into the source or display device. Verify that connected devices are set to the appropriate HDMI input and configure display resolution to 4K@30Hz if required. For best results, ensure secure mounting and avoid sharp bends at connector ends.

Usage recommendations

Use this adapter for short, fixed installations where a durable, accessible HDMI port is needed on a panel or faceplate. Avoid using the cable for long-distance runs beyond its 0.9 m length and keep connectors free of dust and debris to maintain reliable signal transmission.

Specifications

Cable length:: 0.9 m
Connector 1:: HDMI Type A (Standard)
Connector 2:: HDMI Type A (Standard)
Weight:: 0.079 kg
Product colour:: Black

All features

Features

Cable length:: 0.9 m
Connector 1:: HDMI Type A (Standard)
Connector 2:: HDMI Type A (Standard)
Product colour:: Black
Plug and Play:: Yes
Data transfer rate:: 10.2 Gbit/s
Supported graphics resolutions:: 4096 x 2160, 3840 x 2160, 1920 x 1080 (HD 1080)
HDMI version:: 1.4
HDCP:: Yes
Connector contacts plating:: Gold
Maximum refresh rate:: 120 Hz
3D:: Yes
Dolby technologies:: Dolby TrueHD, Dolby Digital Plus
Audio Return Channel (ARC):: Yes
Connector 1 form factor:: Straight
Connector 2 form factor:: Straight
AWG wire size:: 28
Connector 1 gender:: Male
Connector 2 gender:: Female
Cable rating:: CMG (CM)
HDCP version:: 1.4
Cable jacket material:: Polyvinyl chloride (PVC)

Weight & dimensions

Weight:: 0.079 kg
Cable diameter:: 6.5 mm

Operational conditions

Operating relative humidity (H-H):: 0 - 85
Storage temperature (T-T):: -10 - 80
Operating temperature (T-T):: 5 - 70

Packaging content

Quantity per pack:: 1 pc(s)

Logistics data

Master (outer) case height:: 290 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 430 mm
Products per master (outer) case:: 140 pc(s)
Harmonized System (HS) code:: 84733080

Packaging data

Package weight:: 84 g
Package depth:: 220 mm
Package height:: 1 mm
Package width:: 200 mm

Certificates

Compliance certificates:: CE, RoHS

Hide Show all
