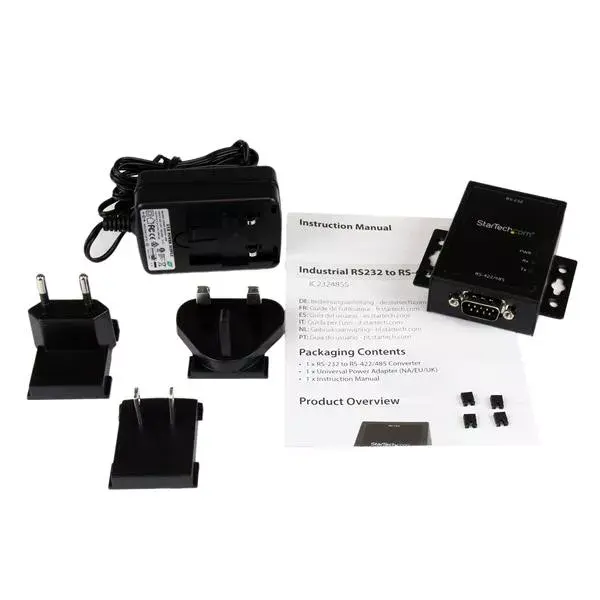

RS232 to RS422/485 Converter StarTech IC232485S Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech Industrial RS232 to RS422/485 Serial Port Converter features 15KV ESD protection, ensuring reliable data transmission. With dimensions of 59 mm width, 117 mm depth, and 22 mm height, it operates on an input voltage of 110-240 V and current of 0.3 A. Made from durable steel, it meets CE, FCC, and REACH certifications, making it ideal for industrial applications.

Available at price 113.49 €: 1 pcs.

Total available for order: 2 pcs.

Warranty: 2 Years

SKU: 768328

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.29 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 139.49 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Industrial RS232 to RS422/485 Serial Port Converter StarTech IC232485S converts an RS232 data signal to RS485 (2- or 4-wire) or RS422 and vice versa. Designed for industrial applications, the adapter supports baud rates up to 921.6 Kbps, provides 15kV ESD protection on all signal pins, and comes in a sturdy, wall-mountable steel housing with Power, Tx and Rx LED indicators. The unit accepts 110–240 V input voltage and supports communication distances up to 4000 ft (1200 m). It is CE-, FCC- and REACH-compliant and includes a 2-year manufacturer warranty and free lifetime technical support.

Advantages

This serial converter offers integrated 15kV ESD protection to safeguard sensitive industrial control equipment, automatic detection of baud rate and interface mode (with a manual DIP switch available), and high-speed data transfer up to 921.6 Kbps. The compact steel enclosure is wall-mountable for convenient installation and includes LED indicators for power and transmit/receive status.

Suitable for

Connecting RS232 devices to RS485 or RS422 networks in industrial control systems
Extending serial communication up to 1200 m (4000 ft)
Environments requiring ESD protection for sensitive equipment
Wall-mounted installations where a durable metal enclosure is needed

Key specifications

Manufacturer: StarTech
Model / MPN: IC232485S
Supported interfaces: RS232 to RS422 or RS485 (2- or 4-wire), bidirectional
Maximum baud rate: 921.6 Kbps
ESD protection: 15 kV on all signal pins
Maximum distance: 4000 ft (1200 m)
Input voltage: 110–240 V
Input current: 0.3 A
Dimensions (W×D×H): 59 × 117 × 22 mm
Material: Steel
Certifications: CE, FCC, REACH
Warranty: 2 years (manufacturer)
EAN: 0065030852555

How to use

Mount the converter on a suitable wall surface using the integrated mounting points. Connect the RS232 device to the RS232 port and connect the RS422/RS485 network to the terminal block according to the selected mode. Power the unit with the specified 110–240 V input. The converter will auto-detect baud rate and RS-422/RS-485 mode; if manual selection is required, use the integrated DIP switch to set the desired mode. Monitor the Power, Tx and Rx LEDs to verify operational status and data transmission.

Usage recommendations

For reliable long-distance serial communication, use proper shielded cabling and ensure correct termination and biasing for RS-485 networks. Keep the unit grounded and avoid exposure to direct moisture. Consult device manuals for wiring polarity and termination details when integrating with industrial control equipment.

All features

Weight:: 0.143 kg
Certification:: CE, FCC, REACH
Operating relative humidity (H-H):: 5 - 85
Storage temperature (T-T):: -20 - 60
Package weight:: 351 g
Operating temperature (T-T):: 0 - 50
Height:: 22 mm
Input voltage:: 110 - 240
Width:: 59 mm
Depth:: 117 mm
Product colour:: Black
Host interface:: RS-232
Input current:: 0.3
Package depth:: 146 mm
Package height:: 41 mm
Package width:: 208 mm
Manual:: Yes
Housing material:: Steel
Connector 1:: DB-9
Connector 2:: DB-9
Output interface:: RS-232
Maximum cable length:: 1200 m
Sustainability certificates:: RoHS
