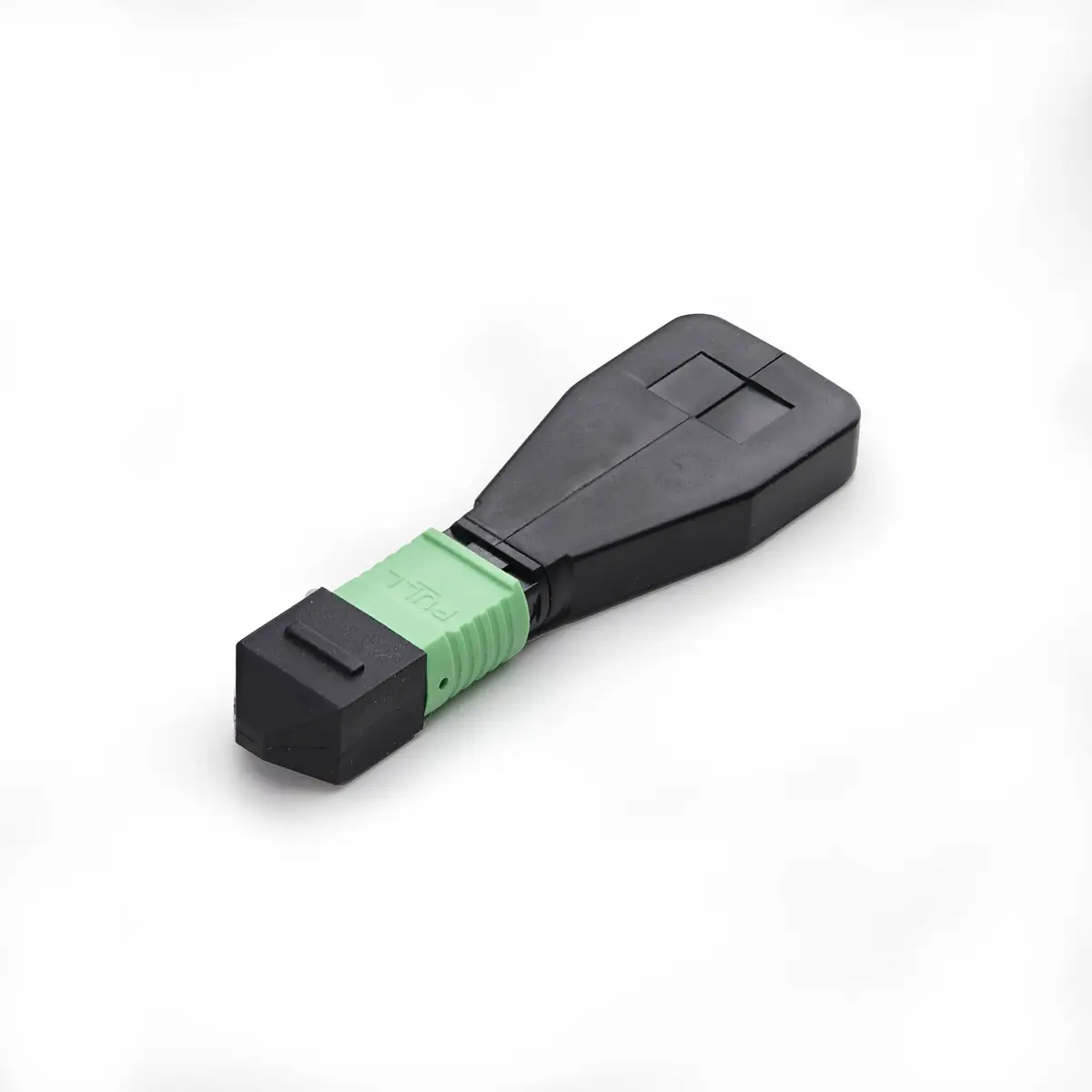

StarTech MPO Loopback Plug Single Mode 9/125 MPO-8 Male Fiber Adapter MPO/MTP-APC Connector
Offer for a legal entity, non-cash payment.
Short description
Cheapest delivery:
Unisend LV
Product information
Description
The StarTech MPO Loopback Plug Single Mode 9/125 MPO-8 Male Fiber Adapter is a specialized networking tool designed for testing and troubleshooting optical network equipment. Built for precision, this fiber cable tester enables network technicians and IT professionals to verify signal continuity, test port functionality, and isolate faults in high-density optical infrastructures without disrupting adjacent connections.
Advantages
This single mode loopback plug provides a reliable solution for optical network diagnostics by creating a direct loopback test connection. Featuring a fixed 8-fiber configuration with precision-aligned ceramic ferrules in a compact ABS housing, it delivers consistent signal performance and maintains durability through repeated test cycles. Its compact form factor makes it practical for field technicians performing on-site diagnostics, patch panel verification, and routine maintenance.
Suitable for
- Testing single mode MPO-8 fiber connections and transceivers
- Data center network troubleshooting and maintenance
- Telecommunications and enterprise network diagnostics
- Verifying signal continuity and port behavior in high-speed parallel optic links
When it may not be suitable
This adapter is designed exclusively for single mode 9/125 MPO-8 connections and will not function correctly with multi-mode fiber systems. It is intended specifically for loopback testing and diagnostics rather than permanent data transmission links.
Key specifications
- Product type: Fiber cable tester
- Supported connectors: MPO/MTP-APC
- Fiber mode: Single Mode 9/125 (OS1 and OS2)
- Configuration: MPO-8 Male
- Compliance: TAA, CE, RoHS, IEC standards
- Dimensions: Width 20.1 mm, Depth 65 mm, Height 9.3 mm
- Color: Black and Green
How to use

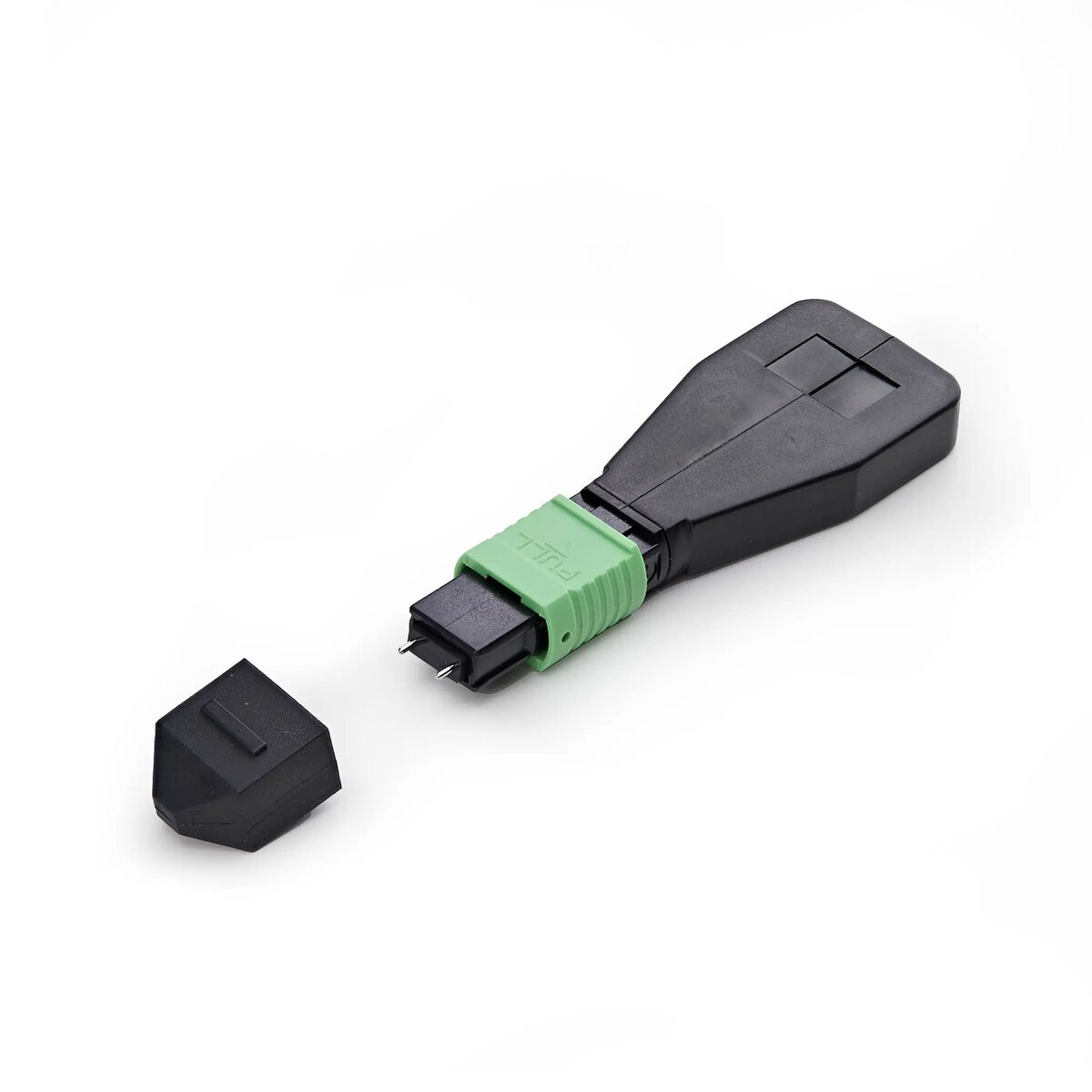

To perform a test, remove the protective dust cap from the MPO loopback plug and carefully insert the male MPO-8 connector directly into the female MPO/MTP port, switch panel, or transceiver you wish to test. Ensure the connection is fully seated to establish the loopback path. Once connected, utilize your network testing equipment to evaluate signal continuity, insertion loss, and overall port performance. After testing is complete, disconnect the adapter and replace the protective dust cap to keep the connector clean.
What to consider before purchase
- Verify that your network equipment utilizes single mode 9/125 cabling and MPO/MTP-APC female ports
- Confirm the fiber count compatibility, as this device features an 8-fiber MPO configuration
- Check compliance requirements for your enterprise or telecommunications environment
Usage recommendations
Always inspect and clean the fiber connector end-faces using approved optical cleaning tools prior to insertion to prevent dust or contamination from affecting test accuracy.
- Housing material:
- Acrylonitrile butadiene styrene (ABS)
- Fiber mode structure:
- Single-mode
- Built-in display:
- No
- Test type:
- Loopback testing
- Supported connectors:
- MPO/MTP
- Fibre optic type:
- OS1/OS2
Logistics data
- Products per master (outer) case:
- 1000 pc(s)
- Master (outer) case height:
- 400 mm
- Master (outer) case length:
- 335 mm
- Master (outer) case width:
- 430 mm
Other features
- Product type:
- Fiber cable tester
Packaging data
- Package weight:
- 7 g
- Package height:
- 5 mm
- Package depth:
- 90 mm
- Package width:
- 120 mm
Weight & dimensions
- Weight:
- 0.004 kg
- Height:
- 9.3 mm
- Depth:
- 65 mm
- Width:
- 20.1 mm
Certificates
- Compliance certificates:
- Trade Agreements Act (TAA), CE, RoHS
Operational conditions
- Storage temperature (T-T):
- -40 - 75
- Operating temperature (T-T):
- -40 - 75
Features
- Connector gender:
- Male
- Product colour:
- Green, Black
Instructions
