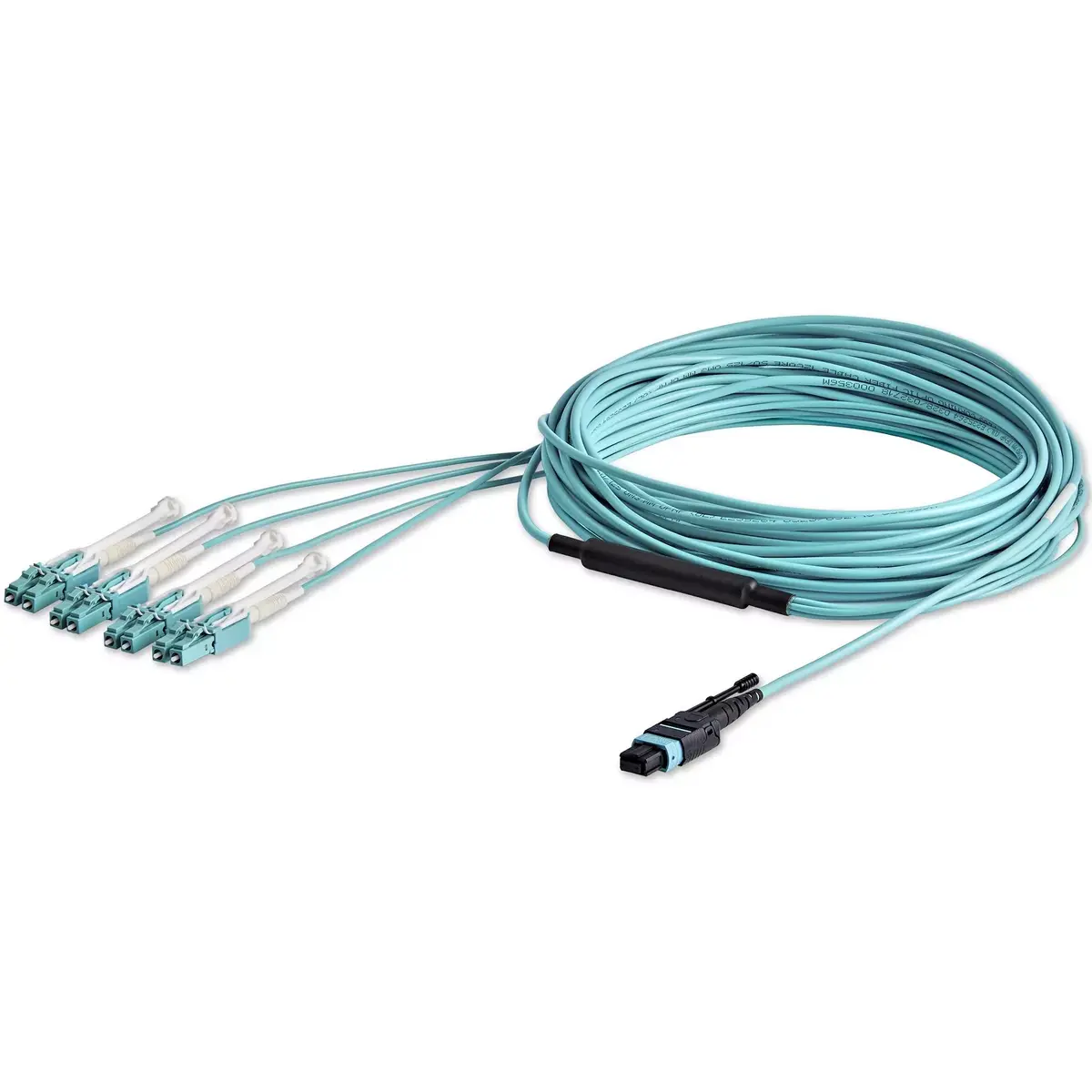

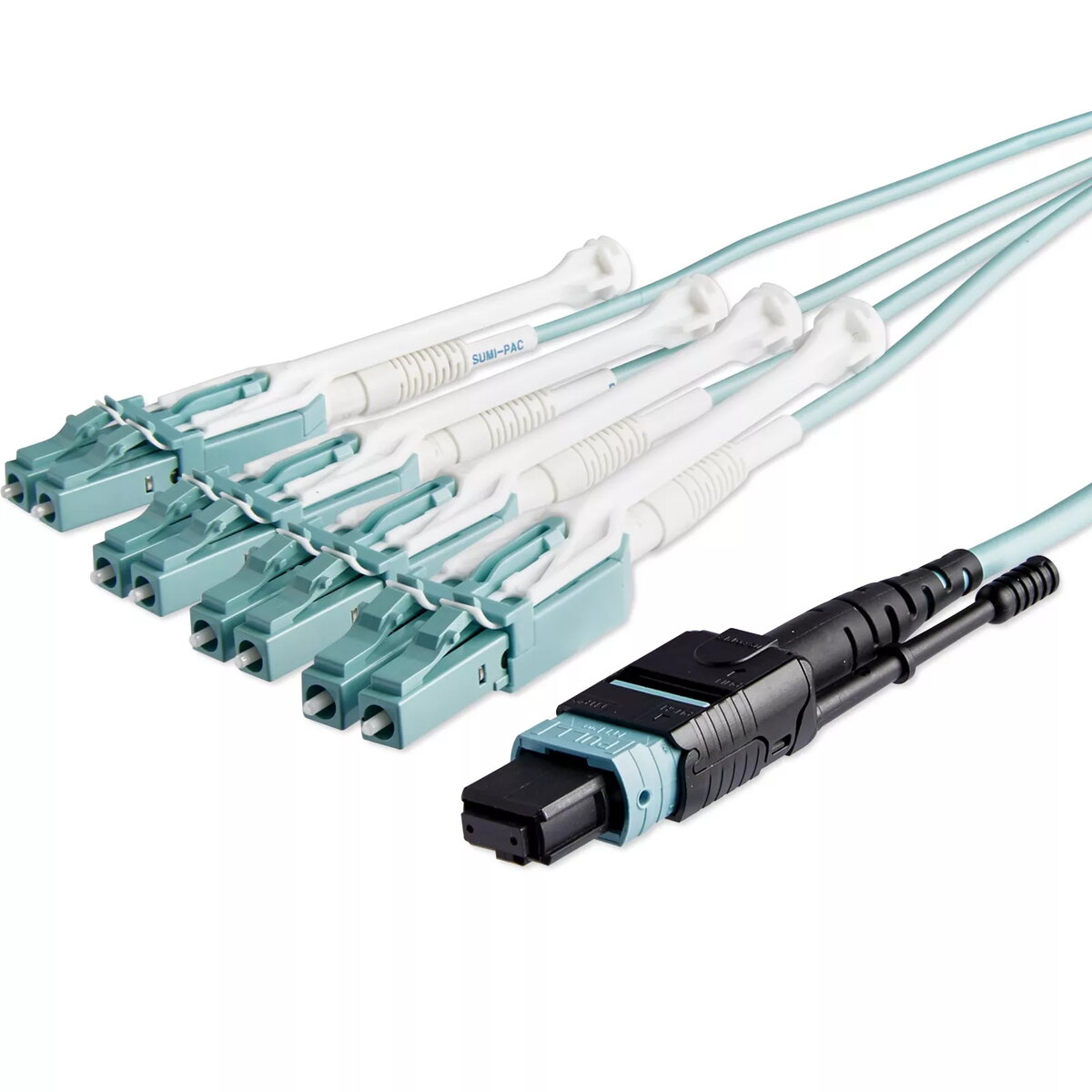

StarTech.com 10m MTP(F)/PC to 4x LC/PC Duplex OM3 Multimode Fiber Optic Cable

The StarTech.com 10m MTP(F)/PC to 4x LC/PC Duplex OM3 Multimode Fiber Optic Cable (MPO8LCPL10M) is a plenum-rated breakout cable that fans out a single 40Gbps MPO/MTP connection to four 10Gbps LC duplex links. Designed for 40GBase-SR4 QSFP+ to LC SFP+ applications, the OM3 multimode fiber with 50 µm core diameter supports high-speed data transmission in data centers and enterprise networks. The OFNP plenum jacket allows installation in plenum air spaces where CMP fire rating is required.

Advantages

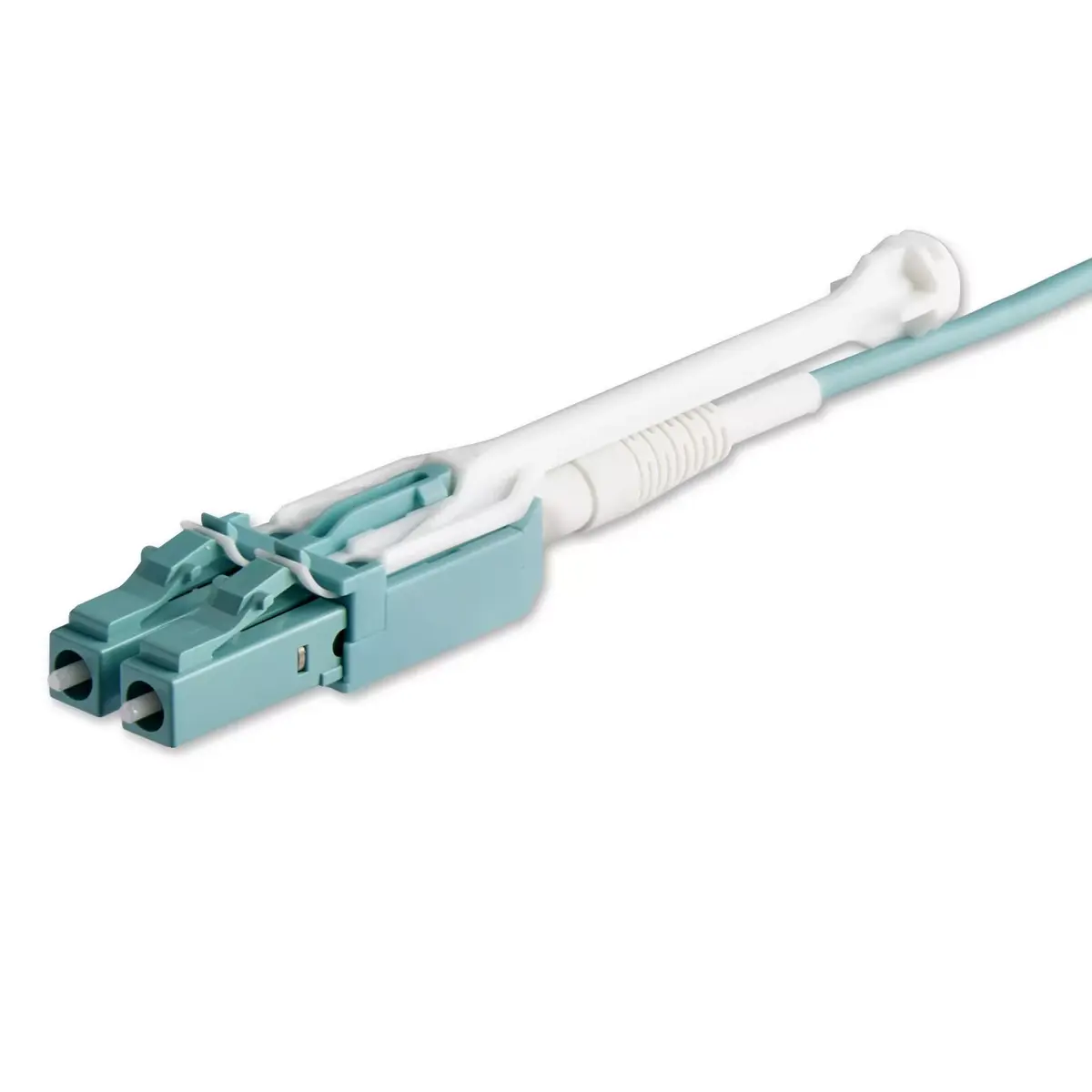

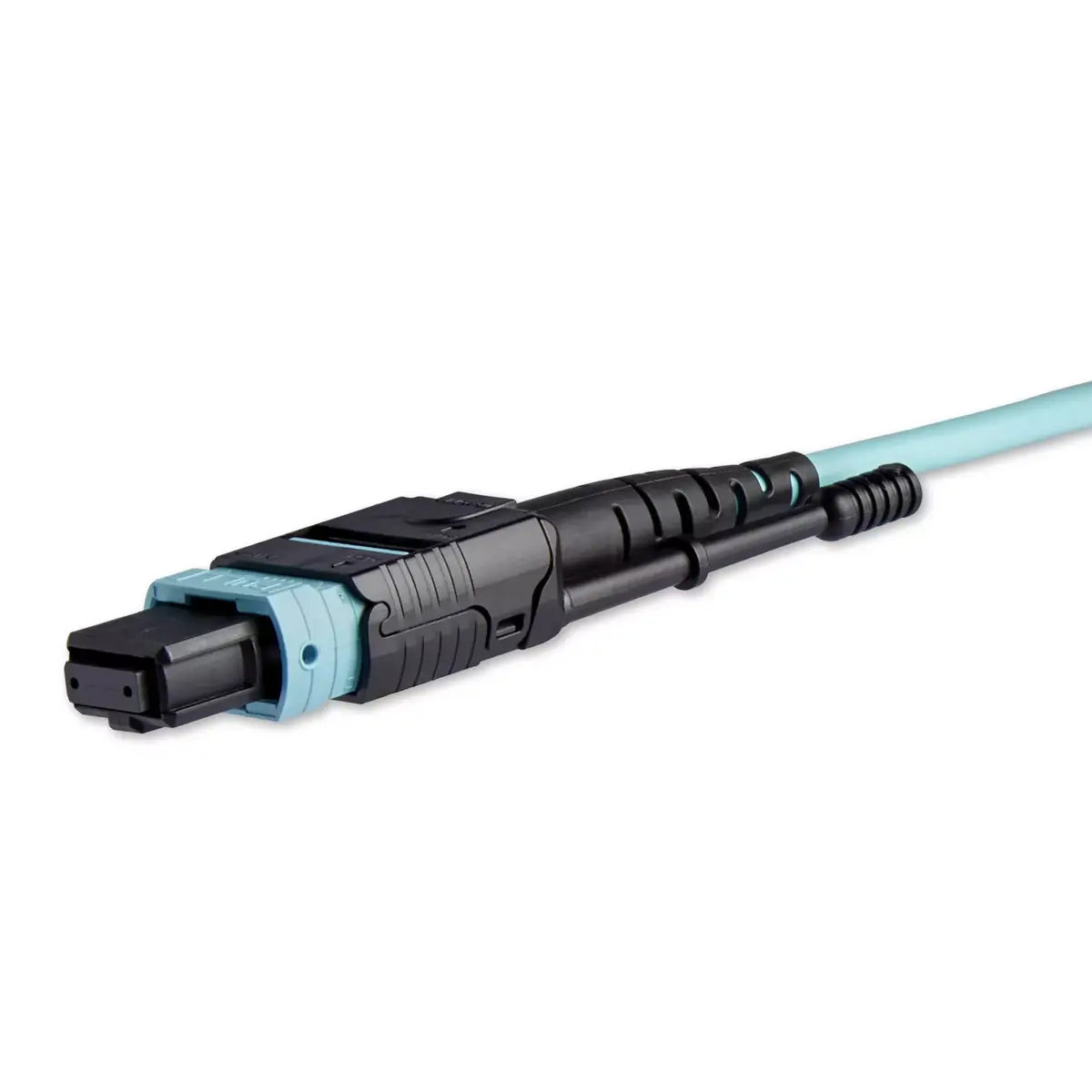

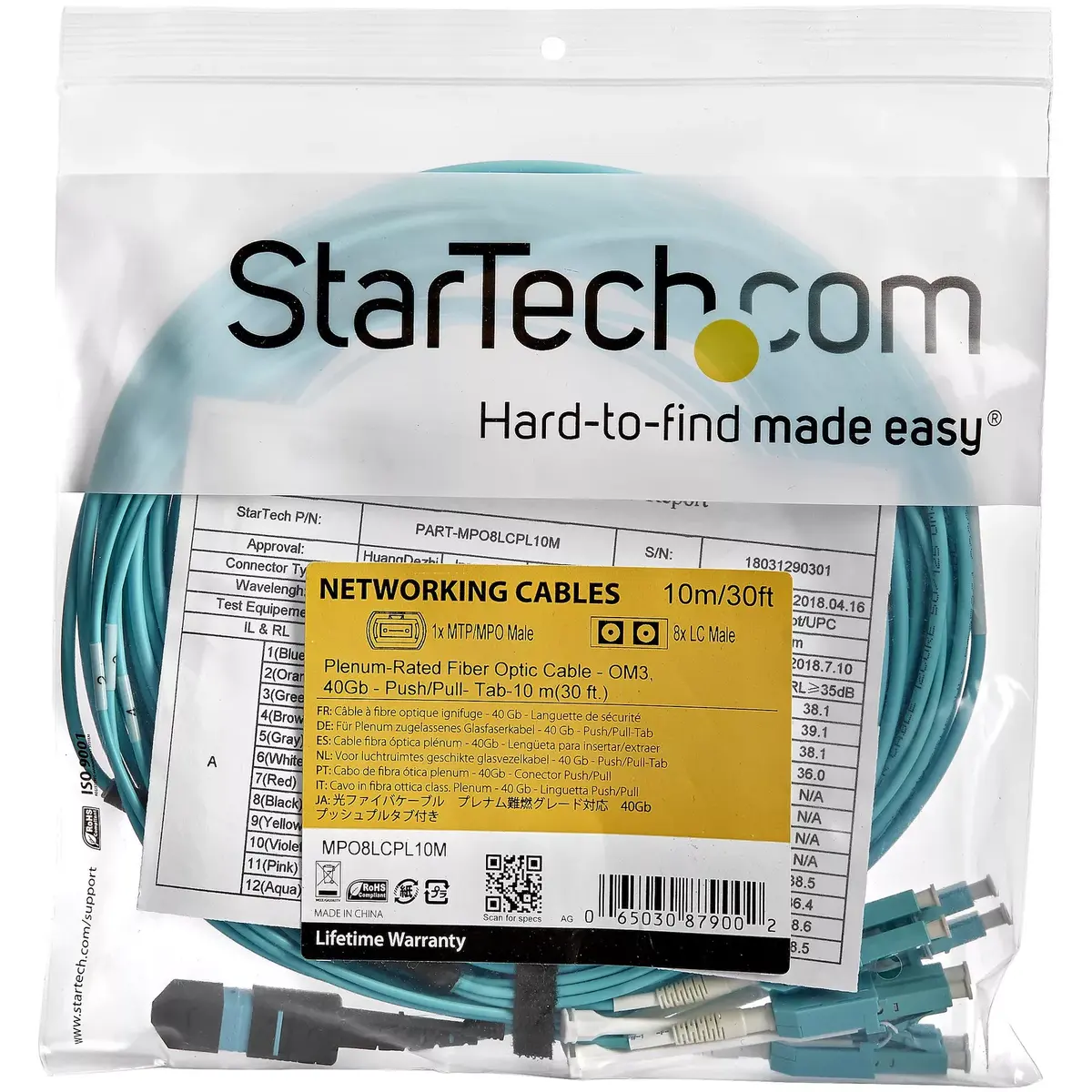

This cable provides a low-insertion-loss OM3 multimode link that is individually tested for insertion loss and return loss, with full test reports included in each cable bag. The MTP push-and-pull tabs enable single-handed installation and removal without tools, and the slim uniboot LC design reduces connector footprint for improved cable management. The plenum-rated jacket ensures compliance with air-handling space requirements, and the product is backed by StarTech.com’s lifetime warranty.

Suitable for

• Breaking out a 40GBase-SR4 QSFP+ MPO/MTP connection to four 10G LC SFP+ transceivers
• Data center uplinks and switch-to-server connections in SANs
• In-wall and plenum air-space installations requiring CMP/OFNP rating
• High-density patch panels and fiber distribution frames

Key specifications

• Length: 10 m
• Connector A: MTP(F)/PC (MPO)
• Connector B: 4 x LC/PC Duplex (uniboot)
• Fiber type: OM3 multimode, 50 µm core
• Plenum rating: OFNP / CMP
• Designed application: 40Gbps to 4 × 10Gbps breakout (40GBase-SR4 to 4×10G SFP+)
• Individual insertion loss and return loss tested; test report included
• Manufacturer: StarTech.com, MPN: MPO8LCPL10M, EAN: 0065030879002

How to use

Connect the MTP/MPO end to the 40GBase-SR4 QSFP+ transceiver or MPO port, and connect each LC duplex pair to the corresponding 10G SFP+ transceivers or LC ports. Use the push-and-pull tabs on the MTP connector to engage or release the connector with one hand. Route the slim uniboot LC leads to the patch panel or equipment ports to minimize space usage and maintain organized cable runs. Verify link integrity using the included test report and perform optical power testing as required by your network policies.

Usage recommendations

For reliable performance, avoid tight bends near the connectors, maintain bend radius according to OM3 specifications, and install the cable in plenum-rated pathways when required. Use proper polishing covers and protectors during handling, and refer to the included test report when validating links.
