StarTech OM4 LC–LC 1 m fiber patch cable

Name: Fiber Optic Patch Cable StarTech OM4RLCLC1M
Brand: StarTech
SKU: 11524832
Price: 18.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Fiber Optic Patch Cable StarTech OM4 LC to LC (UPC) 1 m, 50/125µm, Multimode, Uniboot, OFNR, Erika Violet, 40G/100G

StarTech OM4 LC–LC 1 m fiber patch cable Photo 1

StarTech OM4 LC–LC 1 m fiber patch cable Photo 2

StarTech OM4 LC–LC 1 m fiber patch cable Photo 3

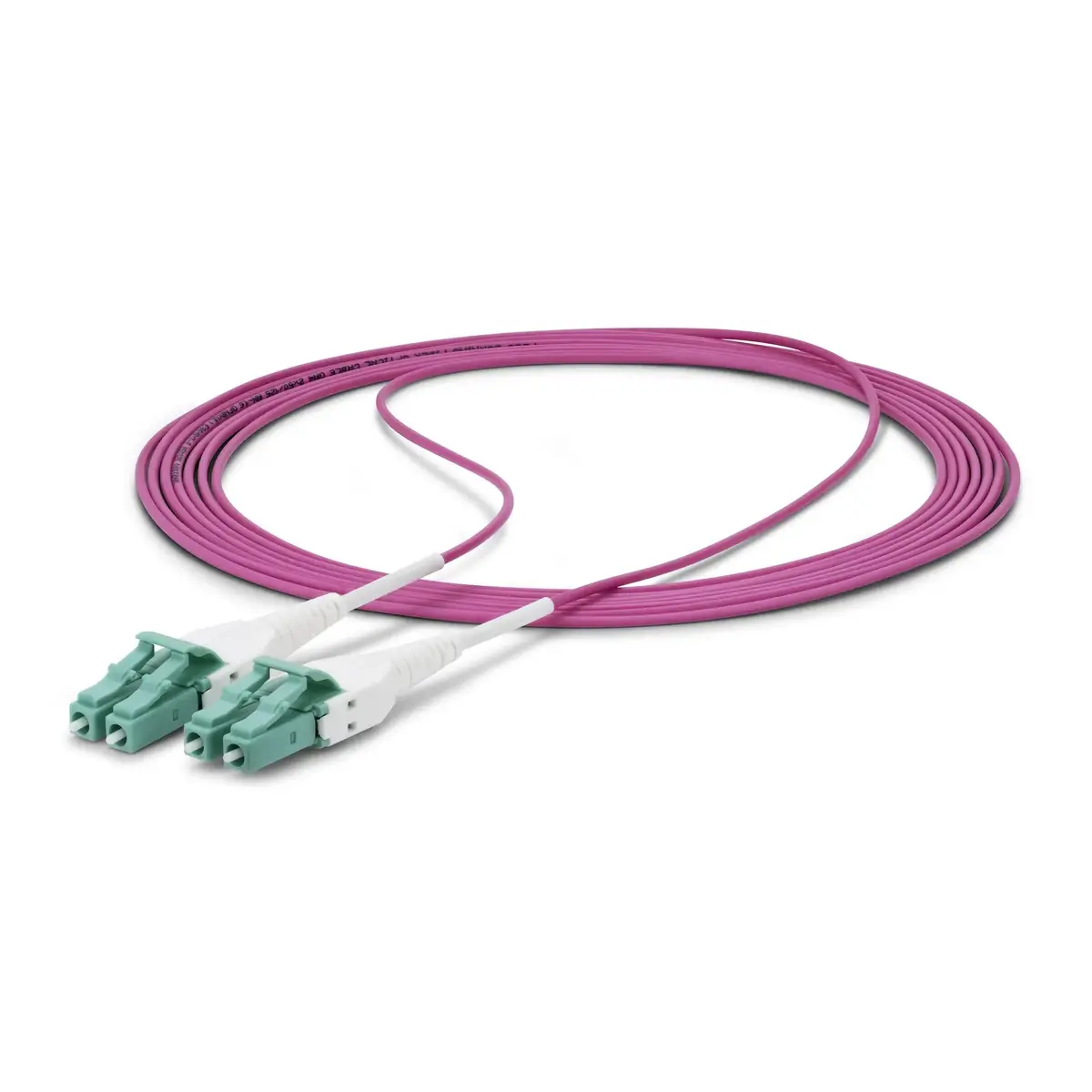

StarTech OM4 LC–LC 1 m fiber patch cable Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

StarTech OM4 multimode fiber optic LC-to-LC patch cable, 1 m length, 50/125µm core, LC (UPC) duplex connectors, Uniboot design and OFNR riser rating. Supports high-speed 40G/100G links, LOMMF/VCSEL environments and full-duplex connections for data centers, switches and server connections.

Available at price 18.99 €: 39 pcs.

Total available for order: 156 pcs.

Warranty: 2 Years

SKU: 11524832

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 24.49 €: 39 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech OM4 LC to LC (UPC) 1 m multimode fiber patch cable in Erika Violet provides color-coded identification for OM4 installations and supports high-speed 40G/100G links. The uniboot LC/LC duplex design reduces connector bulk for dense installations while the OFNR riser-rated jacket meets flame-spread requirements for riser spaces in commercial buildings. Built with 50/125µm laser-optimized multimode fiber, LC UPC polished endfaces, and precision ceramic ferrules, the cable is intended for reliable full-duplex connectivity in data centers and networking equipment.

Advantages

The Erika Violet OM4 jacket conforms to TIA color standards to avoid confusion with Aqua OM3/OM4 cables and simplifies cable management. Laser-optimized multimode fiber and UPC-polished LC connectors improve insertion and return loss characteristics compared with older PC-polished terminations. The compact uniboot construction reduces space usage and improves airflow in high-density racks, while Aramid yarn reinforcement and molded strain reliefs enhance tensile strength and durability. Each cable is individually tested and supplied with test verification for predictable OM4 performance.

Suitable for

40G and 100G data center links and backbone connections
LC-based SFP/SFP+ and QSFP transceiver connections
High-density patch panels and server-to-switch fiber runs

When it may not be suitable

This multimode OM4 cable is not intended for single-mode networks or long-distance single-mode links. It is designed for short-reach VCSEL/LED environments (850 nm / 1300 nm) and may not be appropriate where single-mode fiber or different connector types are required.

Key specifications

Fiber type: Multimode 50/125 µm (OM4)
Length: 1 m (3.3 ft)
Connectors: LC to LC duplex, uniboot design, UPC polish
Wavelengths: 850 nm / 1300 nm (VCSEL/LED)
Modal bandwidth: 2000 MHz·km at 850 nm
Jacket rating: OFNR (riser), flame-retardant PVC jacket
Cable outer diameter: 1.6 mm
Minimum bend radius: 7.5 mm
Typical attenuation: 3 dB/km (meets TIA guidelines)

How to use

Route the cable through racks or riser spaces avoiding sharp bends that exceed the minimum bend radius. Insert the LC connectors into compatible LC ports on switches, transceivers, or patch panels until they latch. Use the uniboot design to manage duplex pairs neatly in high-density environments. Verify link status on network equipment and consult the supplied test report if troubleshooting insertion loss or performance.

What to consider before purchase

Confirm network equipment supports multimode OM4 fiber and LC (UPC) connectors
Check required cable length and whether a 1 m patch cable fits rack and cabinet layouts
Ensure OFNR riser jacket meets your building’s fire-code requirements for riser spaces

Usage recommendations

Use this 1 m OM4 LC-to-LC uniboot cable for short-reach, high-density connections in data centers and riser installations; avoid tight bends and match connector polish and fiber type to your transceivers for optimal 40G/100G performance.

Specifications

Cable type:: OFNR
Cable length:: 1 m
Connector 1:: LC
Connector 2:: LC
Weight:: 0.0318 kg
Product colour:: Violet

All features

Full duplex:: Yes
Data transfer rate:: 100 Gbit/s
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Bending radius:: 7.5 mm
Wavelengths supported:: 1300, 850
Fibre optic type:: OM4
Connector polish type:: PC

Features

Cable length:: 1 m
Cable type:: OFNR
Connector 1:: LC
Connector 2:: LC
Product colour:: Violet
Jacket material:: Polyvinyl chloride (PVC)
Connector 1 gender:: Male
Connector 2 gender:: Male
Cable shape:: Round

Other features

Cable diameter:: 1.6 mm

Weight & dimensions

Weight:: 0.0318 kg

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 31.8 g
Package depth:: 180 mm
Package width:: 230 mm

Logistics data

Master (outer) case height:: 270 mm
Master (outer) case width:: 420 mm
Master (outer) case length:: 420 mm
Products per master (outer) case:: 330 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: RoHS, CE
