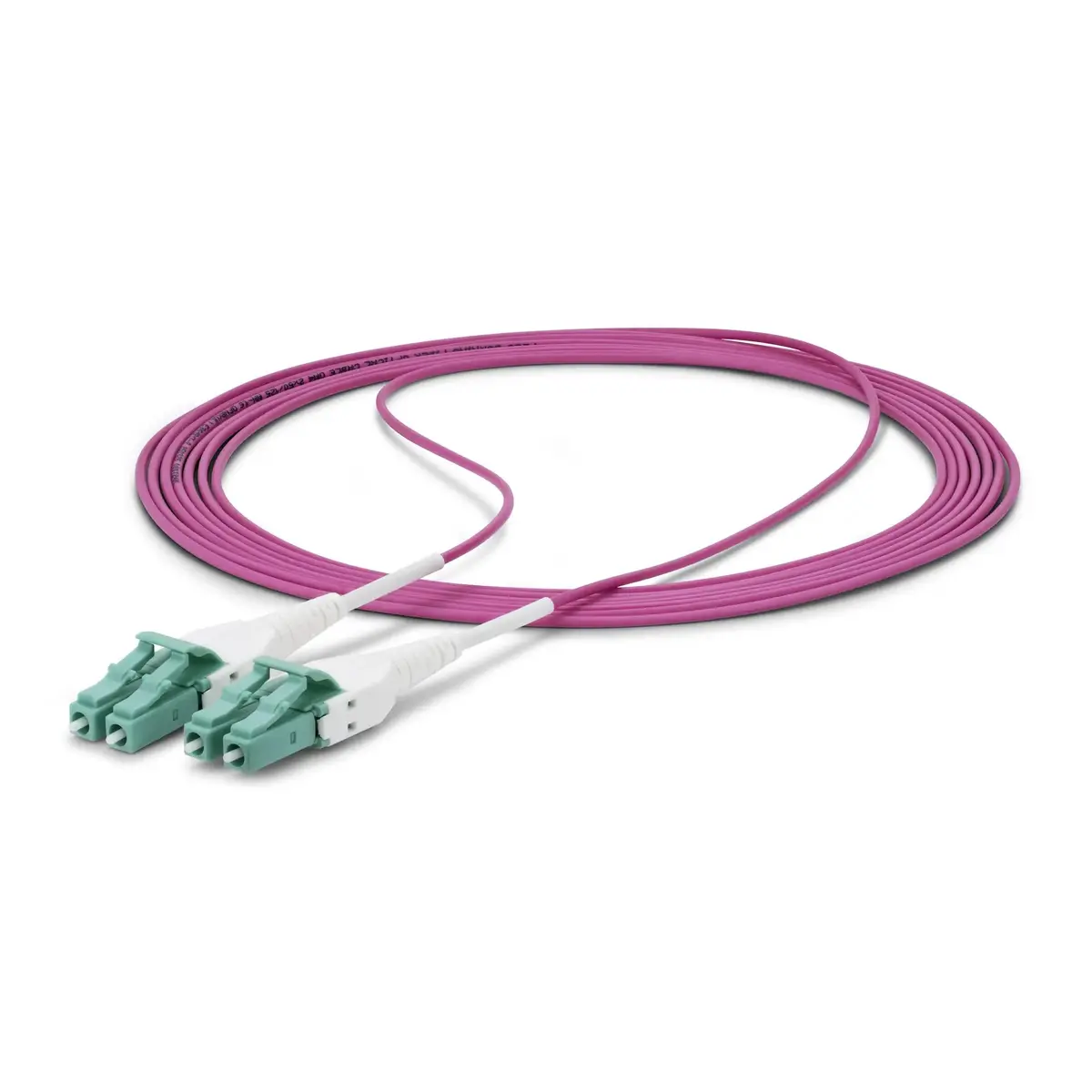

StarTech OM4 LC–LC Uniboot Fiber Cable 7m Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

7 m StarTech OM4 multimode fiber optic patch cable with LC to LC (UPC) uniboot connectors in Erika Violet. OM4 50/125µm fiber supports 40G/100G LOMMF/VCSEL links for data centers and network equipment. OFNR riser‑rated jacket for indoor vertical runs. Full duplex duplex LC connections for high‑speed short‑reach links.

Available at price 31.49 €: 25 pcs.

Total available for order: 100 pcs.

Warranty: 2 Years

SKU: 11546473

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 37.99 €: 25 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech OM4 LC to LC Uniboot 7m OFNR multimode fiber patch cable in Erika Violet provides color-coded OM4 connectivity for data centers and high-density network installations. The 50/125µm OM4 fiber is laser-optimized for 850 nm and 1300 nm VCSEL/LED sources, supporting 40G and 100G short-reach links. The uniboot LC/LC UPC connectors reduce connector bulk and improve cable management, while the OFNR riser-rated PVC jacket limits vertical flame propagation for indoor riser spaces.

Advantages

The Erika Violet jacket follows TIA color standards for OM4, eliminating confusion with Aqua OM3/OM4 cables and simplifying identification in mixed cabling environments. Built with laser-optimized multimode fiber and UPC-polished ceramic ferrules, the cable offers low insertion loss and improved return loss characteristics compared with older PC-polished connectors. Compact uniboot construction and robust strain reliefs make the cable suited for high-density racks and patch panels, and individual testing with a supplied test report ensures consistent OM4 performance.

Suitable for

Data center short-reach 40G and 100G links
High-density patch panels and fiber enclosures
Connections to LC-based SFP/SFP+ and QSFP transceivers
Enterprise SANs and server interconnects

When it may not be suitable

This cable is intended for indoor riser installations and is not rated for plenum or outdoor use; environments requiring plenum-rated cable or direct burial will need a different jacket type. For single-mode long-reach links or applications beyond the OM4 multimode distance and bandwidth limits, a single-mode fiber solution would be more appropriate.

Key specifications

Fiber type: Multimode 50/125µm OM4 (laser-optimized multimode fiber)

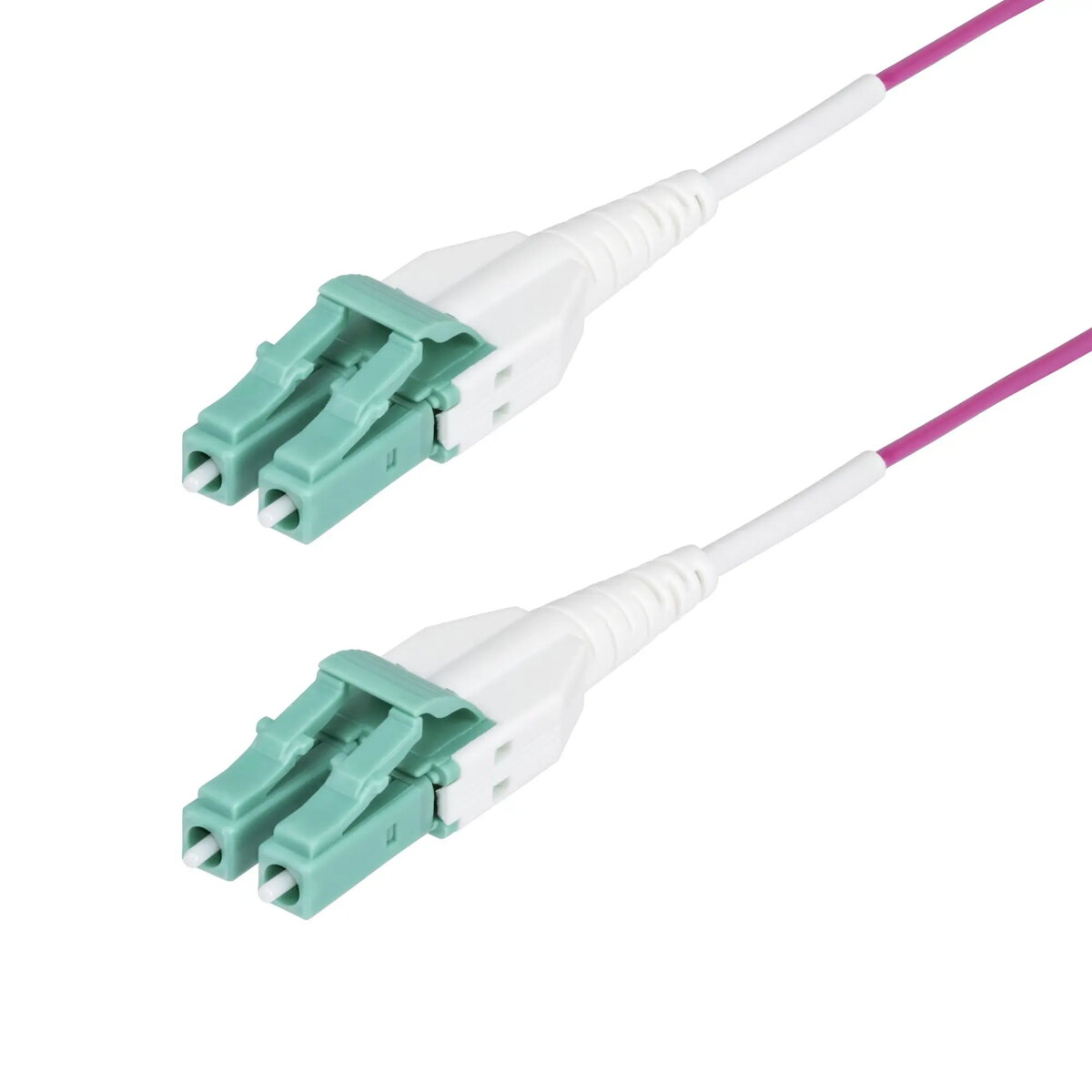

Connectors: LC to LC uniboot, UPC polished ceramic ferrules
Length: 7 m (23 ft)
Bandwidth: Modal bandwidth 2000 MHz·km at 850 nm
Wavelengths: 850 nm / 1300 nm (LED/VCSEL)
Attenuation: 3 dB/km (meets TIA guidance)
Jacket rating/material: OFNR (Riser), PVC
Cable outer diameter: 1.6 mm
Minimum bend radius: 7.5 mm
Color: Erika Violet (TIA OM4 standard)
Transmission: Full duplex multimode, supports 1/10/40/100 Gbps

How to use

Route the 7 m uniboot cable through cable management pathways to avoid tight bends and maintain the minimum bend radius of 7.5 mm. Insert the LC connectors firmly into matching LC ports on switches, transceivers, or patch panels until they click. For high-density installations, the uniboot design allows two fibers in a single connector footprint; ensure correct polarity and that LC connector dust caps are removed before connection. Follow standard fiber handling practices: avoid kinking, protect end faces from contamination, and inspect/clean connectors with appropriate fiber cleaning tools before insertion.

What to consider before purchase

Verify that OM4 multimode fiber meets the required link distance and bandwidth for your 40G/100G application.
Confirm that an OFNR riser-rated jacket is acceptable for your building code and installation space (not plenum-rated).
Ensure LC connector type (UPC polish) and uniboot form factor are compatible with your transceivers and patch panels.
Check required cable length (7 m) and color-coding needs for your cabling scheme.

Usage recommendations

Maintain the minimum bend radius, keep connectors clean, and use the Erika Violet color to identify OM4 links easily in mixed-cable environments. For critical links, retain the cable test report and follow manufacturer testing procedures to verify insertion loss and performance.

Specifications

Cable type:: OFNR
Cable length:: 7 m
Connector 1:: LC
Connector 2:: LC
Weight:: 0.034 kg
Product colour:: Violet

All features

Full duplex:: Yes
Data transfer rate:: 100 Gbit/s
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Bending radius:: 7.5 mm
Wavelengths supported:: 850, 1300
Fibre optic type:: OM4
Connector polish type:: PC

Features

Cable length:: 7 m
Cable type:: OFNR
Connector 1:: LC
Connector 2:: LC
Product colour:: Violet
Jacket material:: Polyvinyl chloride (PVC)
Connector 1 gender:: Male
Connector 2 gender:: Male
Cable shape:: Round

Other features

Cable diameter:: 1.6 mm

Weight & dimensions

Weight:: 0.034 kg

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 31.7 g
Package depth:: 180 mm
Package width:: 230 mm

Logistics data

Master (outer) case height:: 270 mm
Master (outer) case width:: 420 mm
Master (outer) case length:: 420 mm
Products per master (outer) case:: 300 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: CE, RoHS
