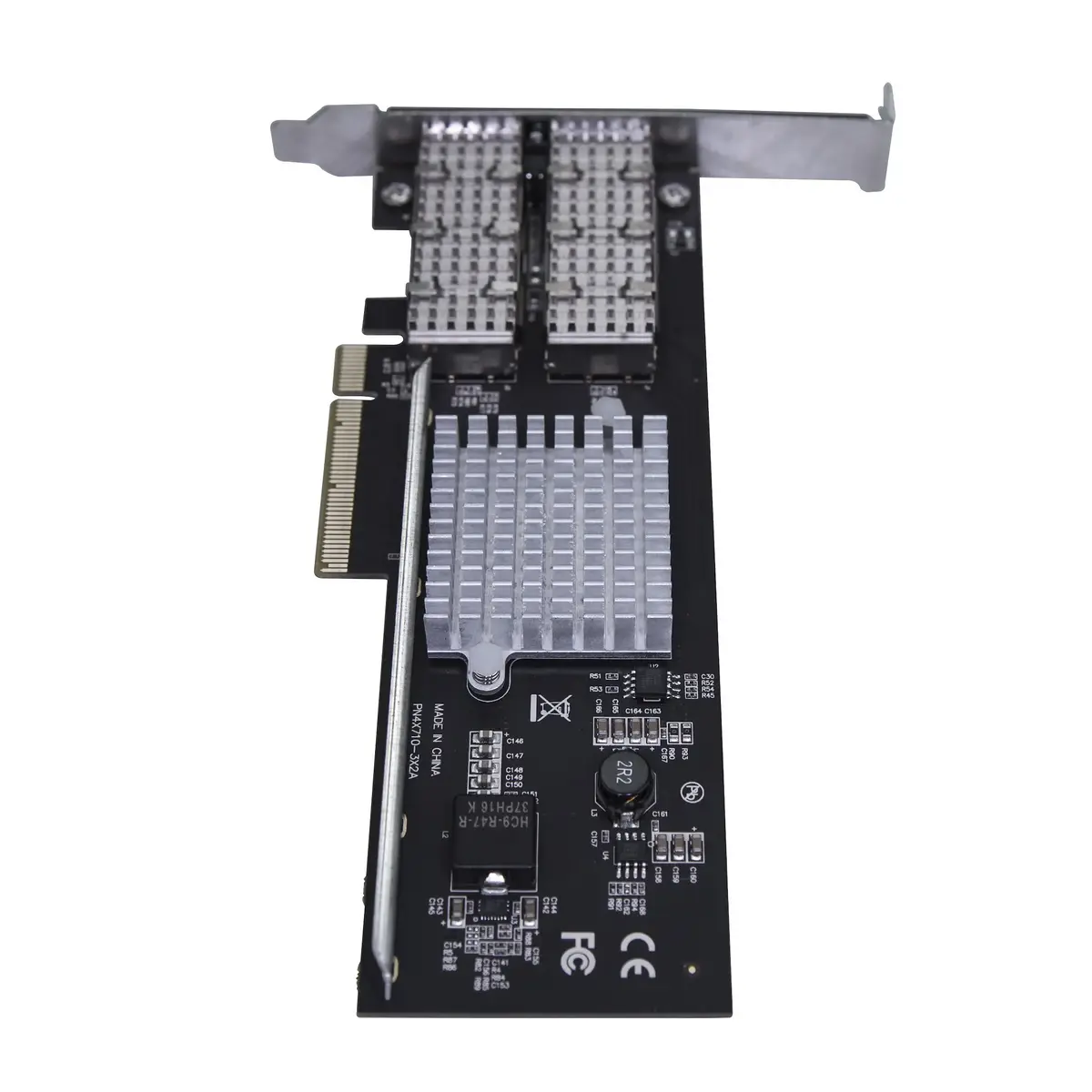

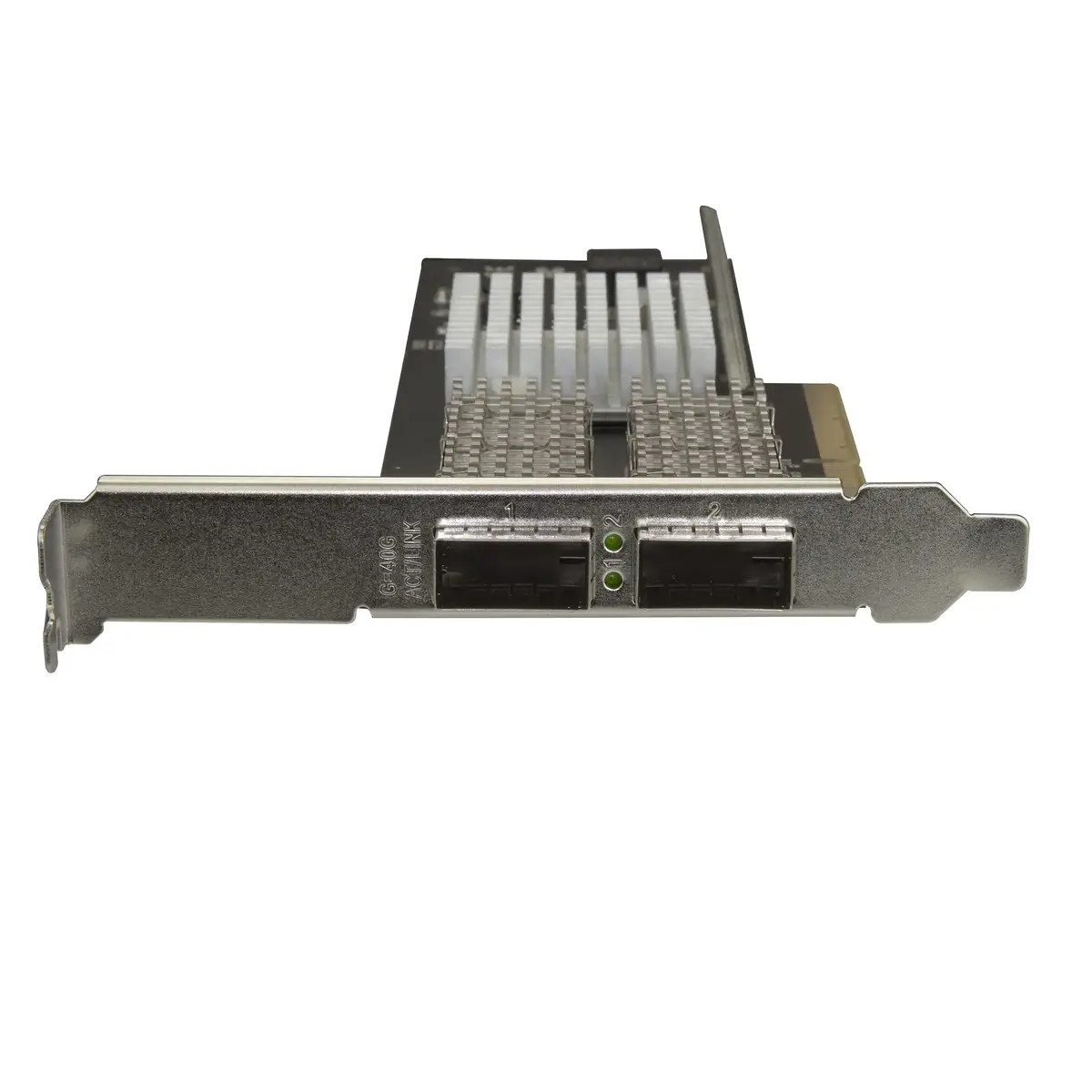

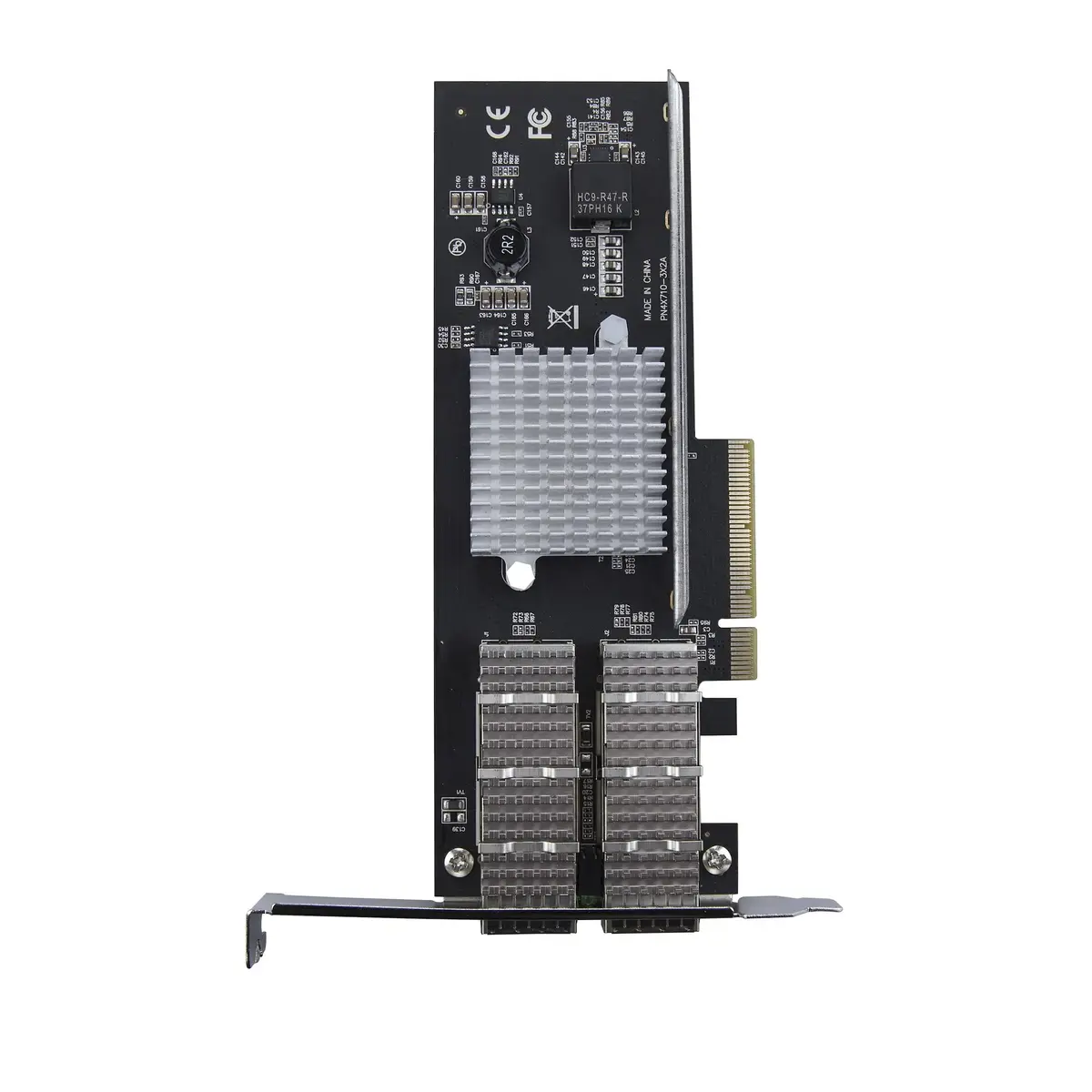

StarTech PEX40GQSFDPI Dual Port 40G QSFP+ Network Card with Intel XL710 Chipset PCI Express Fiber Optic Server NIC

Master (outer) case height:

320 mm

Master (outer) case width:

420 mm

Component for: What this product is used as a part of (component for).

PC/Server

Master (outer) case length:

440 mm

Products per master (outer) case:

40 pc(s)

Harmonized System (HS) code:

85176990

Sustainability compliance:

Yes

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS, CE

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Fiber

Host interface: Interface that enables a host controller to communicate with a driver.

PCI Express

Internal: The product is built in.

Yes

Fiber ports quantity: The number of sockets (ports) for fibers (cables).

2

Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

QSFP+

PCI version:

3.0

Bandwidth

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

40000 Mbit/s

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.

Yes

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3x, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Intel - XL710-BM2

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

No

Flow control support:

Yes

Jumbo frames support:

Yes

Fiber ethernet cabling technology:

40GBASE-SR4, 40GBASE-LR4

VLAN tagging:

Yes

Jumbo frames:

9000

Performance

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 8 x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 7 Home Premium x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 7 Home Premium, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Y

Server operating systems supported:

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Design

LED indicators:

Link, Activity

Product colour: The colour e.g. red, blue, green, black, white.

Black

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.127 kg

Package weight: Weight of the packaged product.

212 g

Height: The measurement of the product from head to foot or from base to top.

21 mm

Width: The measurement or extent of something from side to side.

121 mm

Depth: The distance from the front to the back of something.

181 mm

Package depth: The distance from the front to the back of the packaging.

209 mm

Package height: The distance from the top to the bottom of the packaging.

41 mm

Package width: The distance from one side of the packaging to the other.

145 mm

Operational conditions

Operating relative humidity (H-H):

5 - 95

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 85

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 57

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Low-profile bracket:

Yes
