Fiber Optic Cable StarTech.com SMLCSC-OS2-5M

Name: StarTech.com 5m LC to SC SMLCSC-OS2-5M
Brand: StarTech
SKU: 10915023
Price: 26.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

StarTech.com 5m LC to SC OS2 Single Mode Duplex Fiber Optic Cable 9/125µm

Fiber Optic Cable StarTech.com SMLCSC-OS2-5M Photo 1

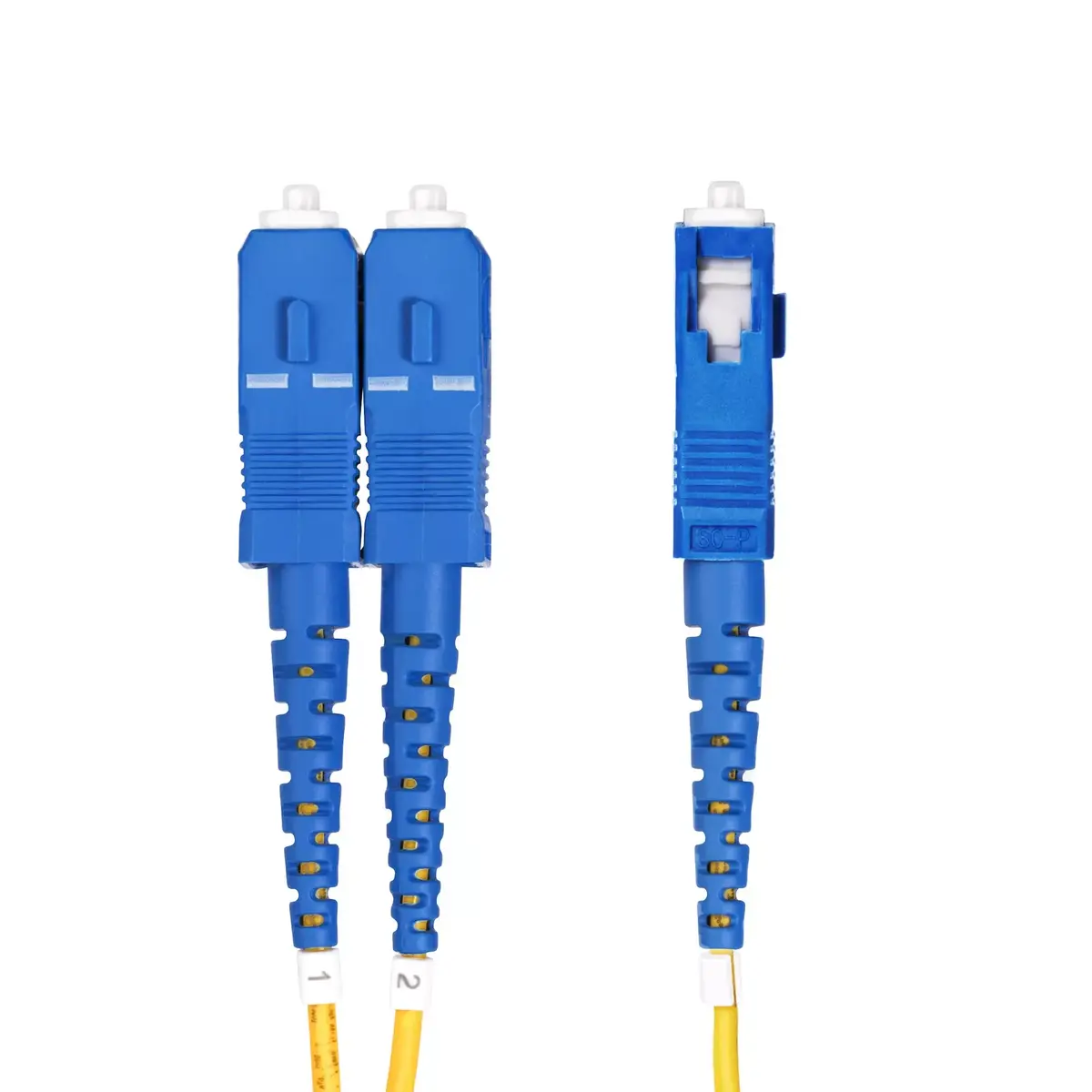

Fiber Optic Cable StarTech.com SMLCSC-OS2-5M Photo 2

Fiber Optic Cable StarTech.com SMLCSC-OS2-5M Photo 3

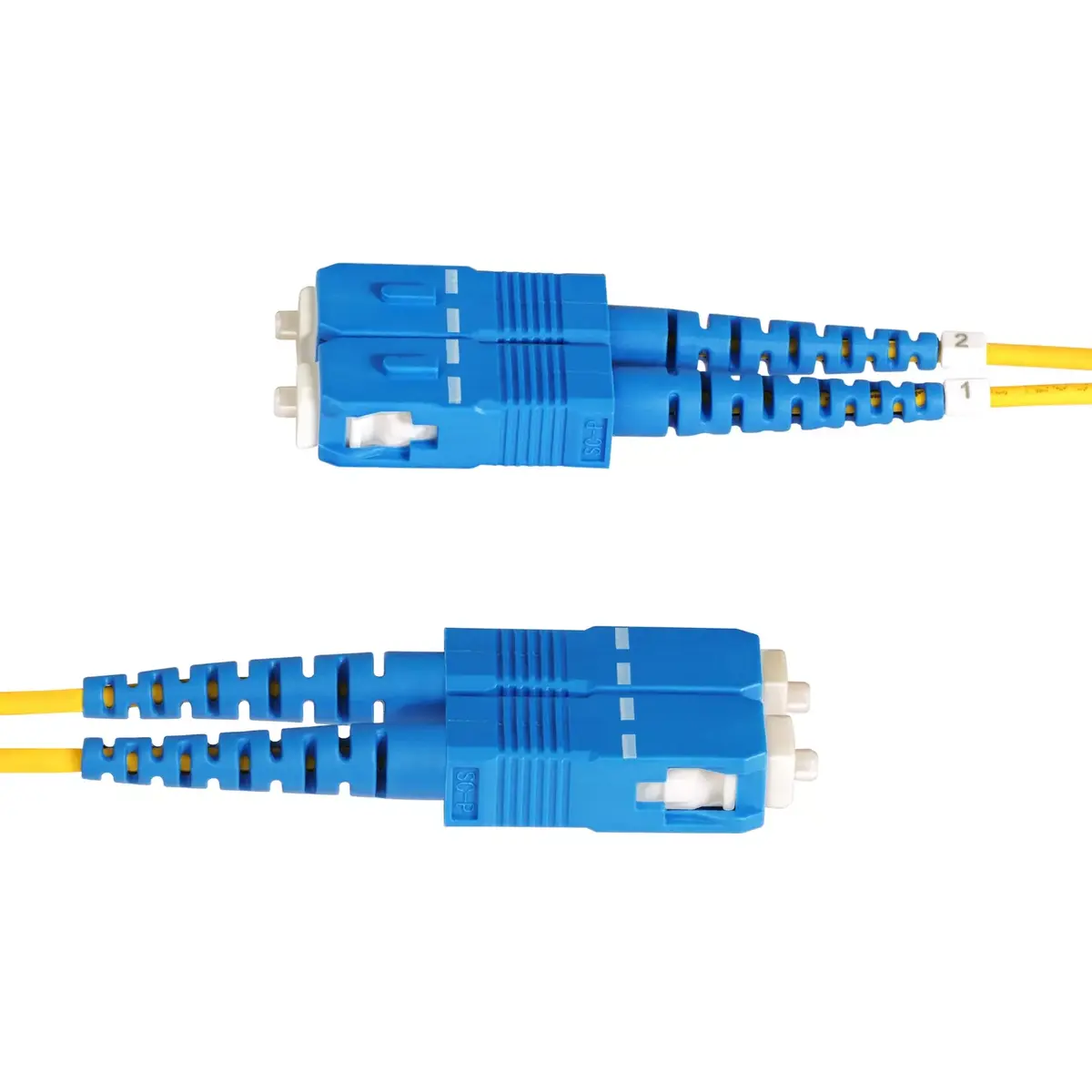

Fiber Optic Cable StarTech.com SMLCSC-OS2-5M Photo 4

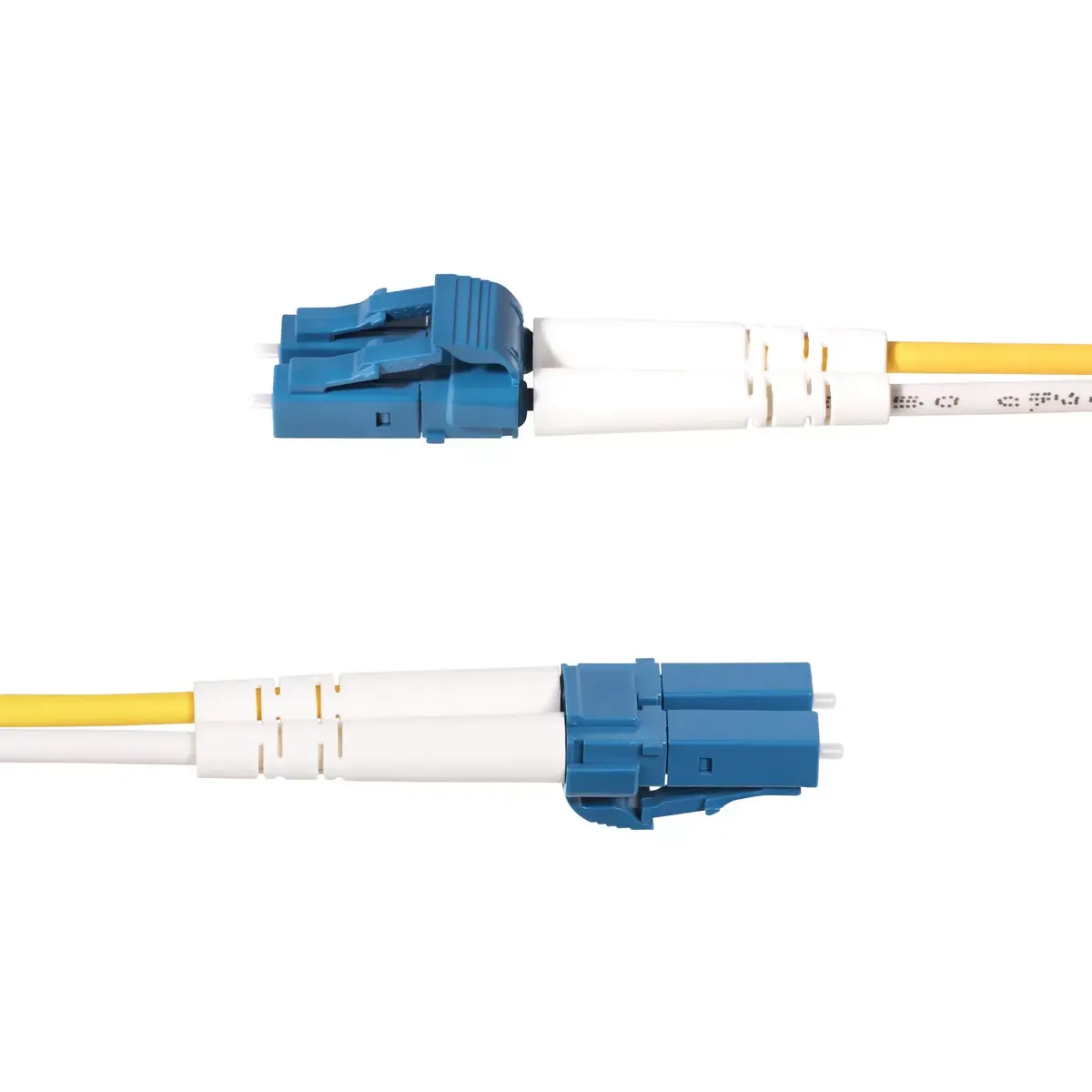

Fiber Optic Cable StarTech.com SMLCSC-OS2-5M Photo 5

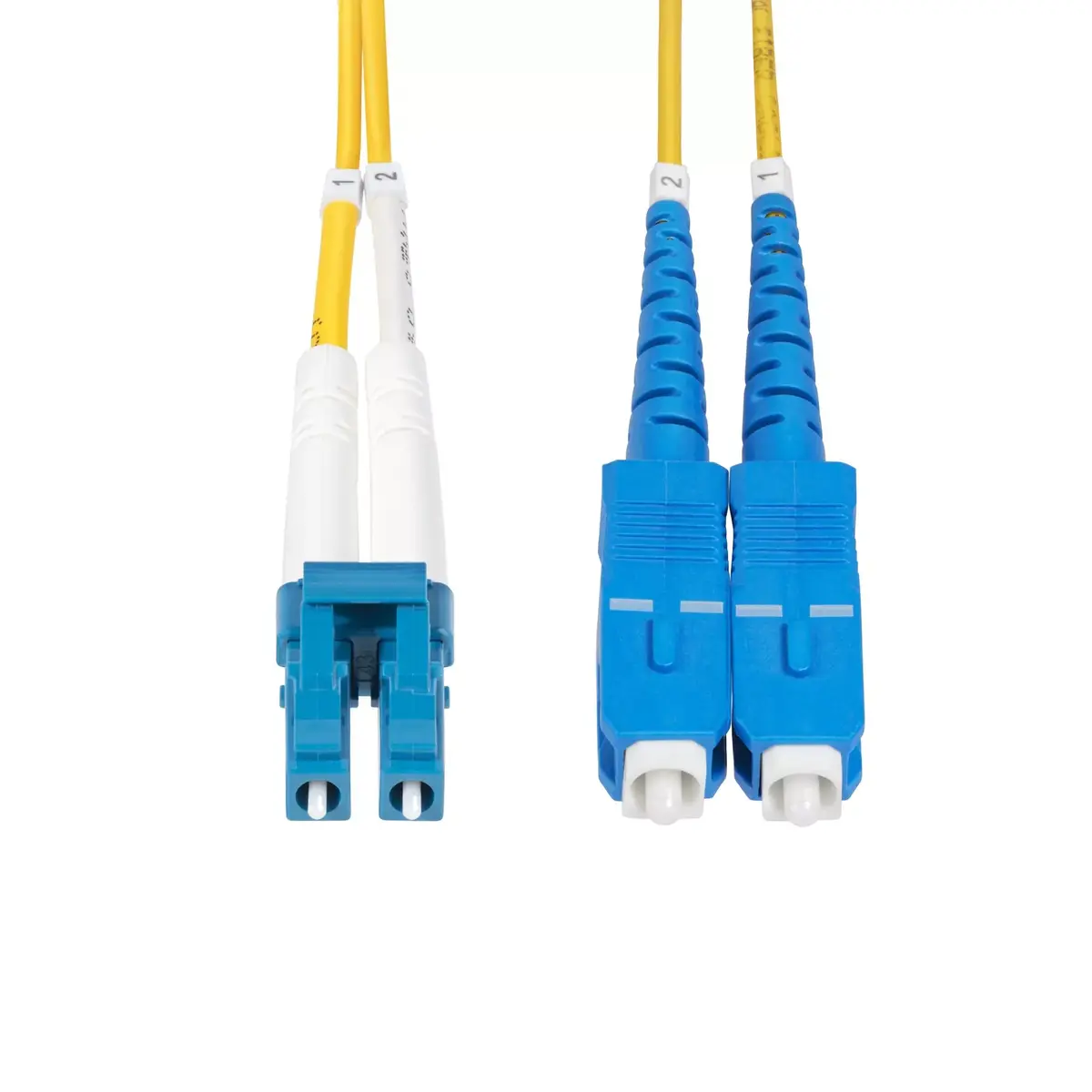

Fiber Optic Cable StarTech.com SMLCSC-OS2-5M Photo 6

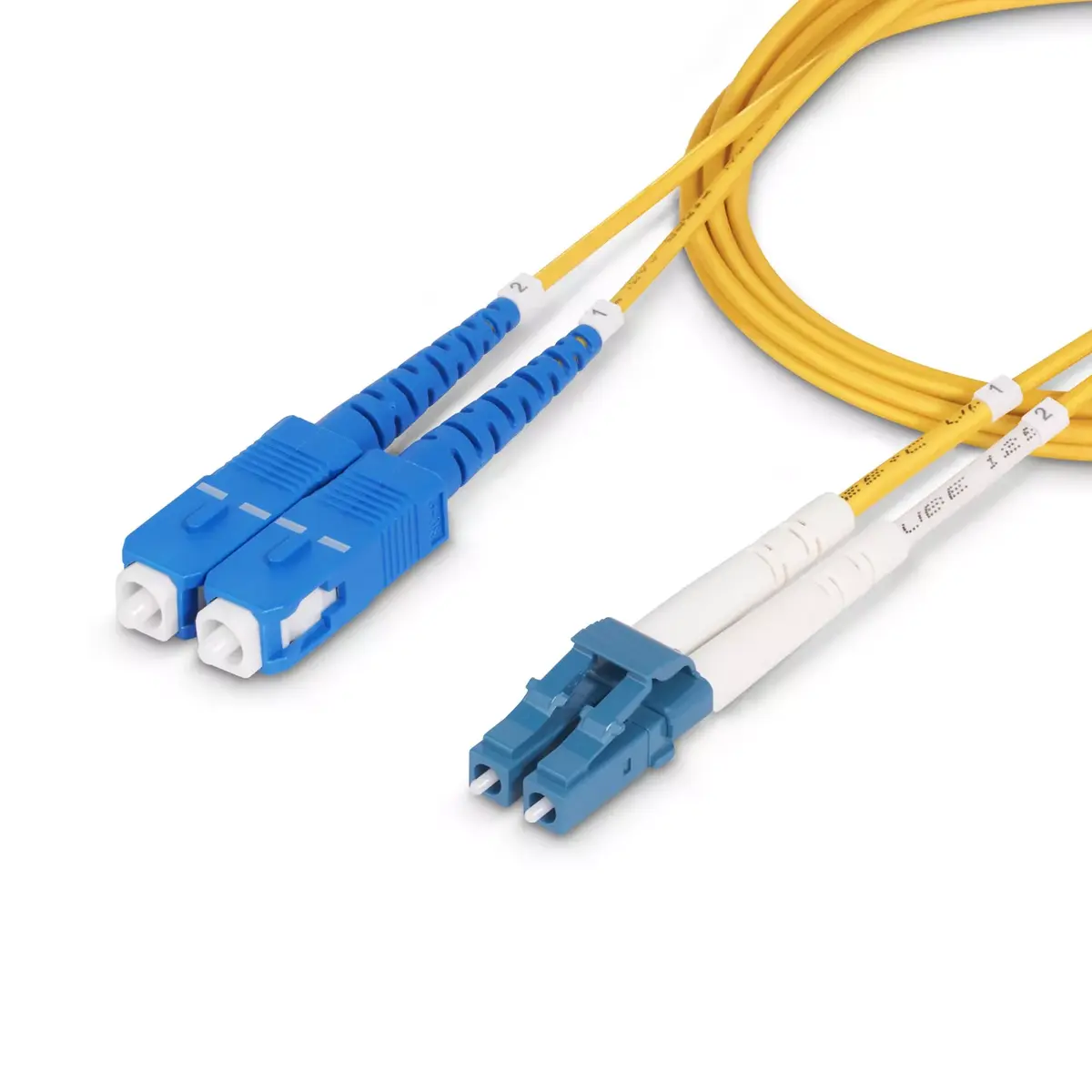

Fiber Optic Cable StarTech.com SMLCSC-OS2-5M Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The StarTech.com 5m LC to SC OS2 Fiber Optic Cable features a 9/125µm core diameter, is laser optimized, and supports 10G speeds. It is designed for full duplex communication and is bend insensitive, ensuring low insertion loss for reliable data transmission.

Available at price 26.99 €: 10 pcs.

Total available for order: 20 pcs.

Warranty: 2 Years

SKU: 10915023

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.06 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech.com 5m LC to SC OS2 Single Mode Duplex Fiber Optic Cable (9/125µm) provides reliable 10G connectivity for CWDM-enabled OS2 fiber networks. This 5-meter, laser-optimized single-mode patch cable features LC to SC terminations, bend-insensitive fiber construction and supports wavelengths across 1260–1625 nm to maintain channel isolation and signal integrity over long distances. Each cable is tested for insertion loss and supplied with a test report.

Advantages

The OS2 fiber cable uses precision ceramic ferrules and UPC-polished LC and SC endfaces to minimize insertion loss (typically below 0.3 dB) and improve return loss compared with older PC polishing. Its 9/125µm core is laser-optimized for 1260–1625 nm operation, and the bend-insensitive design reduces loss from tight bends. The LSZH (Low-Smoke, Zero-Halogen) jacket offers flame-retardant, low-smoke performance for installations in confined or ventilated spaces. The cable meets ITU-T G.652.D / G.657.A1 and IEC 60703-2-50 type B1.3 / B6.a1 industry requirements.

Suitable for

Data center interconnects between servers, switches and storage
10G CWDM links over OS2 single-mode infrastructure
Upgrading or extending existing OS1/OS2 networks
Environments requiring low-smoke, zero-halogen cabling

Key specifications

Length: 5 m
Connector: LC (male) to SC (male), duplex
Fiber type: OS2 single-mode, 9/125 µm
Wavelength support: 1260–1625 nm (laser-optimized)
Typical insertion loss: <0.3 dB (precision ceramic ferrules, UPC polish)
Jacket: LSZH (Low-Smoke, Zero-Halogen)
Standards: ITU-T G.652.D / G.657.A1; IEC 60703-2-50 type B1.3 / B6.a1

How to use

Inspect connectors and cable ends for contamination before installation. Connect the LC termination to the LC port and the SC termination to the SC port, ensuring correct duplex orientation for transmit and receive channels. Route the cable respecting minimum bend radii to preserve the bend-insensitive fiber properties and avoid tight kinks. After installation, verify link performance using appropriate test equipment and the included insertion loss test report.

Usage recommendations

Use this OS2 LC–SC duplex cable for 10G CWDM and single-mode connections in data centers and network rooms; avoid exceeding the specified bend radius and follow handling guidelines to maintain insertion loss performance. Store and install in environments compliant with LSZH requirements where low smoke and halogen-free materials are necessary.

Specifications

Cable length:: 5 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow

All features

Full duplex:: Yes
Data transfer rate:: 10 Gbit/s
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1383, 1260, 1280, 1300, 1310, 1490, 1550, 1590, 1600, 1625
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB
Connector polish type:: PC

Features

Cable length:: 5 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow
Jacket material:: Low smoke zero halogen (LSZH), Polypropylene
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Technical details

Sustainability compliance:: Yes

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 46.5 g
Package depth:: 220 mm
Package height:: 3 mm
Package width:: 200 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 400 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Sustainability

Sustainability certificates:: RoHS

Hide Show all

Instructions

mmo_118343511_1705501107_1246_4161641.pdf

Description

Instructions

mmo_118343511_1705501107_1246_4161641.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	10	08.07.2026 Best delivery	26.99 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH109	10	15.07.2026	27.99 €

26.99 €

Stock: 10

Delivery Date: 08.07.2026 Best delivery

Warehouse: WH354

Available only for legal entities

27.99 €

Stock: 10

Delivery Date: 15.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Fiber Optic Cable StarTech.com SMLCSC-OS2-5M cost, and is it available for purchase?

The price is 26.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 20 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 08.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: cable length, connector 1, connector 2, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Fiber Optic Cable StarTech.com SMLCSC-OS2-5M?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
