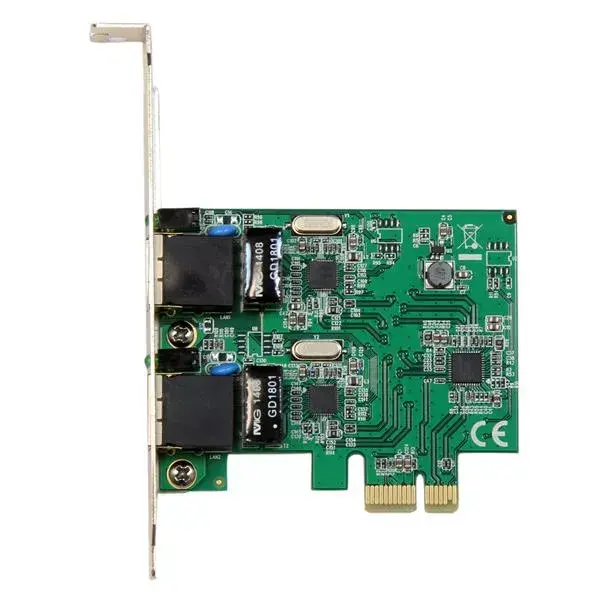

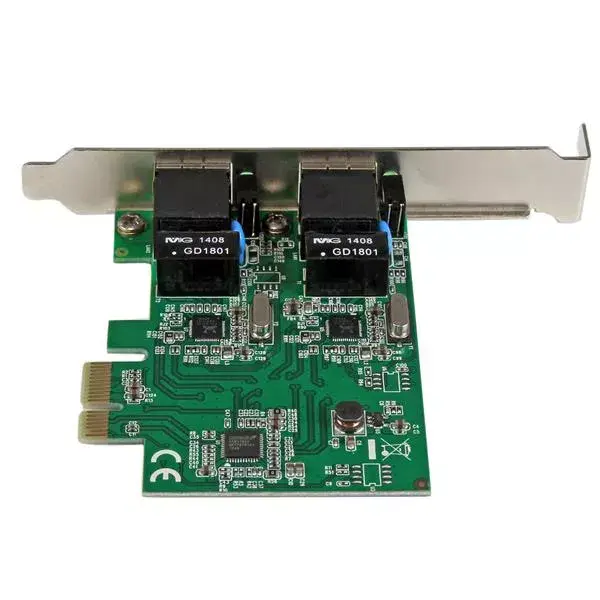

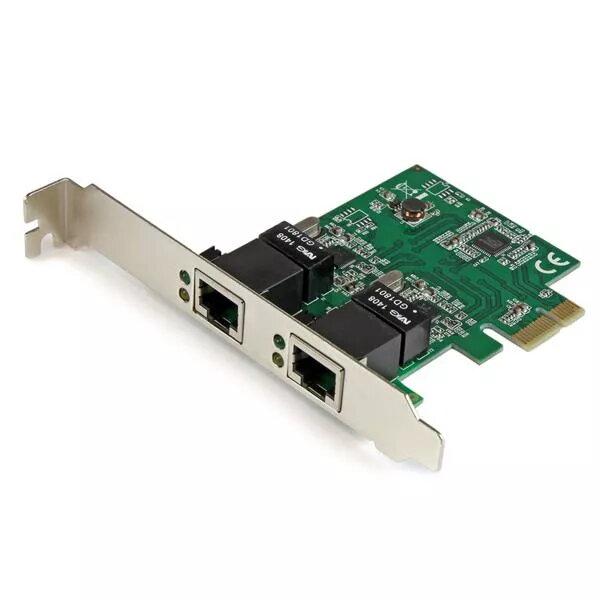

Network Adapter Card StarTech.com ST1000SPEXD4 Dual Port Gigabit PCIe NIC

Harmonized System (HS) code:

85176990

Sustainability certificates:

RoHS

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Ethernet

Host interface: Interface that enables a host controller to communicate with a driver.

PCI Express

Internal: The product is built in.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2

PCI version:

2.0

Bandwidth

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

2000 Mbit/s

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.

Yes

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Cabling technology: Type of cable technology performance.

10/100/1000BaseT(X)

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Realtek - RTL8111E, Asmedia - ASM1182E

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Flow control support:

Yes

Jumbo frames support:

Yes

Ethernet interface type:

Gigabit Ethernet

VLAN tagging:

Yes

Jumbo frames:

9000

Performance

Wake-on-LAN ready:

Yes

Auto MDIX IEEE:

Yes

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Server operating systems supported:

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Design

LED indicators:

Activity, Link

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.051 kg

Package weight: Weight of the packaged product.

142 g

Height: The measurement of the product from head to foot or from base to top.

120 mm

Width: The measurement or extent of something from side to side.

18 mm

Depth: The distance from the front to the back of something.

92.6 mm

Package depth: The distance from the front to the back of the packaging.

143 mm

Package height: The distance from the top to the bottom of the packaging.

30 mm

Package width: The distance from one side of the packaging to the other.

170 mm

Operational conditions

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

0 - 100

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 70

Certificates

Certification:

CE, FCC

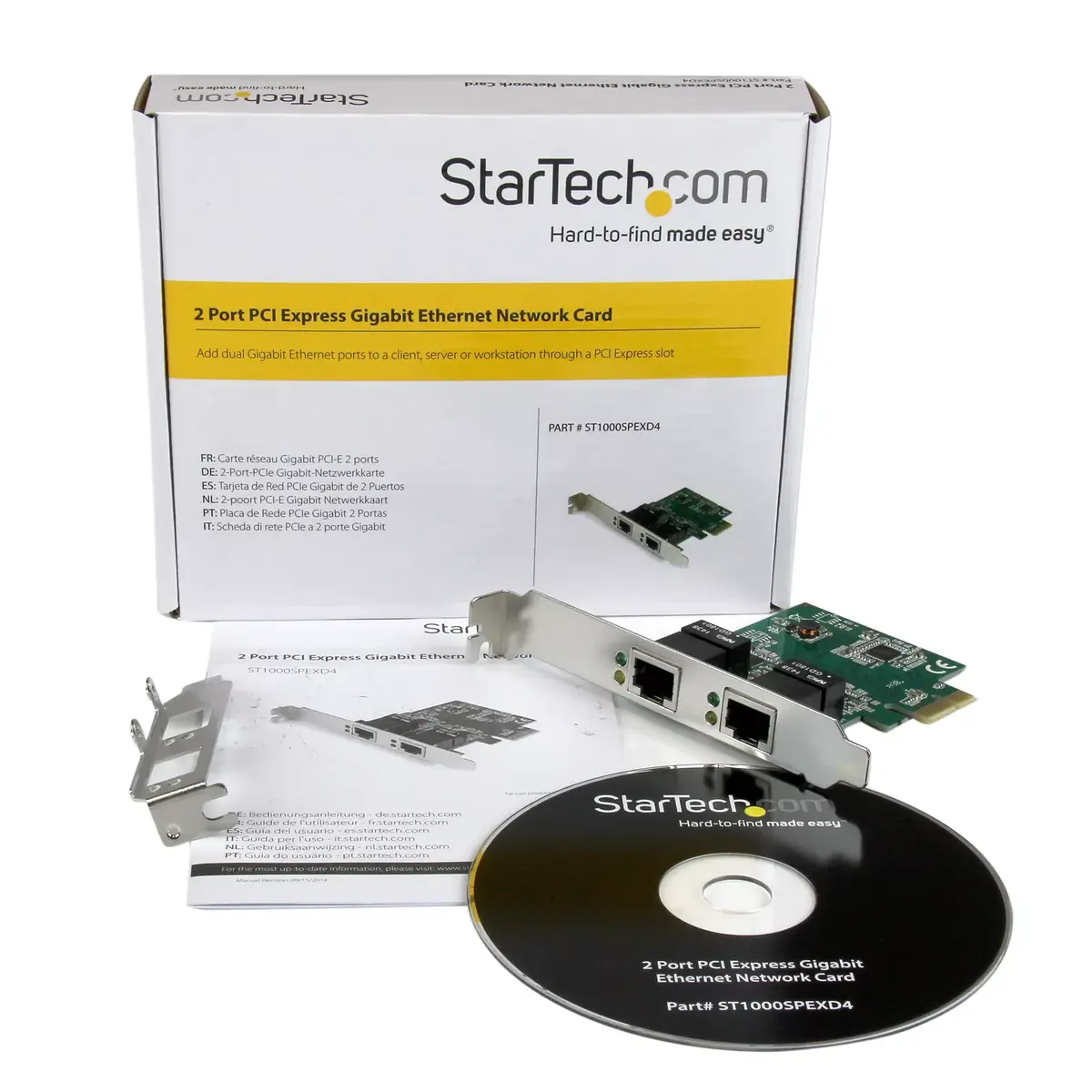

Packaging content

Manual:

Yes

Drivers included:

Yes

Low-profile bracket:

Yes
