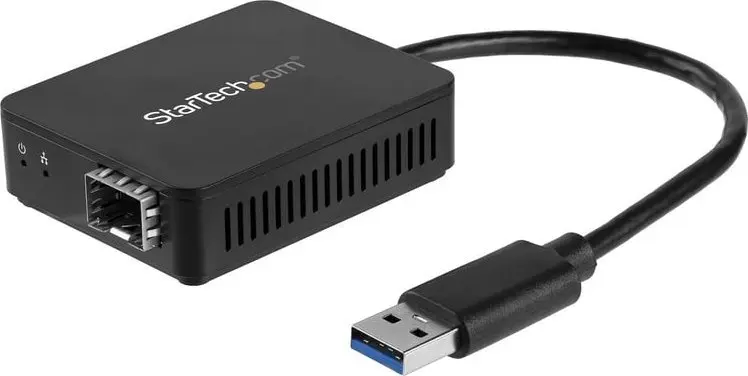

USB 3.0 to Fiber Optic Converter StarTech.com US1GA30SFP Wired USB Gigabit Network Adapter

Master (outer) case height:

355 mm

Master (outer) case width:

310 mm

Master (outer) case length:

590 mm

Products per master (outer) case:

80 pc(s)

Harmonized System (HS) code:

85176990

Sustainability compliance:

Yes

Sustainability certificates:

RoHS, CE

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Fiber

Host interface: Interface that enables a host controller to communicate with a driver.

USB

Internal: The product is built in.

No

Fiber ports quantity: The number of sockets (ports) for fibers (cables).

1

Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

SFP

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

3.2 Gen 1 (3.1 Gen 1)

Bandwidth

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

1000 Mbit/s

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.

Yes

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3z, IEEE 802.1Q

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW

Jumbo frames support:

Yes

Fiber ethernet cabling technology:

1000BASE‑LX, 1000BASE‑SX

VLAN tagging:

Yes

Jumbo frames:

9000

Performance

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Yes

Cable length: How long the cable is.

0.195 m

Wake-on-LAN ready:

Yes

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 7 x64, Windows 7 Professional x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 11, Windows 7 Starter

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Server operating systems supported:

Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019

Design

LED indicators:

Power, Link, Activity

Housing material: What the casing of the product is made of.

Plastic

Product colour: The colour e.g. red, blue, green, black, white.

Black

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.106 kg

Height: The measurement of the product from head to foot or from base to top.

20 mm

Width: The measurement or extent of something from side to side.

141 mm

Depth: The distance from the front to the back of something.

170 mm

Package depth: The distance from the front to the back of the packaging.

265 mm

Package height: The distance from the top to the bottom of the packaging.

30 mm

Package width: The distance from one side of the packaging to the other.

170 mm

Power

USB powered: The device can be powered via a USB connection.

Yes

Operational conditions

Operating relative humidity (H-H):

5 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 60

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes
