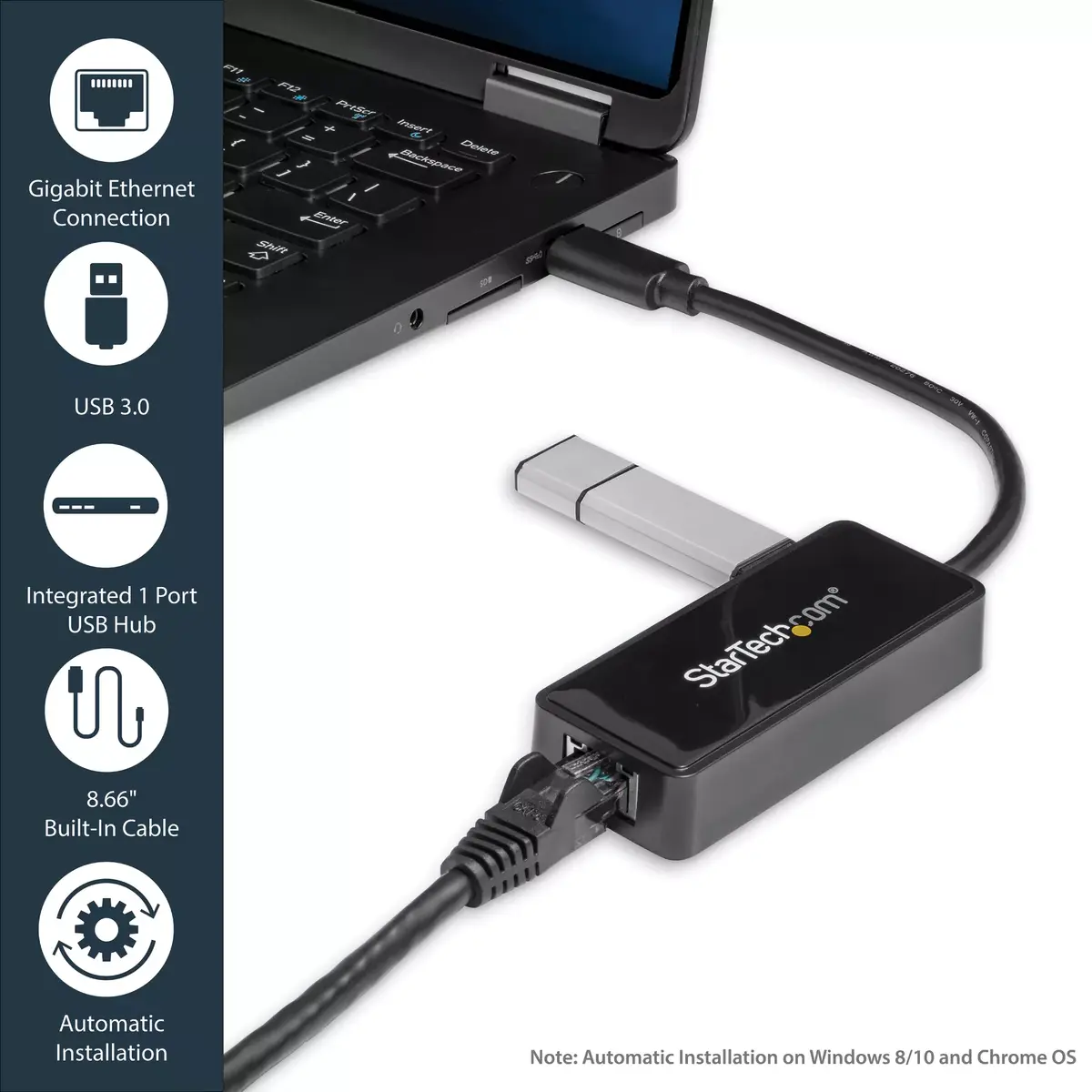

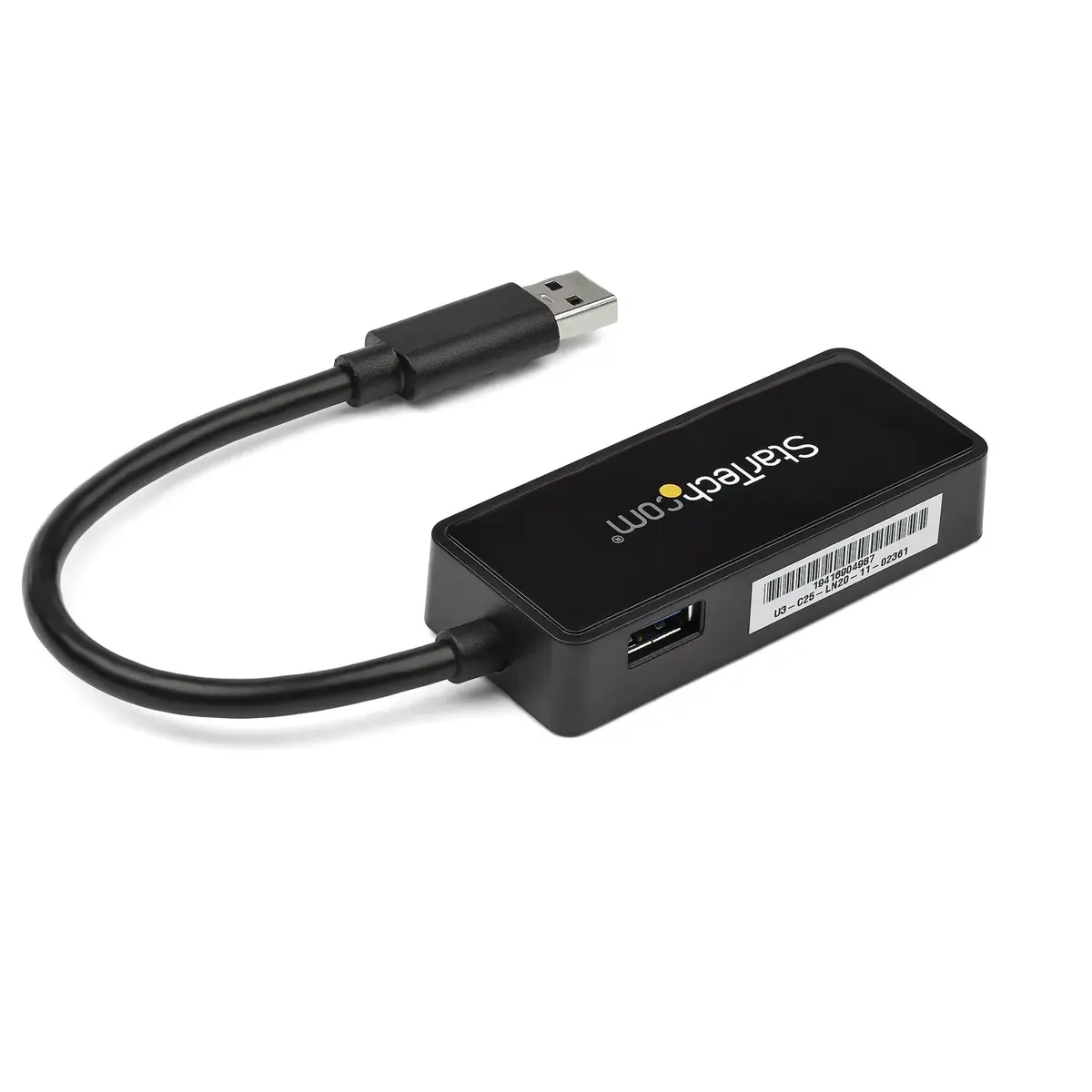

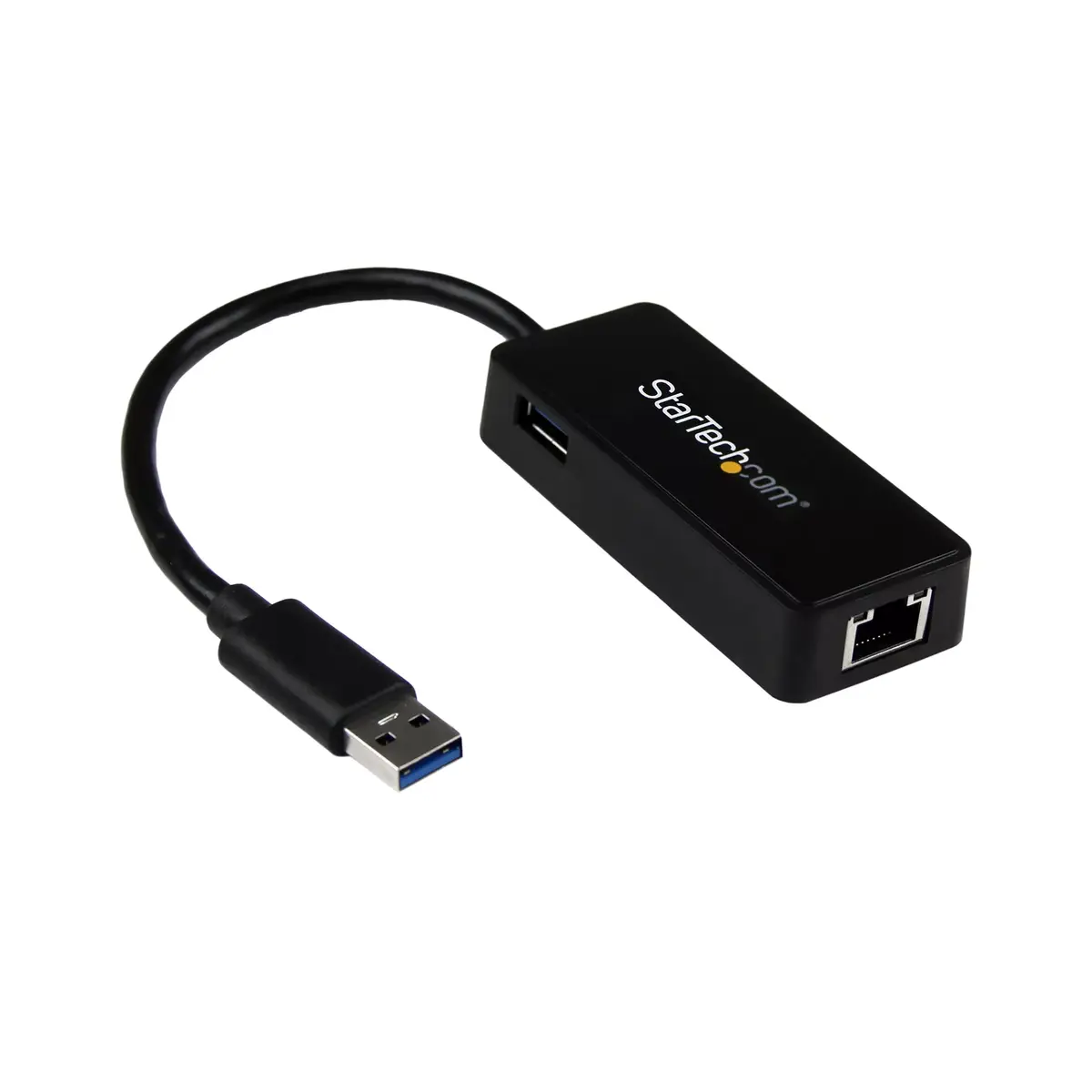

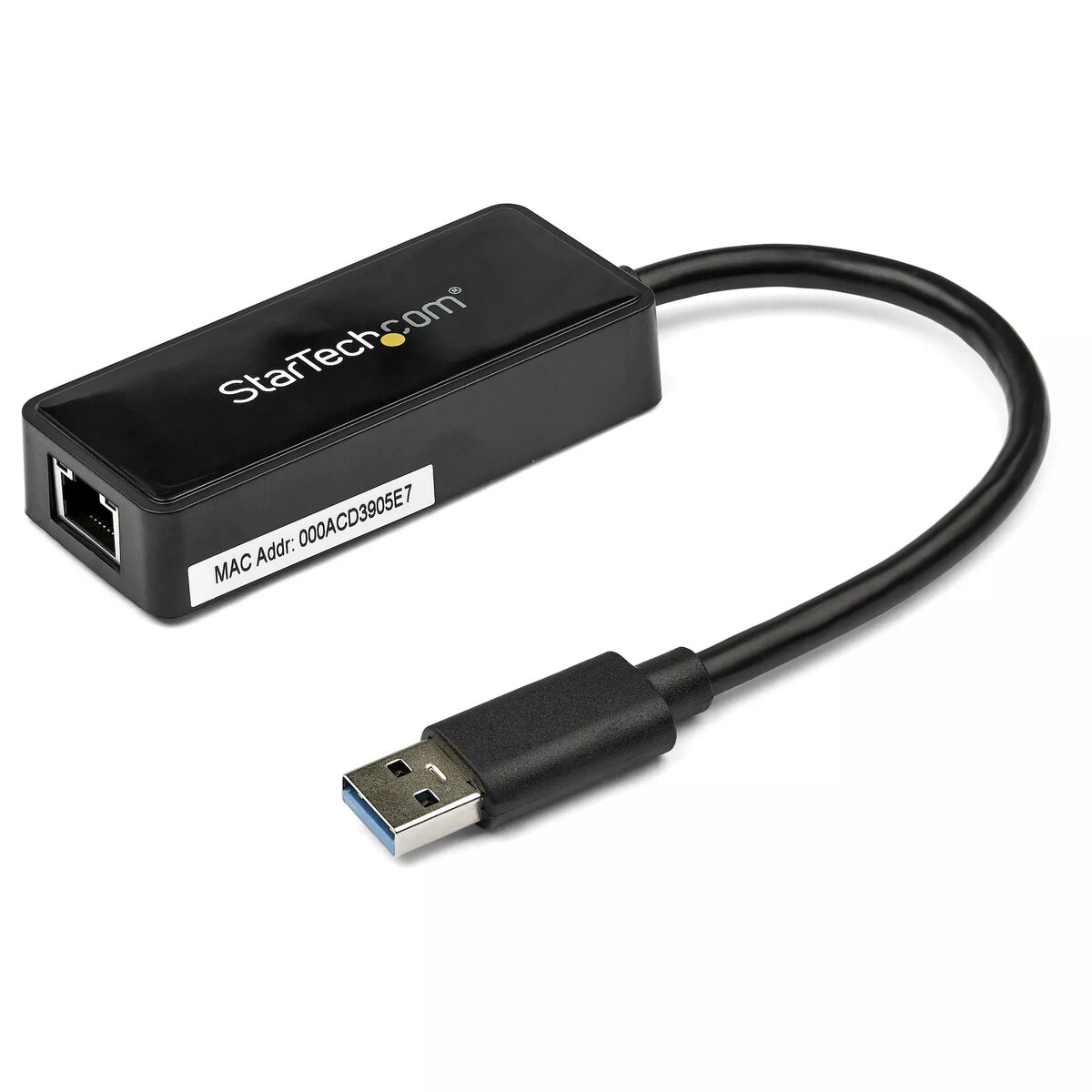

USB 3.0 to Gigabit Ethernet Adapter with Extra USB Port, StarTech USB31000SPTB, 5 Gbps, Black

Internal: The product is built in.

No

Cabling technology: Type of cable technology performance.

10/100/1000BaseT(X)

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

5000 Mbit/s

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Maximum operating distance: The maximum distance from which you can operate the device.

100 m

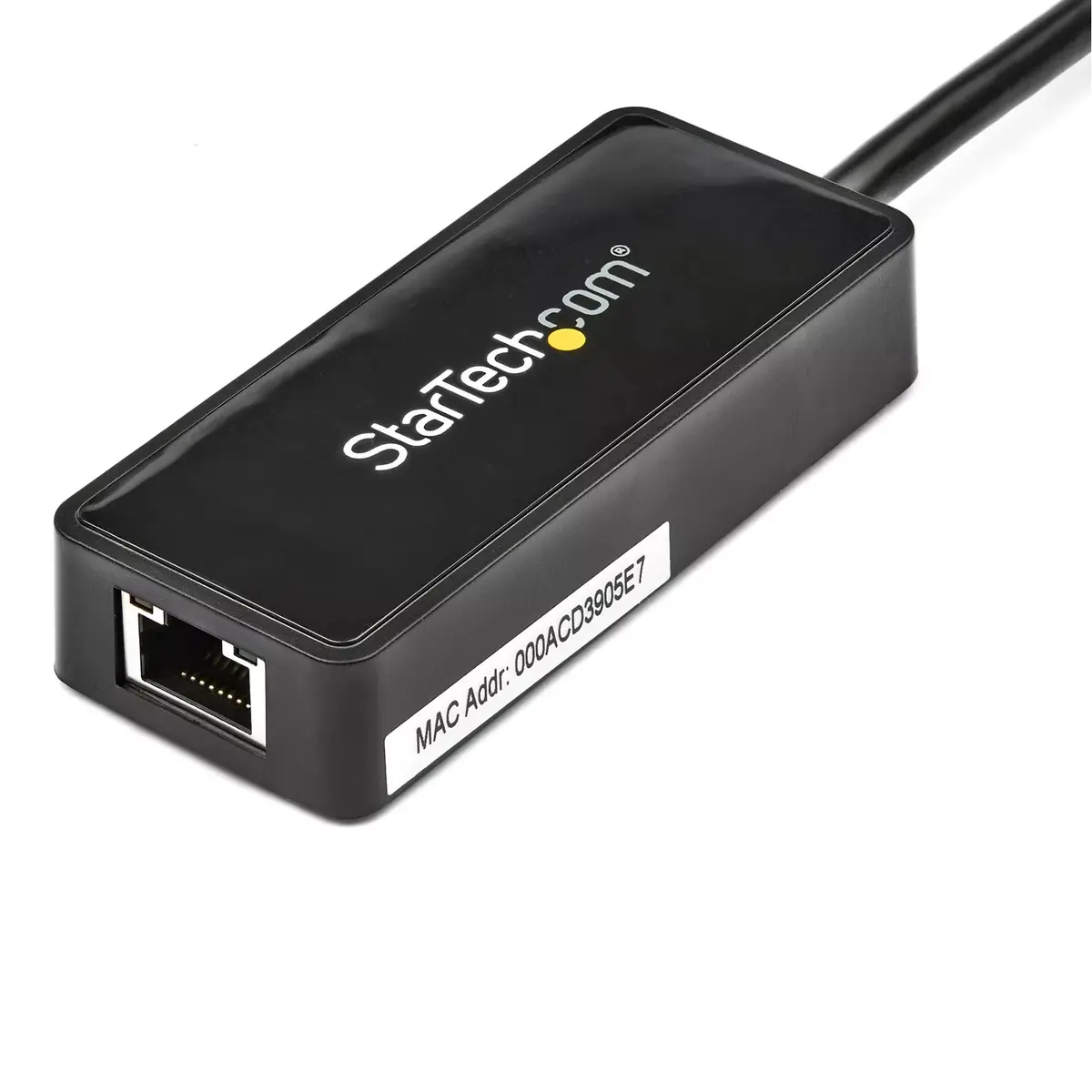

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Jumbo frames support:

Yes

Ethernet interface type:

Fast Ethernet, Gigabit Ethernet

Server operating systems supported:

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

USB data transfer rates:

5000

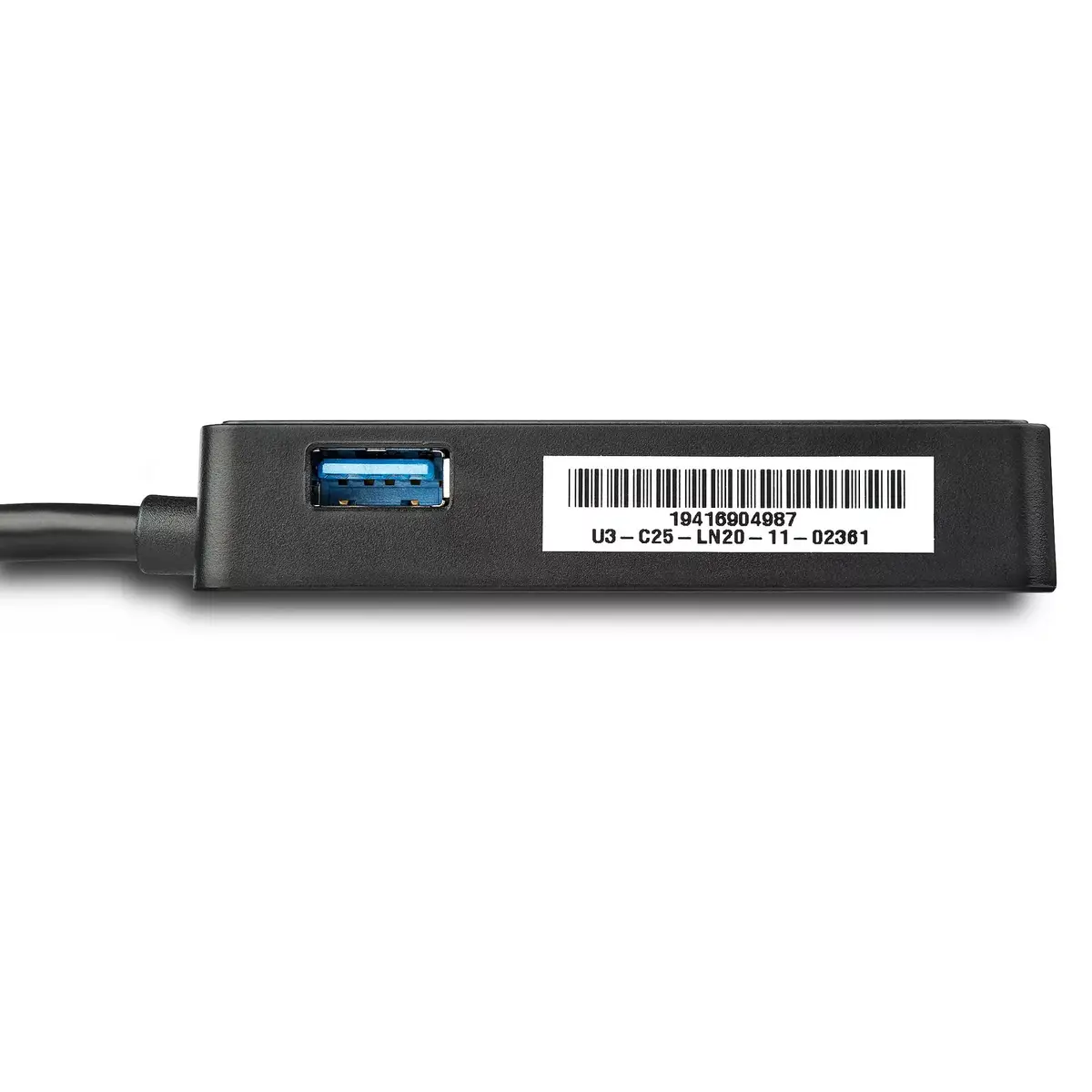

USB ports quantity:

1

VLAN tagging:

Yes

Jumbo frames:

4000

Other features

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Ethernet

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

Logistics data

Products per master (outer) case:

80 pc(s)

Master (outer) case height:

360 mm

Master (outer) case length:

592 mm

Master (outer) case width:

300 mm

Harmonized System (HS) code:

85176990

Technical details

Host interface: Interface that enables a host controller to communicate with a driver.

USB

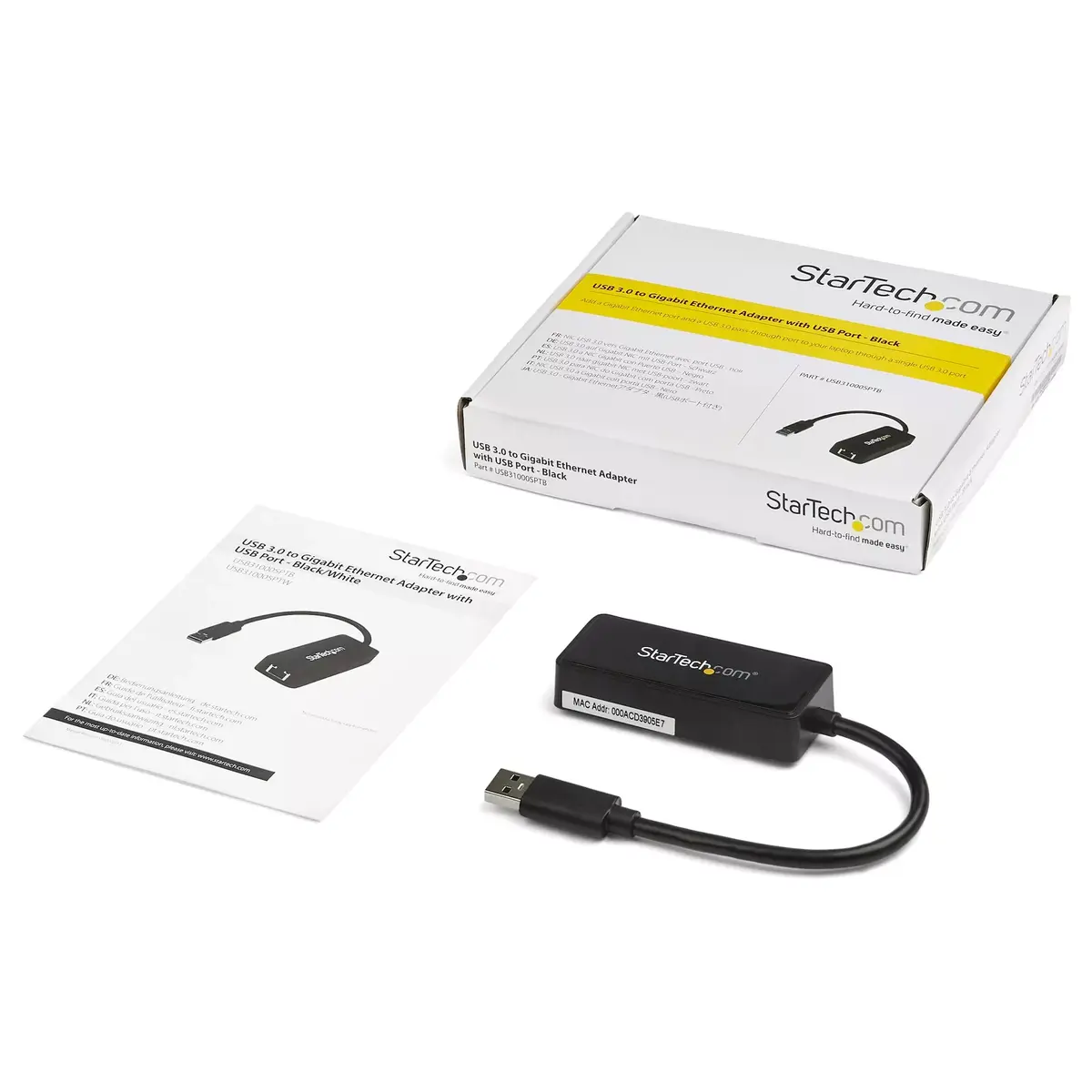

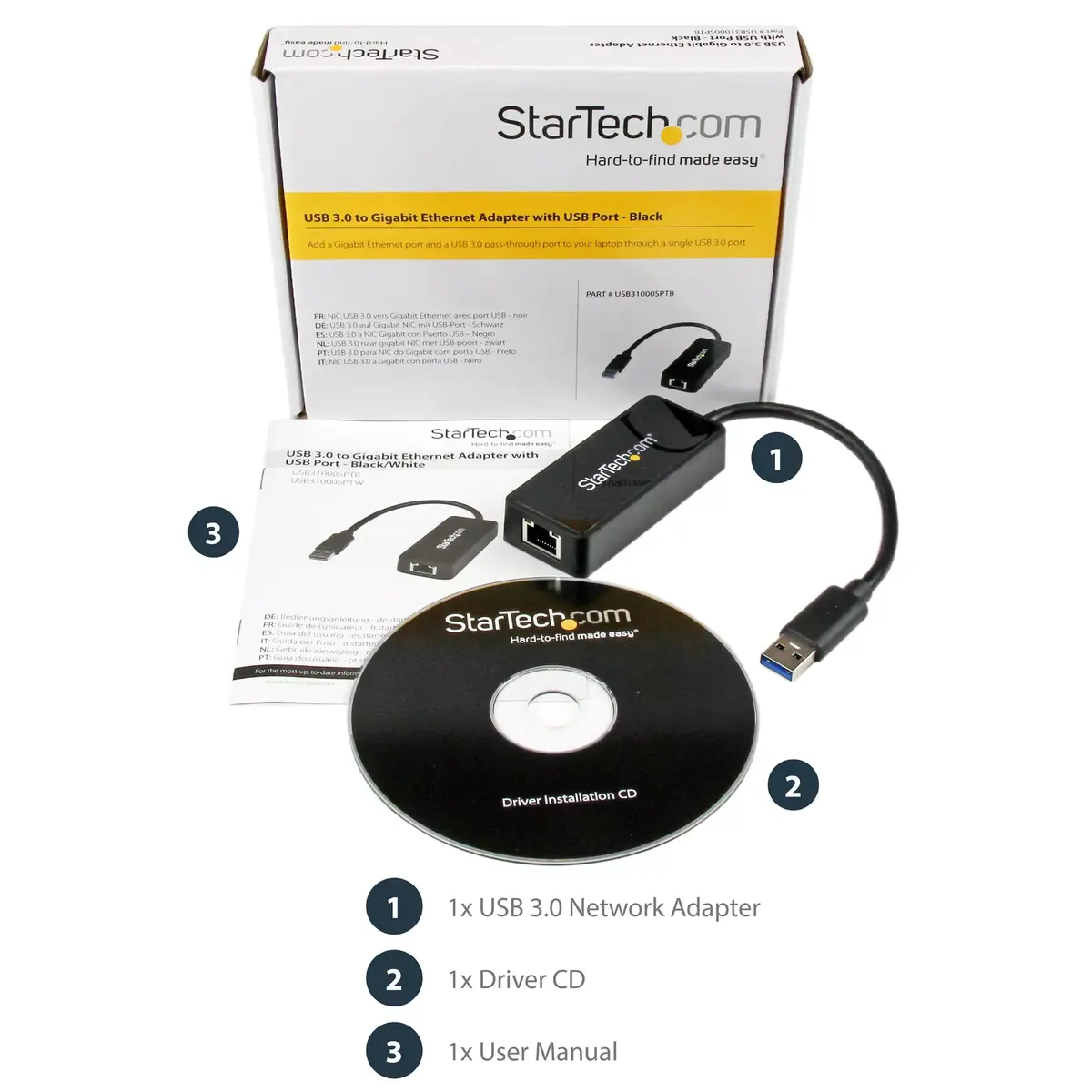

Packaging content

Drivers included:

Yes

Manual:

Yes

Packaging data

Package weight: Weight of the packaged product.

132 g

Package height: The distance from the top to the bottom of the packaging.

30 mm

Package depth: The distance from the front to the back of the packaging.

145 mm

Package width: The distance from one side of the packaging to the other.

172 mm

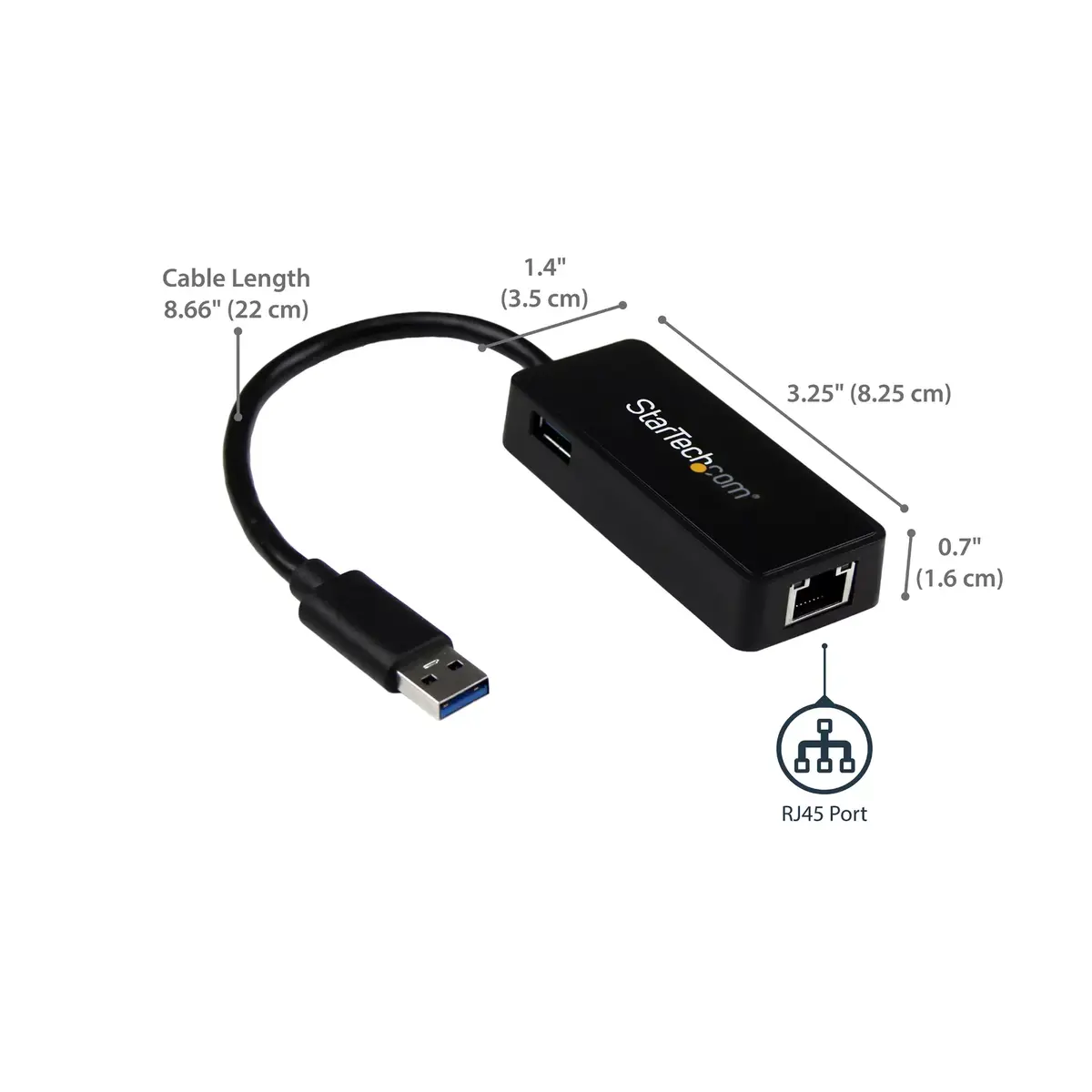

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

17 mm

Depth: The distance from the front to the back of something.

126 mm

Width: The measurement or extent of something from side to side.

35 mm

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.044 kg

Power

USB powered: The device can be powered via a USB connection.

Yes

Sustainability

Sustainability compliance:

Yes

Sustainability certificates:

CE, RoHS

Operational conditions

Operating relative humidity (H-H):

5 - 85

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 50

Features

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Yes

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

ASIX - AX88179, VIA - VL811

Product colour: The colour e.g. red, blue, green, black, white.

Black

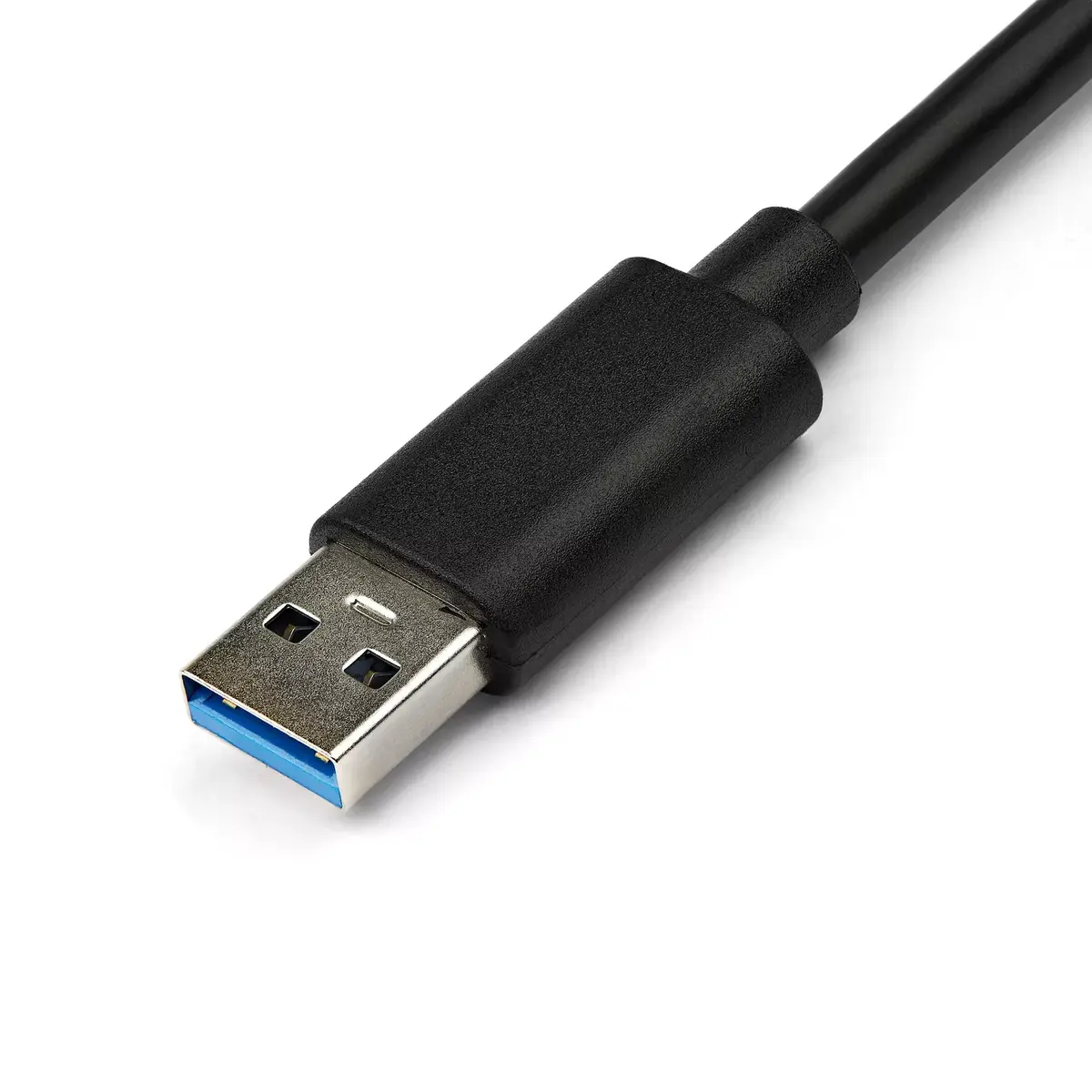

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

3.2 Gen 1 (3.1 Gen 1)

Performance

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.

Yes

Design

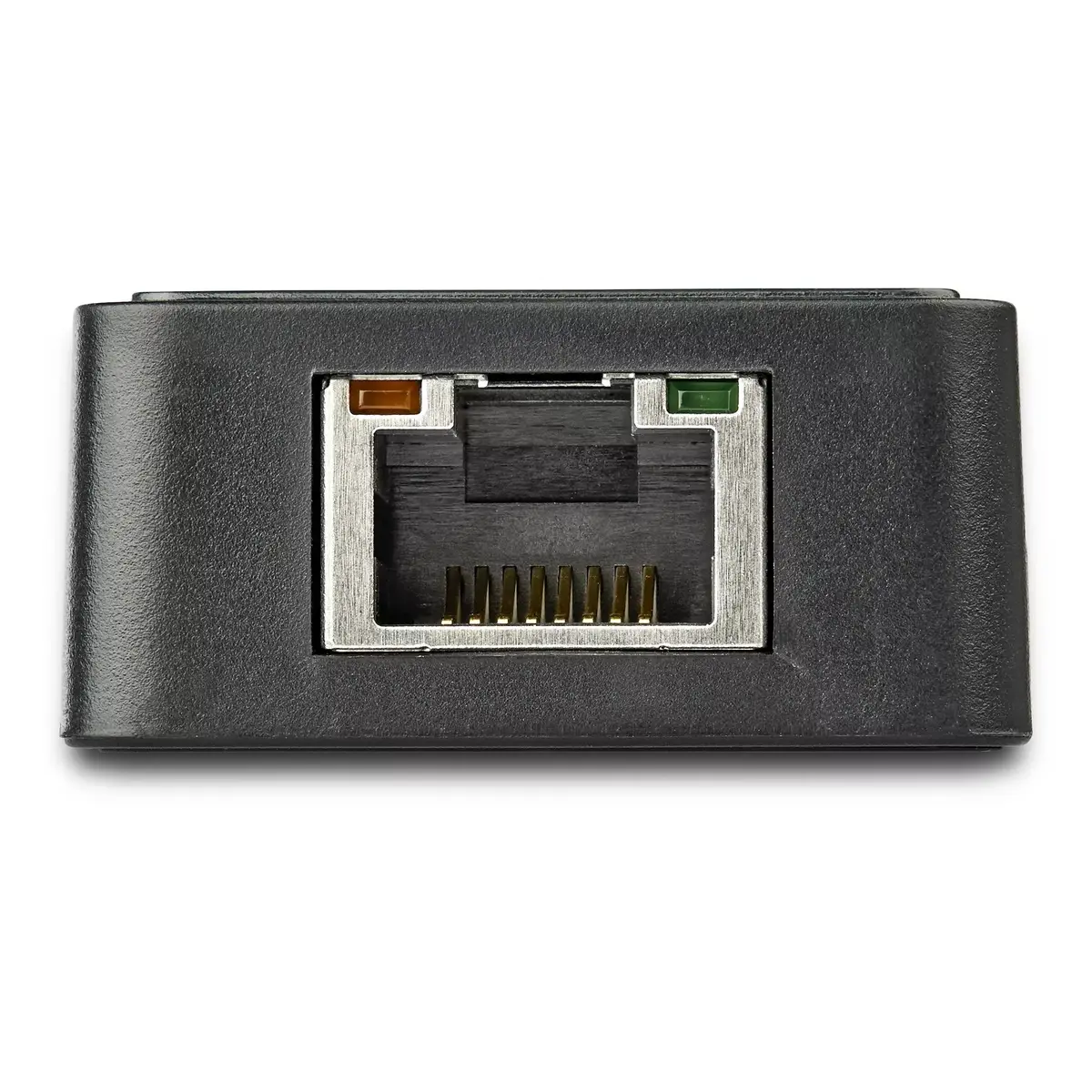

LED indicators:

Activity, Link
