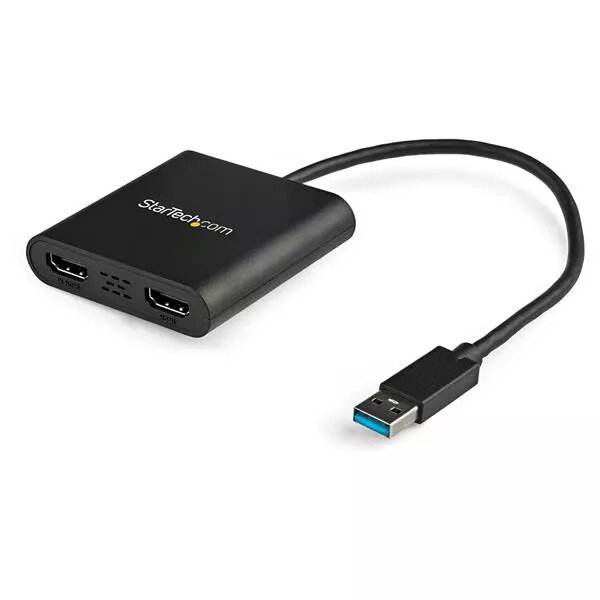

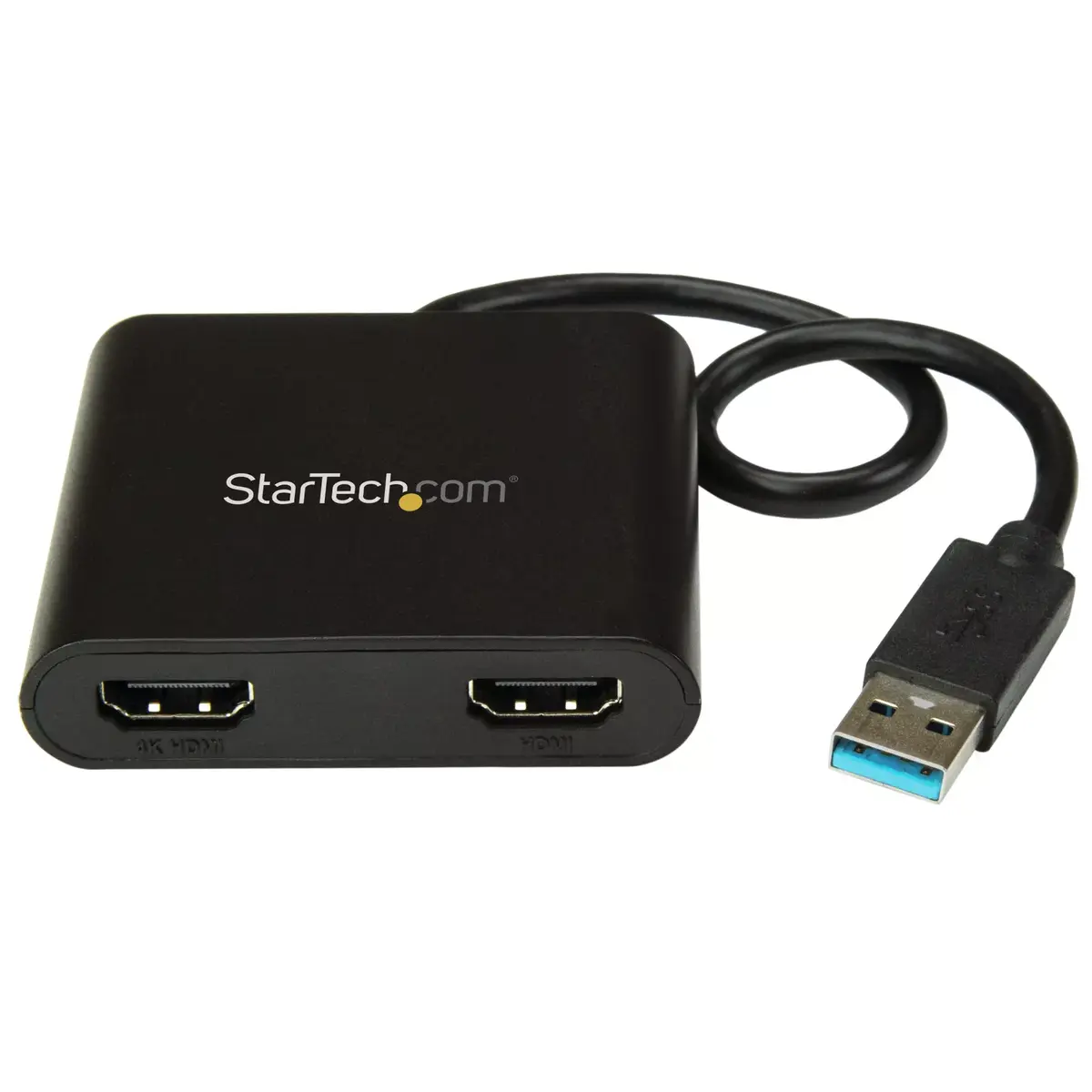

USB 3.0 to Dual HDMI Adapter StarTech USB32HD2 — 1×4K@30Hz + 1×1080p, USB Type-A, External Video Card, Windows

USB connector type: The type of USB connector/port that this product has.

USB Type-A

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

2.0

Integrated USB cable:

Yes

USB cable length:

0.25 m

Minimum processor family:

Core i5

Number of displays supported: The number of displays that can be used with this product.

2

Minimum RAM: The smallest amount of RAM (random access memory) required to perform a particular function.

4096 GB

Minimum processor speed:

2.4 GHz

DVI output:

No

DisplayPort output: The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.

No

HDMI output: The device features an HDMI output.

Yes

USB connector gender:

Male

Other features

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

64 MB

Logistics data

Products per master (outer) case:

40 pc(s)

Master (outer) case height:

430 mm

Master (outer) case length:

445 mm

Master (outer) case width:

310 mm

Harmonized System (HS) code:

84733020

Technical details

Housing material: What the casing of the product is made of.

Plastic

Packaging data

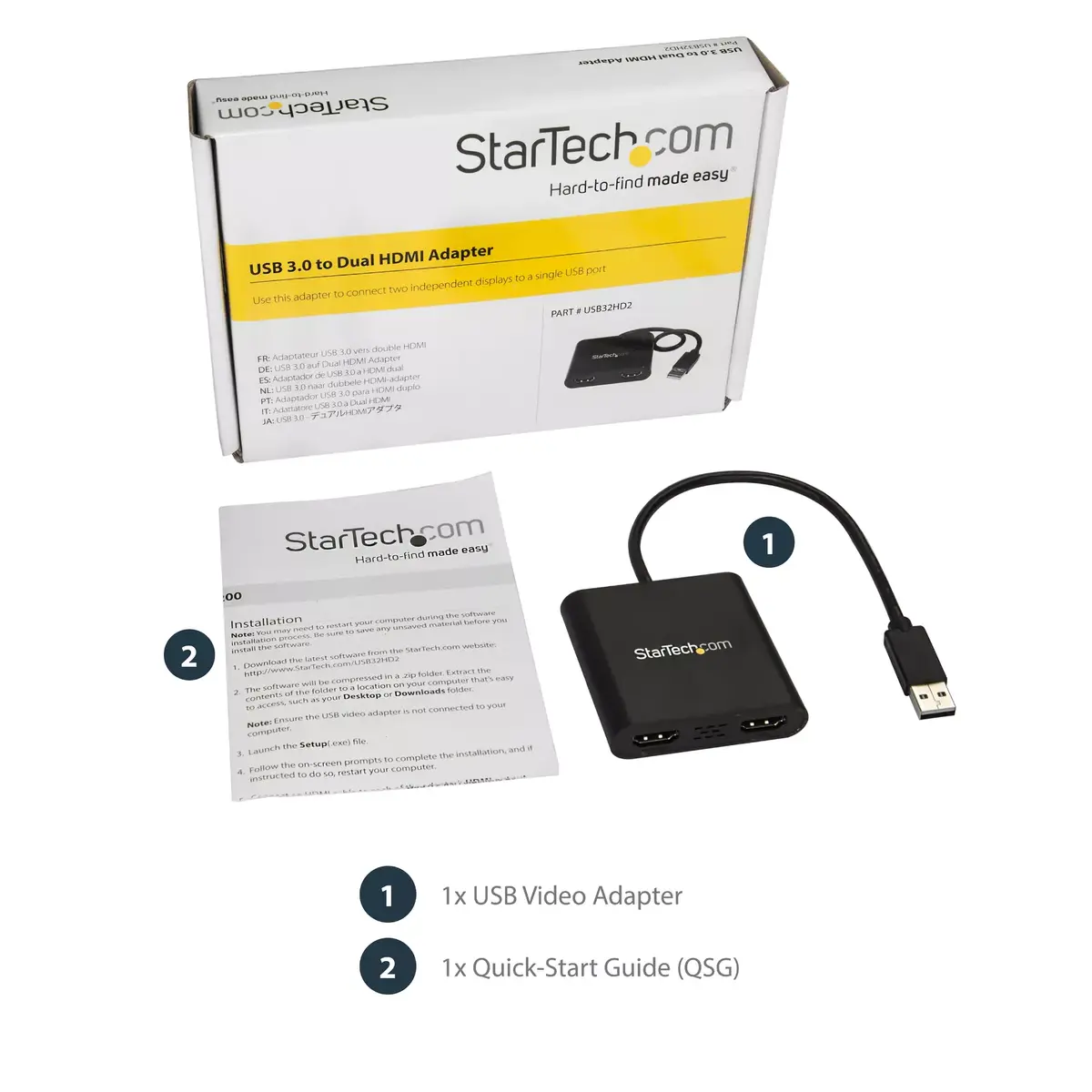

Quick installation guide:

Yes

Package weight: Weight of the packaged product.

184 g

Package height: The distance from the top to the bottom of the packaging.

38 mm

Package depth: The distance from the front to the back of the packaging.

207 mm

Package width: The distance from one side of the packaging to the other.

144 mm

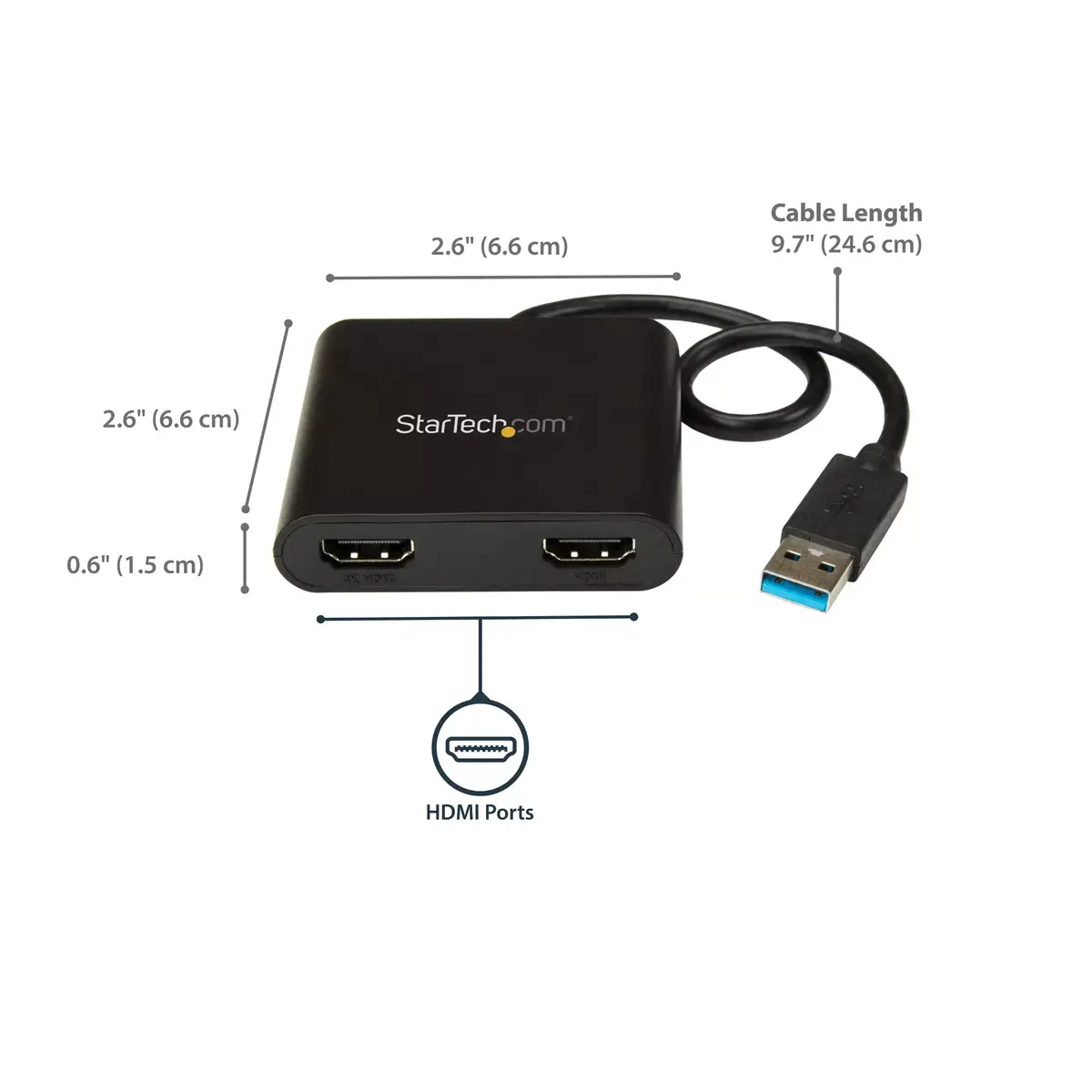

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

15 mm

Depth: The distance from the front to the back of something.

315 mm

Width: The measurement or extent of something from side to side.

66 mm

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.056 kg

Sustainability

Sustainability certificates:

RoHS, CE

Operational conditions

Operating relative humidity (H-H):

0 - 85

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 75

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Features

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 10 Pro, Windows 8 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 10 Home x64, Windows 10 Home, Windows 10 Enterprise x64, Windows 10 Enterprise, Windows 10 Education x64, Windows 10 Education, Windows 8 x64, Windows 10 IOT Core, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Trigger T6-688SL, Silicon Image - Sil9136-3

Product colour: The colour e.g. red, blue, green, black, white.

Black

Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

1280 x 1024 (SXGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 3840 x 2160, 640 x 480 (VGA)

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

3.2 Gen 1 (3.1 Gen 1)

Performance

Maximum resolution (HDMI):

3840 x 2160
