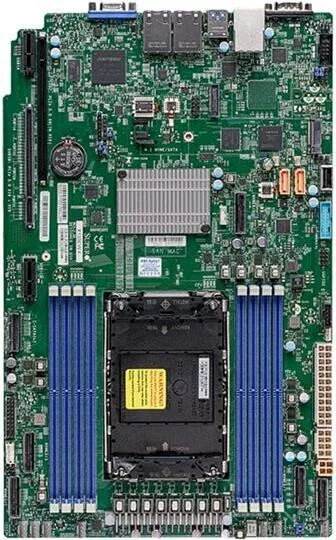

Motherboard Supermicro MBD-X13SEW-TF-B ATX LGA4677 Intel C741 DDR4 up to 128GB 2x10Gb LAN USB 3.2 Gen1

Supermicro MBD-X13SEW-TF-B is an ATX server/workstation motherboard built for LGA4677 socket processors on the Intel C741 chipset. It supports DDR4 memory up to 128GB, provides dual 10 Gigabit Ethernet ports for high-throughput network connectivity and includes USB 3.2 Gen 1 ports and onboard graphics support. The board targets demanding server and professional workstation environments that require multi-core Xeon processors, fast I/O and reliable platform-level features.

Advantages

The motherboard offers a combination of enterprise-grade networking and platform compatibility: two 10GbE ports reduce network bottlenecks and enable low-latency data transfer, while DDR4 support to 128GB allows for large memory footprints for virtualization and data processing tasks. USB 3.2 Gen 1 provides modern peripheral connectivity and onboard graphics support simplifies server management and basic display needs without a discrete GPU. Its ATX form factor supports common chassis and cooling layouts in rack or tower workstations.

Suitable for (tasks / use cases)

• Rackmount or tower servers requiring high-speed networking for storage or database applications
• Professional workstations used for software development, simulation, or data analysis with multi-core Xeon CPUs
• Virtualization hosts and small-scale cloud nodes where 10GbE improves VM-to-storage and VM-to-VM traffic
• Network-attached services such as file servers, backup appliances or media streaming systems

When it may not be suitable

This motherboard is intended for enterprise and professional use and may be more capable than required for typical consumer desktop tasks. It requires LGA4677-compatible Xeon processors and DDR4 memory modules; if you plan to use consumer-grade CPUs or newer DDR5 memory, this board will not be compatible. For applications that depend on multiple high-end discrete GPUs, platform choices with more PCIe lanes or specialized GPU support may be preferable.

Key specifications

• Form factor: ATX
• CPU socket: LGA4677 (supports multi-core Xeon processors compatible with the chipset)
• Chipset: Intel C741
• Memory: DDR4 up to 128GB (registered ECC and unbuffered support depends on CPU and module type)
• Network: 2 x 10 Gigabit Ethernet ports for high-throughput connectivity
• USB: USB 3.2 Gen 1 ports for external peripherals
• Graphics: Onboard graphics support for basic display and management

How to use

Install a compatible LGA4677 processor following standard CPU seating and retention procedures, then populate DDR4 memory modules in the recommended slots to achieve desired capacity and channel configuration. Connect the chassis power, storage devices and 10GbE network cables as required. Configure BIOS/UEFI settings to enable onboard features, set boot order and tune memory and CPU options for your workload. Install the server or workstation operating system and load vendor network and management drivers for full functionality of the 10GbE ports and onboard devices.

What to consider before purchase

• Ensure chosen CPU is LGA4677-compatible and supported by the Intel C741 platform
• Confirm DDR4 memory type (ECC/registered vs. unbuffered) required by your intended configuration and CPU
• Verify chassis compatibility with ATX form factor and available cooling capacity for target CPUs
• Check power supply connectors and wattage to support processor, storage and any additional cards

Usage recommendations

For optimal performance, populate memory in matched pairs and enable ECC if supported by your CPU and modules. Use quality 10GbE cabling and configure network settings to take advantage of multiple NICs for link aggregation or dedicated traffic separation. Keep firmware and drivers up to date to maintain stability and security in server or workstation deployments.
