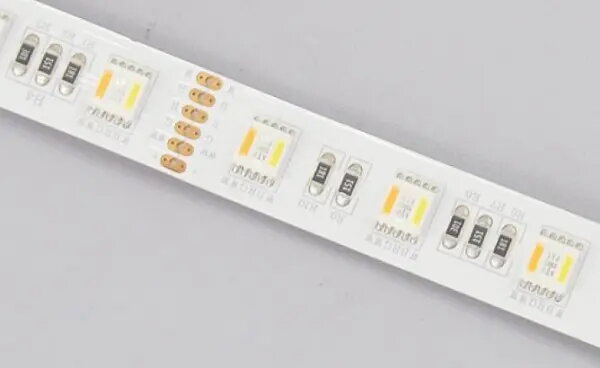

Synergy21 S21-LED-001019 is a universal indoor LED strip light designed for continuous linear illumination and accent applications. The single 5,000 mm long strip integrates 300 LEDs with a total rated power of 120 W and a slim profile of 14.5 mm width and 4 mm thickness. With DC operation and IP65 protection, the strip is suitable for dust- and water-resistant installations in commercial and residential interiors where reliable, even illumination is required.
Advantages
The strip offers high lamp density with 300 LEDs across 5 metres, providing consistent light distribution and reduced visible spotting. Its IP65 rating protects against dust ingress and low-pressure water jets, enabling use in damp or exposed indoor locations. The low-profile housing and flexible format simplify installation in channels, behind coves, or inside signage, while DC operation allows straightforward integration with standard LED drivers and dimming systems.
Suitable for
- Continuous linear illumination for ceilings, coves and under-cabinet areas
- Accent lighting to highlight architectural features or displays
- Backlighting for signs and translucent panels
- General task lighting in shops, offices and residential rooms
Key specifications
- Total length: 5000 mm
- Total power: 120 W
- LED count: 300 LEDs
- Strip width: 14.5 mm
- Strip thickness: 4 mm
- Protection rating: IP65 (dust and water resistant)
- Operating type: DC supply
How to use
Cut or arrange the strip according to the manufacturer's marked cutting points and mount it on a clean, dry surface or inside an appropriate aluminium profile. Connect the strip to a compatible constant-voltage DC driver rated for the combined 120 W load, observing correct polarity. If dimming is required, use a driver or controller compatible with the strip's electrical characteristics. Ensure connectors and solder joints are protected to maintain IP65 integrity.
Usage recommendations
For optimal performance, use a certified constant-voltage LED driver sized with at least 10% headroom above the 120 W rating. Install the strip inside an aluminium channel with diffuser where uniform appearance and heat dissipation are important. Avoid prolonged exposure to direct water jets despite the IP65 rating, and follow local electrical codes for low-voltage DC installations.
