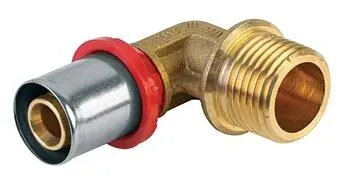

The TDM Brass 1675 press elbow is a high-quality plumbing fitting engineered for creating secure and durable 90-degree transitions in piping systems. Combining an 18mm press connection with a 1/2 inch female threaded outlet, this component is designed for seamless integration into professional water supply and heating installations. Its robust brass construction provides excellent resistance to corrosion and mechanical stress, ensuring a reliable, leak-proof connection that maintains integrity over time.
Advantages
This press elbow offers significant benefits for plumbing professionals and DIY enthusiasts alike. The high-grade brass material ensures longevity and stability even under varying thermal conditions. The precision-engineered press connection allows for rapid and secure installation, reducing labor time while minimizing the risk of joint failure. Furthermore, the versatile design accommodates both press-fit and threaded piping standards, making it a flexible solution for complex plumbing layouts.
Suitable for
- Potable water supply systems
- Hydronic heating installations
- Residential and commercial plumbing repairs
- Connecting press-fit pipes to threaded valves or fixtures
When it may not be suitable
This fitting is not intended for use with gas piping systems or high-pressure industrial steam lines. It should not be installed in environments where the fluid temperature exceeds the specified range of 120°C or falls below -20°C.
Key specifications
- Connection type: 18mm press x 1/2 inch female thread
- Angle: 90 degrees
- Material: Brass
- Operating temperature range: -20°C to +120°C
How to use
To install the TDM Brass 1675 press elbow, ensure the pipe end is clean, deburred, and free of debris. Insert the pipe into the press end of the fitting until it reaches the stop. Use a compatible pressing tool with the correct profile to compress the fitting onto the pipe, creating a permanent seal. For the threaded side, apply appropriate thread sealant or PTFE tape to the male component before screwing it into the 1/2 inch female thread. Tighten carefully to avoid over-torquing the brass threads.
What to consider before purchase
- Verify that your pipe diameter is exactly 18mm for the press connection.
- Ensure the threaded component matches the 1/2 inch NPT or BSP standard as required by your system.
- Check that your pressing tool is compatible with the fitting profile.
- Confirm the operating temperature and pressure of your system remain within the specified limits.
Usage recommendations
Always perform a pressure test on the completed installation before concealing the pipes behind walls or under floors to ensure all joints are perfectly sealed.
