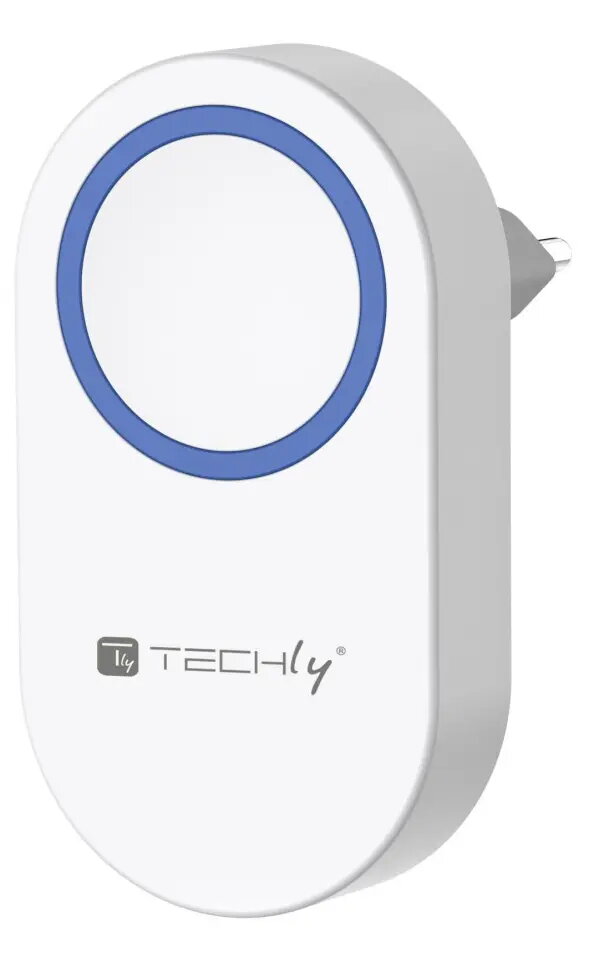

Doorbell chime TECHLY I-BELL-RING05R, wireless 433.92 MHz, 180 m range, white, AC 230 V

TECHLY I-BELL-RING05R is a wireless doorbell chime in white that operates on the 433.92 MHz frequency and supports an open-area transmission range up to 180 m. The receiver is mains powered (AC 230 V, 50 Hz) via a 2-pin EU plug and is designed to pair with external wireless transmitters to deliver audible alerts in homes, offices and small commercial spaces. The unit has low power consumption and an eco-friendly design, and it weighs approximately 108 g.

Advantages

The receiver provides a large selection of 64 melodies and four adjustable volume levels, allowing simple customization of the audible signal. One receiver can be paired with up to eight different transmitters, while a single transmitter can be linked to an unlimited number of receivers, enabling flexible system configurations. The device uses the 433.92 MHz band with code technology to reduce interference from other devices using the same frequency.

Suitable for

• Residential entrances and apartment doors
• Office reception areas and internal doors
• Small retail shops, hotels and guest houses
• Workshops and light industrial areas where basic visitor alerts are needed

Key specifications

• Wireless frequency: 433.92 MHz
• Maximum open-area range: up to 180 m
• Power supply: AC 230 V, 50 Hz via 2-pin EU plug
• Number of melodies: 64
• Volume settings: 4 levels
• Pairing capacity: one receiver pairs with up to 8 transmitters; one transmitter can pair with unlimited receivers
• Weight: approximately 108 g
• Low power consumption and eco-friendly design

How to use

Plug the TECHLY I-BELL-RING05R receiver into a standard AC 230 V wall outlet at a location that provides good sound coverage for the desired area. Install and power on the compatible wireless transmitter(s) according to their instructions. Pair the transmitter and receiver by following the device pairing procedure: set the receiver into pairing mode, activate the transmitter to send its code, and confirm successful pairing by listening for a test chime. Select the preferred melody and adjust the volume level on the receiver. Test the system from several points within the premises to confirm reliable operation and adequate range.

Usage recommendations

For optimal performance place the receiver in an unobstructed outlet with clear line-of-sight to the main entrance or transmitter location. Keep the receiver away from large metal objects or other strong radio sources to minimise potential interference. If range is insufficient in sites with multiple walls or heavy construction, consider adding additional receivers paired to the same transmitter to ensure coverage.
