Technaxx 4G Wildcam TX-189 Outdoor Camera 4MP CMOS Solar Panel

Form factor: The shape or design of the product.

Box

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired & Wireless

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

2560 x 1440

LED type:

IR

Full HD: Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.

Yes

Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Yes

Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Outdoor

Night vision: Night vision is technology which allows you to see in low light conditions.

Yes

Number of illumination LEDs:

8

Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.

Dust resistant, Waterproof

Built-in HDD: The product has a hard drive built into it.

No

Night vision distance:

15

Day/night mode:

Yes

Number of cameras: The quantity of cameras that product can support.

1

SIM card type:

NanoSIM

Motion sensor: Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems.

Yes

Standby time:

28 day(s)

4G standard:

LTE

Motion sensor technology:

Passive infrared (PIR) sensor

Batteries required:

Yes

Mobile network connection:

Yes

SIM card slot: Whether the device features a SIM card slot.

Yes

Motion sensor distance:

12 m

Mobile network generation:

4G

Viewing angle, horizontal (4mm lens):

100 °

Viewing angle, vertical (4mm lens):

62 °

Minimum illumination (panoramic camera):

0.1 lx

Technical details

Optical sensor size: Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.

25.4 / 3

Other features

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

3 W

Viewing angle:

100 °

Frame rate:

15 fps

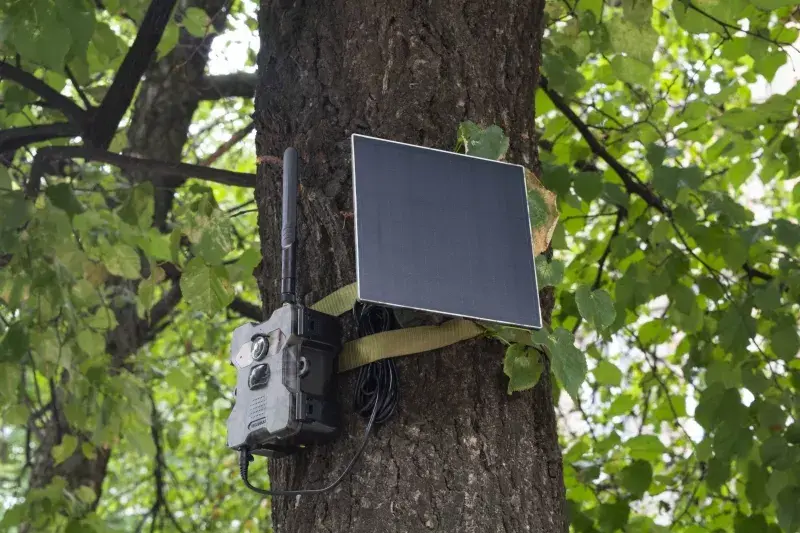

Power source type: What the power source is.

Solar, Battery

Effective sensor resolution:

4 pixels

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.595 kg

Height: The measurement of the product from head to foot or from base to top.

71 mm

Depth: The distance from the front to the back of something.

284 mm

Width: The measurement or extent of something from side to side.

118 mm

Operational conditions

Operating relative humidity (H-H):

0 - 95

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 50

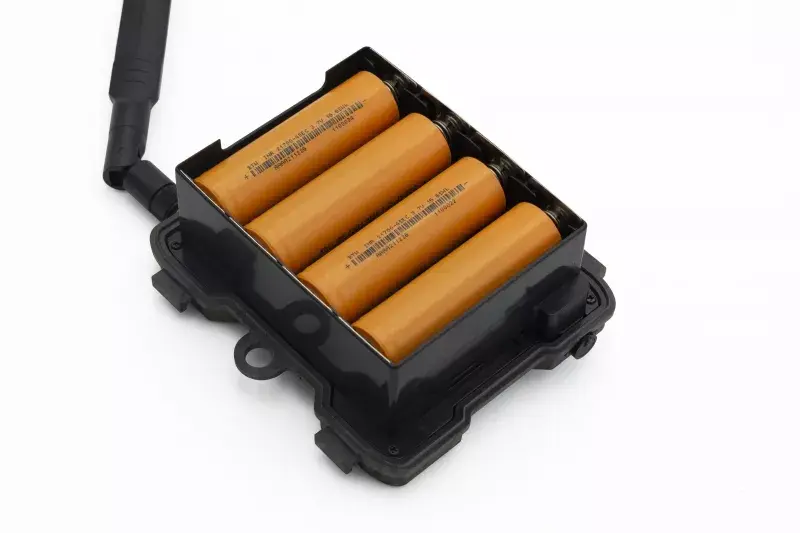

Battery

Number of batteries supported: The number of batteries that can be used with the product.

4

Battery recharge time: Approximate time required to recharge the battery from completely empty to completely full

12 h

Battery capacity: A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.

4500 mAh

Battery technology: The type of battery in the device, e.g. nickel–cadmium (NiCd).

Lithium-Ion (Li-Ion)

Design

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP66

Product colour: The colour e.g. red, blue, green, black, white.

Green, Black

Memory

Maximum memory card size: The maximum size of memory card that can be used with this device.

256 GB

Compatible memory cards: Types of memory cards which can be used with this product.

MicroSD (TransFlash)

Audio

Built-in microphone: Microphone that is found inside the product.

Yes

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes

Lens system

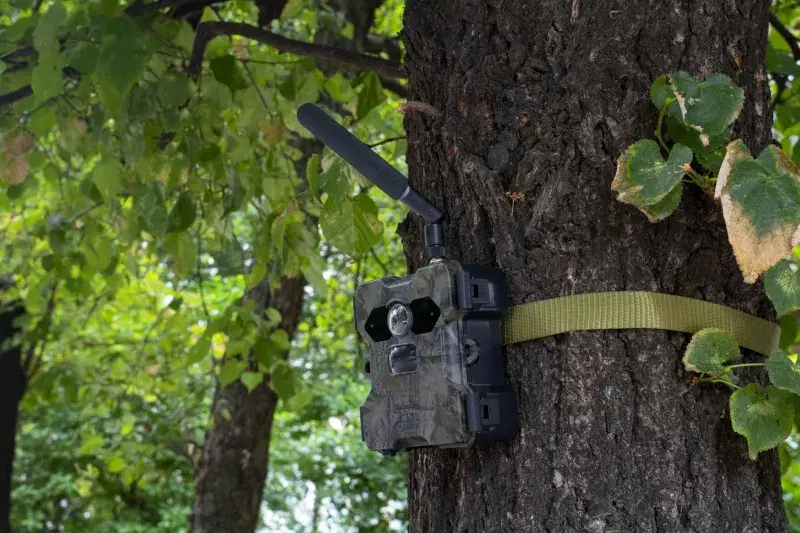

Mounting type: Type of mounting e.g. wall mounting.

Wall

Picture quality

Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.

CMOS
