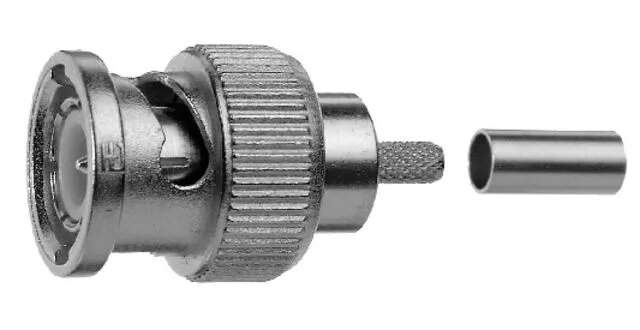

BNC Straight Plug HDTV Crimp 75 Ohm Telegärtner G27 (1.0/4.6)

The Telegärtner BNC Straight Plug HDTV Crimp 75 Ohm G27 (1.0/4.6) is a coaxial connector built for high-frequency signal transmission in professional audio and video installations. This 75 Ω BNC plug is intended for crimp termination on compatible cables and supports HDTV applications while preserving signal integrity and minimizing insertion loss.

Advantages

The connector offers a bayonet coupling that provides a secure, quick connection up to high frequencies. Its construction is suitable for crimping, ensuring a reliable mechanical and electrical termination. The design is compatible with flexible and conformable cable types and is optimized for 75 Ω systems used in video and broadcast environments.

Suitable for

• HDTV and professional video transmission
• Broadcast and studio equipment connections
• Audio/video patching and signal distribution

Key specifications

• Type: BNC straight plug
• Impedance: 75 Ω
• Termination: crimp
• Cable size compatibility: 1.0/4.6 (inner conductor / outer conductor dimensions as per G27)
• Brand / MPN: Telegärtner J01002A0056
• EAN: 4018359309558
• Application: high-frequency / HDTV

How to use

Prepare the coaxial cable to the specified dimensions for the G27 1.0/4.6 configuration, strip the dielectric and braid according to the manufacturer's crimp instructions, insert the center contact and slide the ferrule over the cable. Use the appropriate Telegärtner crimp tool and die for 75 Ω termination and inspect the assembled connector for correct seating and continuity before use.

Usage recommendations

For reliable HDTV performance, use cables and crimp tools matched to the 1.0/4.6 G27 dimensions and verify impedance continuity. Avoid excessive mechanical strain on the mated connector and follow broadcast installation grounding practices.
