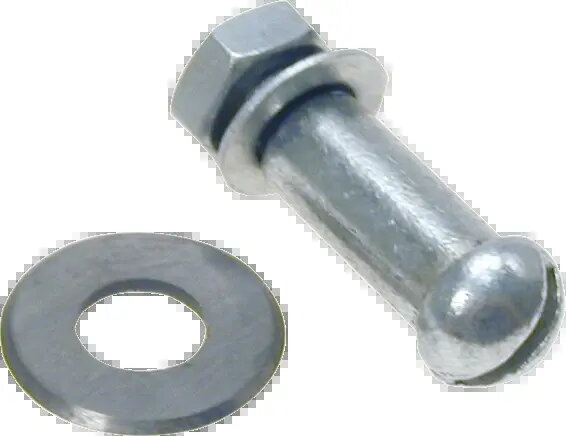

Cutting wheel for tile cutters Topex 22 x 5 x 2 mm (16B328)

Cutting wheel for tile cutters Topex 22 x 5 x 2 mm is a replacement scoring wheel designed for manual tile cutting machines. The small-diameter wheel provides a precise contact edge for scoring ceramic and porcelain tiles, enabling straight, controlled cuts when used with compatible tile cutters. It is intended for tile installation, repair and renovation tasks where accurate edge scoring is required.

Advantages

The Topex cutting wheel offers consistent scoring performance and a compact profile suitable for narrow or detailed scoring lines. Its dimensions ensure compatibility with a range of manual tile cutters that accept 22 x 5 x 2 mm wheels, delivering repeatable results and stable guidance during the scoring stroke. The wheel material and construction are selected for effective scoring of both ceramic and porcelain surfaces without excessive chipping when used correctly.

Suitable for

• Scoring ceramic wall and floor tiles
• Scoring porcelain tiles and glazed tile surfaces
• Tile installation and renovation projects requiring straight cuts
• Replacement parts for manual tile cutters that accept 22 x 5 x 2 mm wheels

Key specifications

• Outer diameter: 22 mm
• Width (cutting edge): 5 mm
• Bore/thickness: 2 mm
• Designed for manual tile cutting machines
• Suitable for ceramic and porcelain tiles

How to use

Install the cutting wheel on the compatible tile cutter according to the tool manufacturer's instructions, ensuring the wheel is securely seated and rotates freely. Position the tile on the cutter's base, align the scoring wheel along the intended cut line, and apply steady, even pressure while drawing the wheel across the tile surface once or twice to create a clean score. After scoring, use the cutter's breaking mechanism or appropriate pliers to snap the tile along the scored line. Inspect the wheel before use and replace it when scoring quality degrades.

Usage recommendations

Use the wheel with tile cutters specified to accept 22 x 5 x 2 mm wheels and follow safety precautions: wear eye protection, keep hands clear of the scoring and breaking area, and ensure the tile is properly supported to prevent uneven breaks. Replace the wheel if it shows visible wear or produces irregular scores to maintain cut quality.
