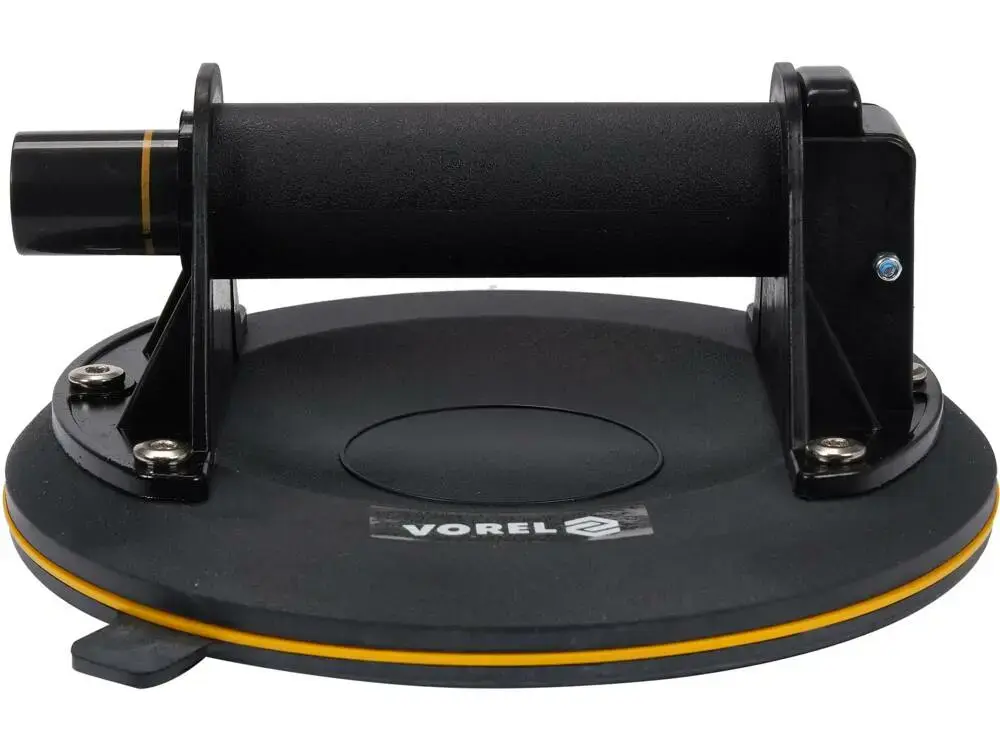

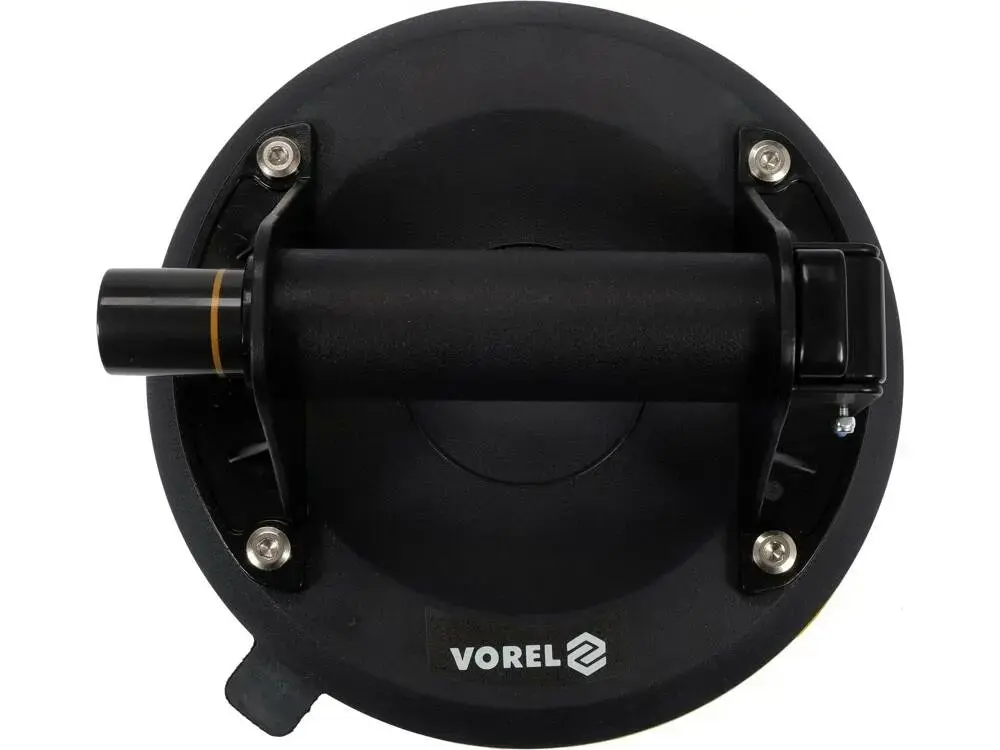

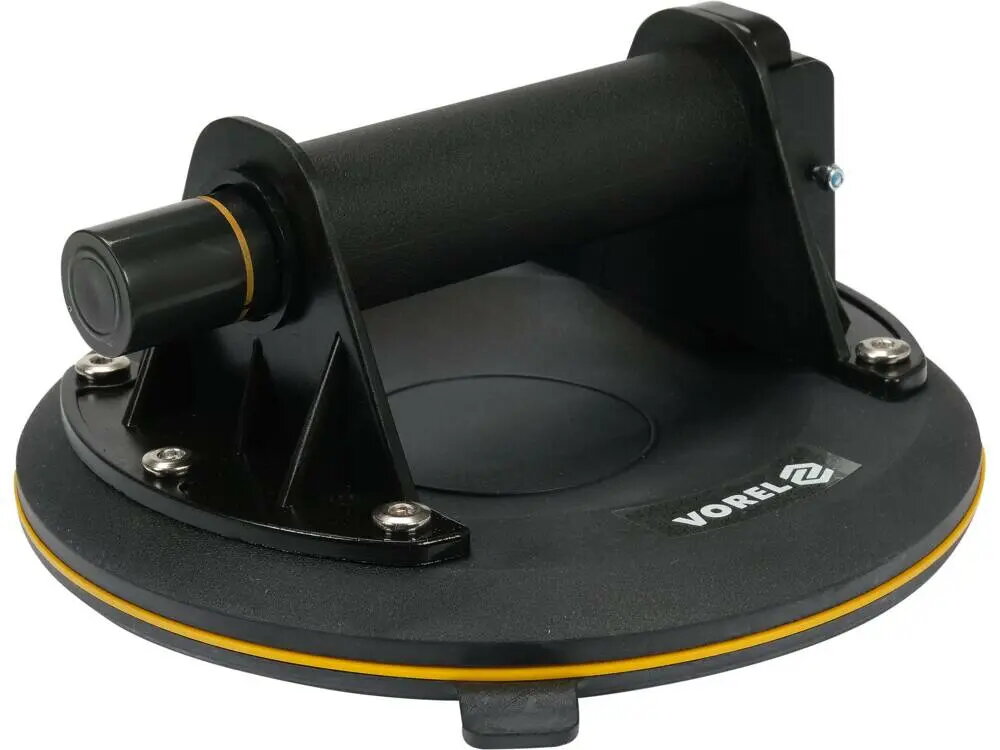

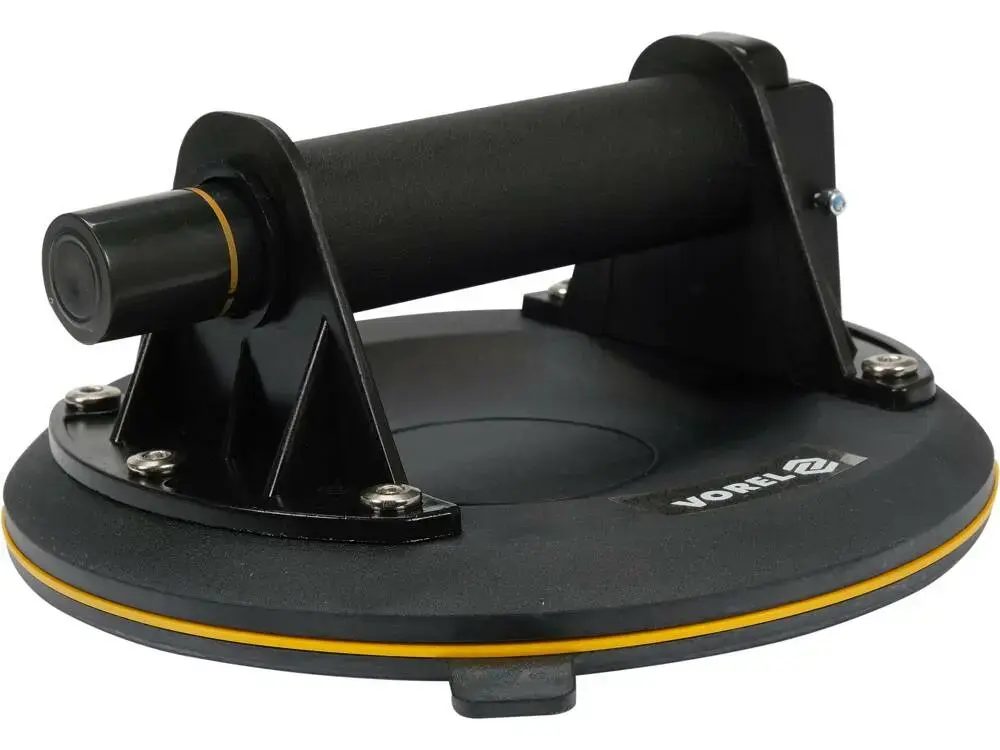

VOREL 05325 suction lifter

The VOREL 05325 suction lifter is a single-piece tool designed for handling flat, smooth-surfaced materials. With a rubber suction cup diameter of 20.4 cm and a robust ABS plastic body, this lifter provides secure temporary attachment to glass, ceramic tiles, sheet metal and laminated panels. It is supplied as one unit per pack and is suitable for manual handling tasks where a compact, portable suction device is required.

Advantages

The construction combines a durable ABS housing with a resilient rubber suction cup to ensure consistent suction performance and resistance to everyday wear. The relatively large 204 mm suction cup offers a broad contact area for improved stability when lifting and moving flat items. Rated for loads up to 100 kg and operable across a wide temperature range, the tool is adaptable to indoor and outdoor work conditions within specified limits.

Suitable for

• Handling window and automotive glass
• Moving ceramic tiles and countertops
• Lifting sheet metal and metal panels
• Positioning laminated boards and smooth construction panels

Key specifications

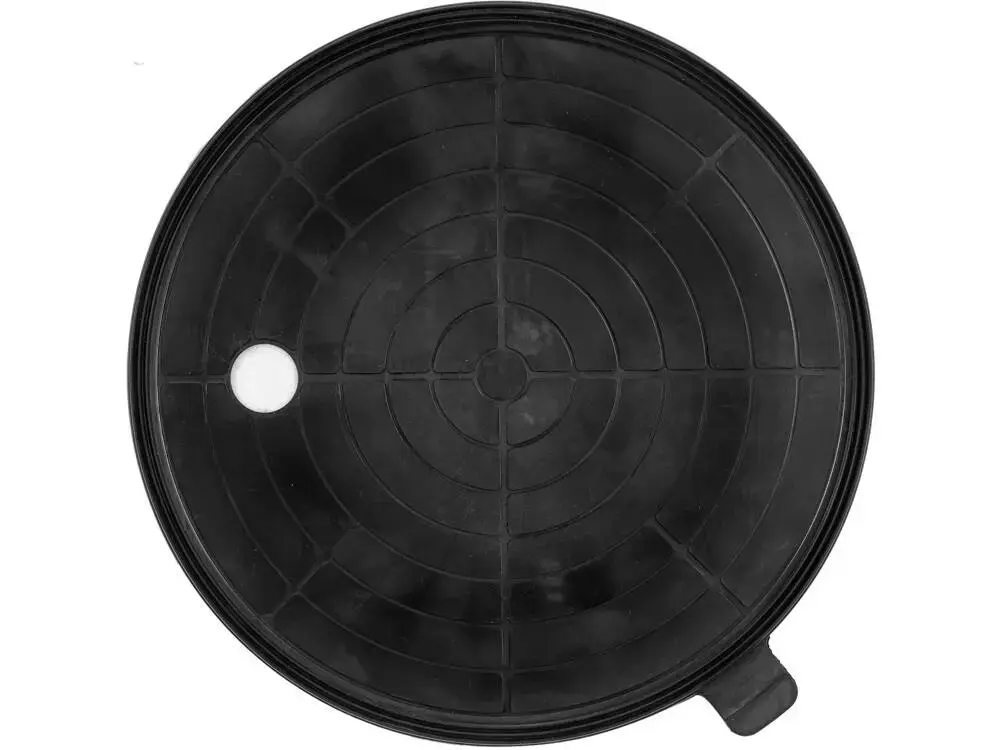

• Suction cup diameter: 204 mm
• Body material: ABS plastic
• Suction cup material: rubber
• Maximum load capacity: 100 kg
• Operating temperature range: -15°C to 49°C
• Quantity per pack: 1 piece

How to use

Clean and dry the surface of the object to ensure a tight seal. Place the suction cup flat against the smooth surface, press firmly to remove air from the contact area, then engage the suction mechanism according to the product's manual until a secure hold is achieved. Lift or move the object using steady, controlled motions, keeping the load within the rated maximum capacity. To release, follow the reverse procedure to break the seal and detach the cup safely.

Usage recommendations

Use only on smooth, non-porous surfaces that are free of dust, oil and debris. Avoid exceeding the 100 kg load limit and do not rely on the suction lifter for overhead lifting without additional safety measures. Store the tool in a dry place and avoid prolonged exposure to temperatures outside the -15°C to 49°C range to maintain suction performance and rubber integrity.
