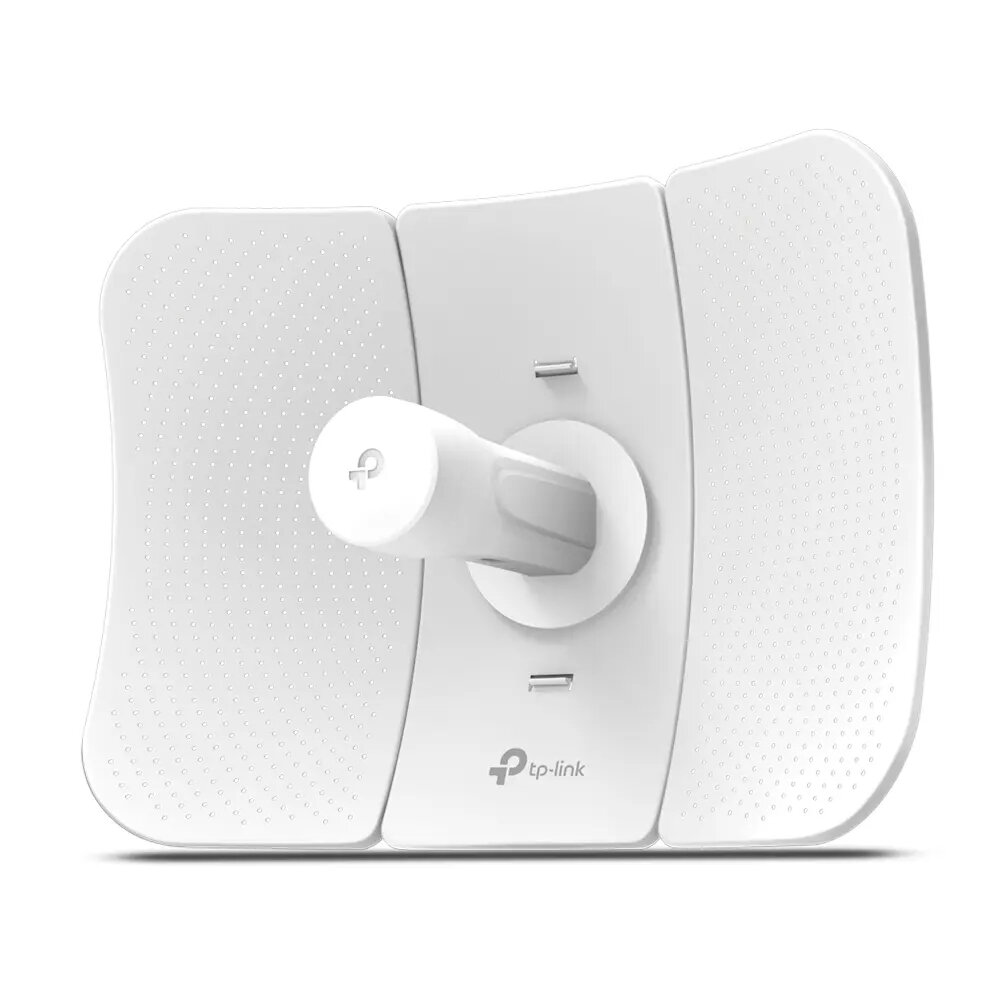

Router TP-Link 5GHz 150Mbps 802.11a 802.11n

Gain:

23 dBi

Horizontal beam width:

7 °

Vertical beam width:

10 °

Waterproof: The product is protected from water, staying dry if liquid is spilt on it or it gets wet in the rain.

Yes

Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.

Water resistant, Dust resistant

Logistics data

Quantity per pack:

1 pc(s)

Harmonized System (HS) code:

85177100

Other features

Input voltage: The voltage (V) which is required to power the product.

16 - 27

Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.

5

Mounting: What size the mounting head of the product is, to couple it with a camera.

Pole

Operational conditions

Storage relative humidity (H-H):

5 - 95

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-40 - 70

Features

Flash memory:

8 MB

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

64 MB

Built-in processor: Whether or not a processor is built into the device.

Yes

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR2

Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.

560 MHz

Processor model: The model number for the processor in a computer.

Atheros MIPS 74Kc

Antenna

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

23 dBi

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

Directional antenna

Certificates

Certification:

CE, FCC

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Packaging content

Quick installation guide:

Yes

Manual:

Yes

Mounting kit:

Yes

Cables included:

AC

Design

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP65

Housing material: What the casing of the product is made of.

Plastic

Product colour: The colour e.g. red, blue, green, black, white.

White

Packaging data

Package weight: Weight of the packaged product.

1420 g

Package height: The distance from the top to the bottom of the packaging.

135 mm

Package depth: The distance from the front to the back of the packaging.

155 mm

Package width: The distance from one side of the packaging to the other.

328 mm

Network

Cabling technology: Type of cable technology performance.

10/100Base-T(X)

Wireless LAN features

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11n, IEEE 802.11a

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

156 mm

Depth: The distance from the front to the back of something.

170 mm

Width: The measurement or extent of something from side to side.

233.4 mm

Power

Power source type: What the power source is.

PoE
