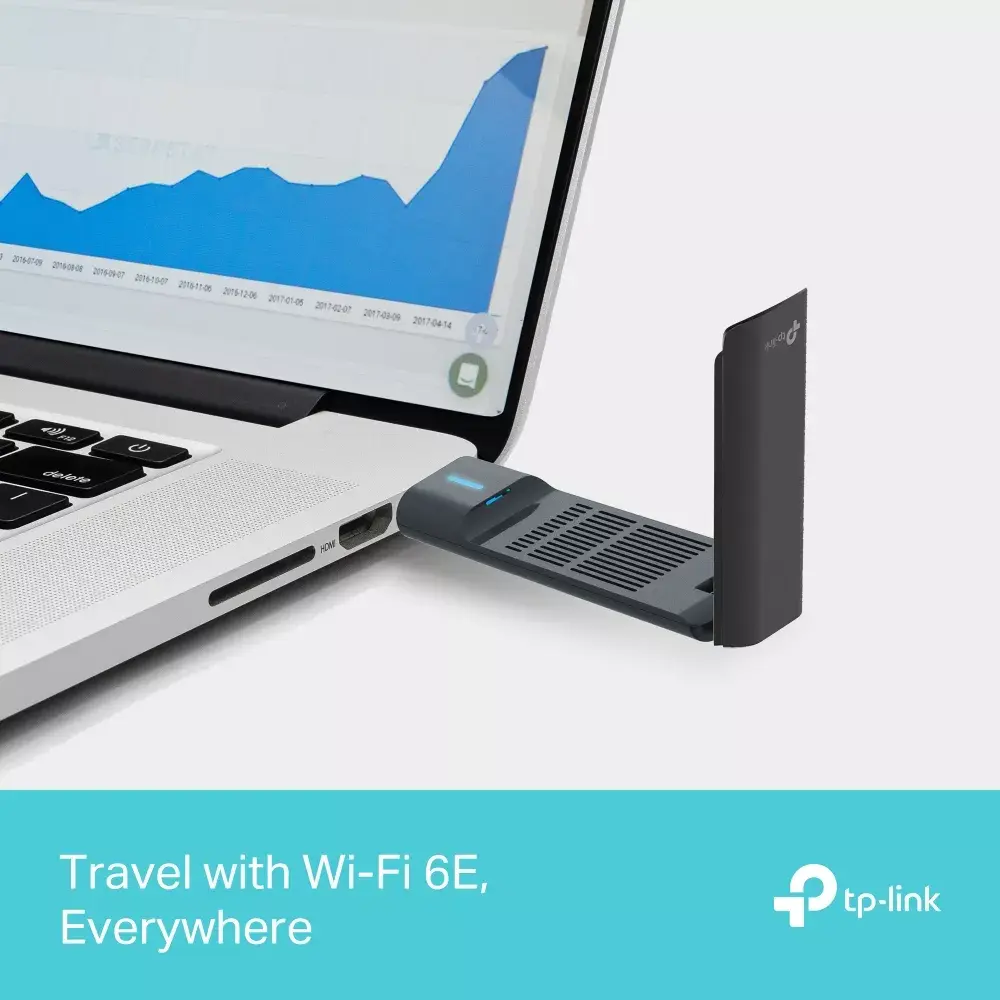

Wireless USB Adapter TP-Link Archer AXE5400

Internal: The product is built in.

No

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired & Wireless

Component for: What this product is used as a part of (component for).

PC/Laptop

Other features

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

5400 Mbit/s

Frequency range:

2.4 - 6

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

3.2 Gen 1 (3.1 Gen 1)

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

111.7 mm

Depth: The distance from the front to the back of something.

14.8 mm

Width: The measurement or extent of something from side to side.

30.5 mm

Operational conditions

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Antenna

Antenna design:

Internal

Performance

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 11, Windows 10

Sustainability

Sustainability compliance:

Yes

Sustainability certificates:

RoHS, Federal Communications Commission (FCC), CE

Features

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN

Antenna:

Yes

Packaging content

Quick installation guide:

Yes

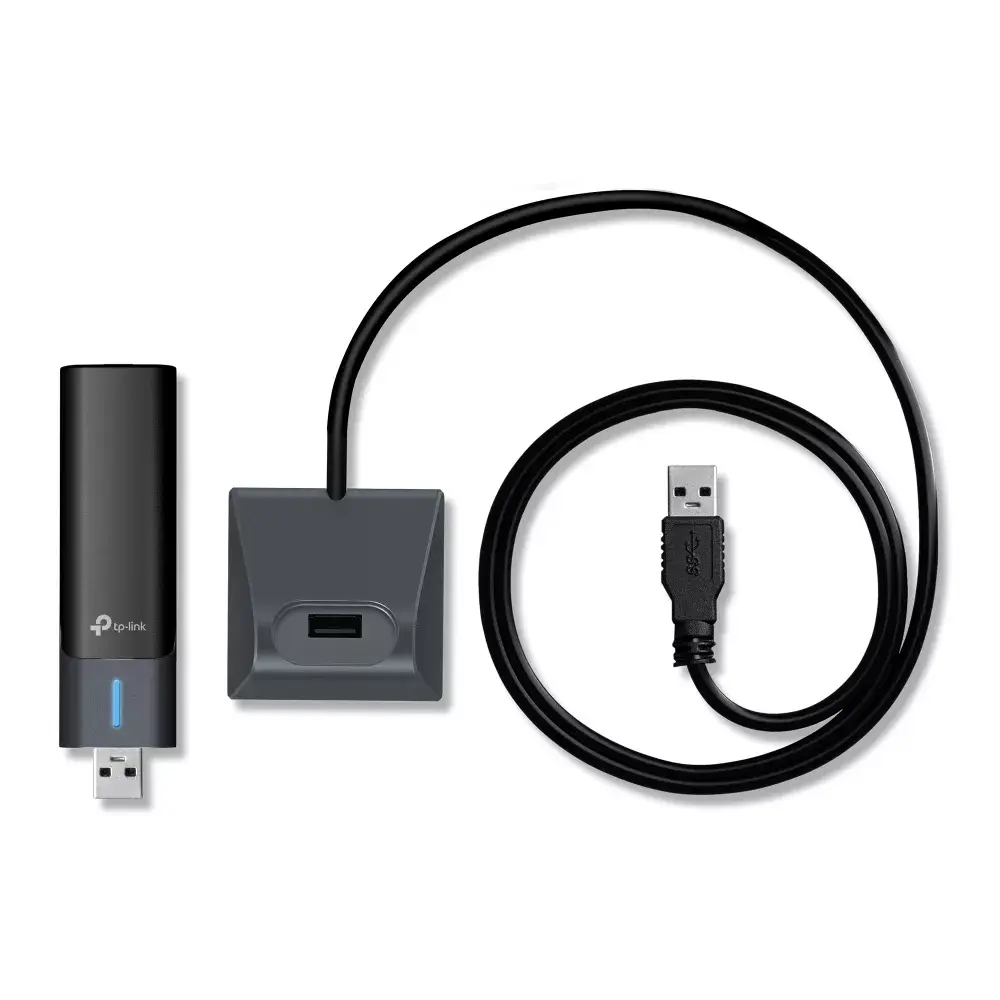

Cables included:

USB

Technical details

Host interface: Interface that enables a host controller to communicate with a driver.

USB

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA3, WPA2-PSK, WPA2, WPA, WEP

Wireless LAN features

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6E (802.11ax)

Wi-Fi band: The frequency bands the product features.

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

WLAN data transfer rates supported:

2402, 1732, 574, 400, 300, 54, 11

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6E (802.11ax), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Ethernet LAN features

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac

Design

LED indicators:

Y

Product colour: The colour e.g. red, blue, green, black, white.

Black
