Wireless Access Point TP-Link CPE220

Name: Wireless Access Point TP-Link CPE220 CPE220
Brand: TP-LINK
SKU: 3553125
Price: 54.99 EUR
Availability: InStock
Rating: 4 (1 reviews)

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Wireless Access Point TP-Link CPE220 2.4 GHz Wi-Fi 802.11n

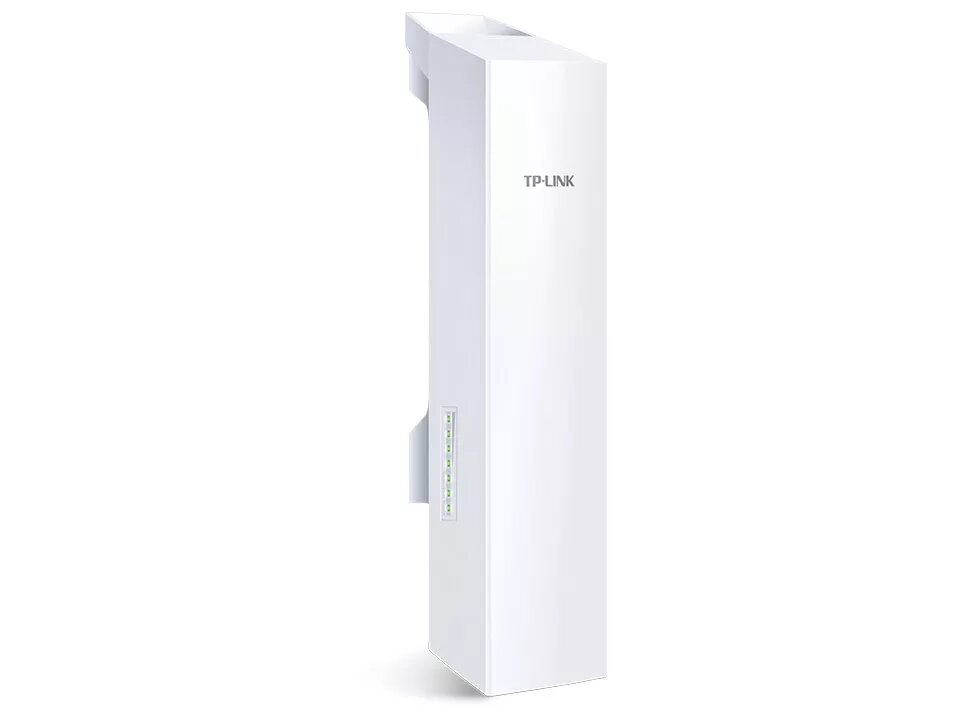

Wireless Access Point TP-Link CPE220 Photo 1

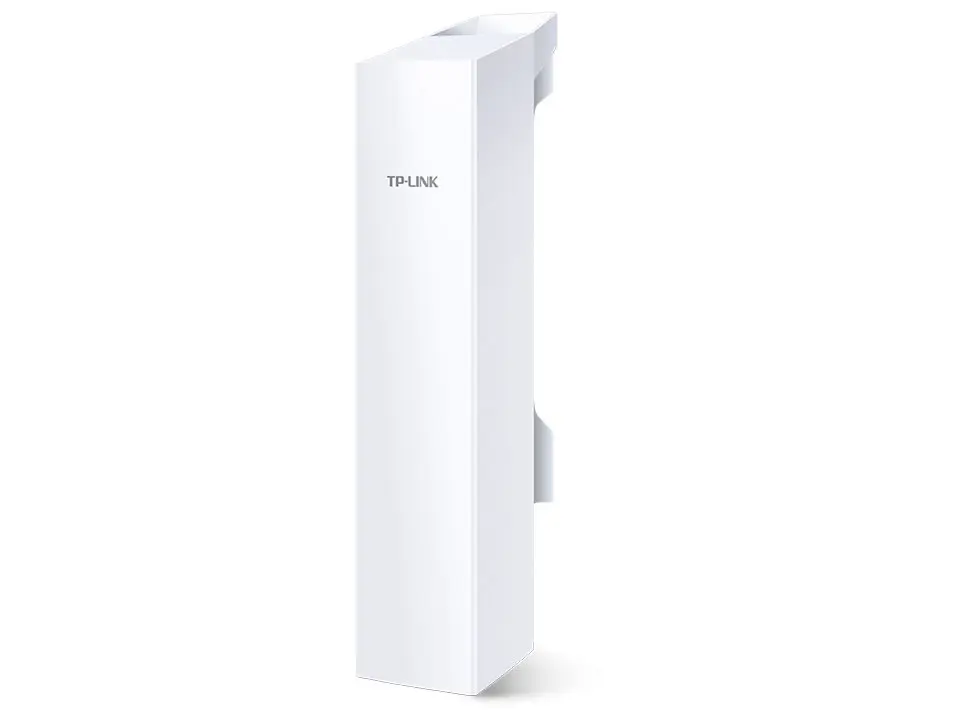

Wireless Access Point TP-Link CPE220 Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The TP-Link CPE220 is a wireless access point that operates on the 2.4 GHz band with a maximum data transfer rate of 300 Mbit/s. It supports Power over Ethernet (PoE) for easy installation and has various security protocols including WPA2 and AES. With a power consumption of 10.8 W, this device is efficient and reliable for outdoor and indoor use.

Available at price 54.99 €: 20 pcs.

Total available for order: 77 pcs.

Warranty: 3 Years

SKU: 3553125

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.89 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The TP-LINK CPE220 is a 2.4 GHz outdoor wireless access point offering up to 300 Mbps data rate, designed for long‑range point-to-point, point-to-multipoint links and outdoor Wi‑Fi coverage. It features dual‑polarized high‑gain antennas, Qualcomm Atheros enterprise chipsets and PoE support for flexible installation. The unit is housed in a weatherproof enclosure and operates in temperatures from -30℃ to +70℃.

Advantages

The CPE220 provides professional-grade outdoor performance with an integrated high‑gain antenna and dedicated metal reflector to improve signal gain and reduce interference. MAXtream TDMA technology increases network throughput in crowded deployments by reducing collisions. Centralized management via Pharos Control and a web-based PharOS interface simplify deployment, monitoring and firmware updates. PoE support and a robust enclosure make it suitable for harsh climates.

Suitable for

Long‑distance wireless links (point-to-point)
Point‑to‑multipoint outdoor coverage
Outdoor Wi‑Fi for campuses, parks or rural sites
Networks requiring centralized device management

Key specifications

Wireless band: 2.4 GHz
Maximum data rate: 300 Mbps (802.11n)
Antennas: 2 built‑in dual‑polarized high‑gain elements with metal reflector
Chipset: Qualcomm Atheros enterprise‑level
Ports: 1 × Ethernet LAN (RJ-45) with PoE
Operating temperature: -30℃ to +70℃
Security: WPA2, AES (supported)
Colour: White

How to use

Mount the CPE220 outdoors using the included mounting kit and connect it to a PoE injector or PoE switch to supply power and network connectivity through the RJ‑45 port. Access the device through the PharOS web interface for initial configuration or use Pharos Control from a central PC to discover and manage multiple units. Configure wireless mode for point‑to‑point or point‑to‑multipoint links, set SSID and security (WPA2/AES), and align the unit for optimal signal strength when used for long‑distance links.

Usage recommendations

For best long‑range performance, ensure clear line of sight between CPE units, use MAXtream TDMA mode in dense deployments to reduce interference, and perform careful physical alignment of antennas. Regularly update firmware via Pharos Control and protect the PoE injector and cabling from prolonged water exposure.

Specifications

Antennas quantity:: 2
Ethernet LAN (RJ-45) ports:: 1
Maximum data transfer rate:: 300 Mbit/s
Networking standards:: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Product colour:: White

All features

Features

Maximum data transfer rate:: 300 Mbit/s
Channel bandwidth:: 40 MHz
Bandwidth:: 2.4 GHz
Frequency band:: 2.4 - 2.483
Networking standards:: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Channels quantity:: 5 channels
Wi-Fi data rate (max):: 300
Automatic channel selection:: Yes
VLAN support:: Yes
2.4 GHz:: Yes
5 GHz:: No
RTS/CTS threshold:: Yes

Power

Output voltage:: 24
Power over Ethernet (PoE):: Yes
Input current:: 0.8
Output current:: 1 A
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power consumption (max):: 10.8 W

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -30 - 70
Storage relative humidity (H-H):: 5 - 95

Certificates

Certification:: - CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5

Antenna

Antenna type:: Internal
Antenna gain level (max):: 12 dBi
Antennas quantity:: 2
Antenna features:: Integrated antenna

Packaging content

AC adapter included:: Yes
Quick start guide:: Yes
Mounting kit:: Yes

Management features

Management platform:: Pharos Control
Web-based management:: Yes

Protocols

Management protocols:: TDMA
DHCP client:: Yes
Universal Plug and Play (UPnP):: Yes

Design

Internal:: No
LED indicators:: Power
Product colour:: White
Reset button:: Yes
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IPX5

Weight & dimensions

Height:: 33.5 mm
Width:: 110 mm
Depth:: 57 mm

Performance

Internal memory:: 64 MB
Flash memory:: 8 MB
Built-in processor:: Yes

Ports & interfaces

USB 2.0 ports quantity:: 0
Ethernet LAN (RJ-45) ports:: 1
DC-in jack:: Yes
Internal RJ-45 ports quantity:: 1

Security

Security algorithms:: HTTPS, WPA2-PSK, WPA2, WPA-PSK, WPA, TKIP, SSID, SSH, SNMP, AES, 152-bit WEP, 128-bit WEP, 64-bit WEP
MAC address filtering:: Yes
IGMP snooping:: Yes
IP address filtering:: Yes
Auto Wireless Distribution System (WDS):: Yes
Number of SSID supported:: 1
Service Set Identifier (SSID) features:: SSID broadcast on/off
