TP‑LINK EAP223 AC1350 Access Point

Name: Access Point TP‑LINK EAP223 AC1350 EAP223
Brand: TP-LINK
SKU: 7005430
Price: 67.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Access Point TP‑LINK EAP223 AC1350 Dual‑Band (2.4 GHz 450 Mbps / 5 GHz 867 Mbps), PoE, Omada management

Fast shipping

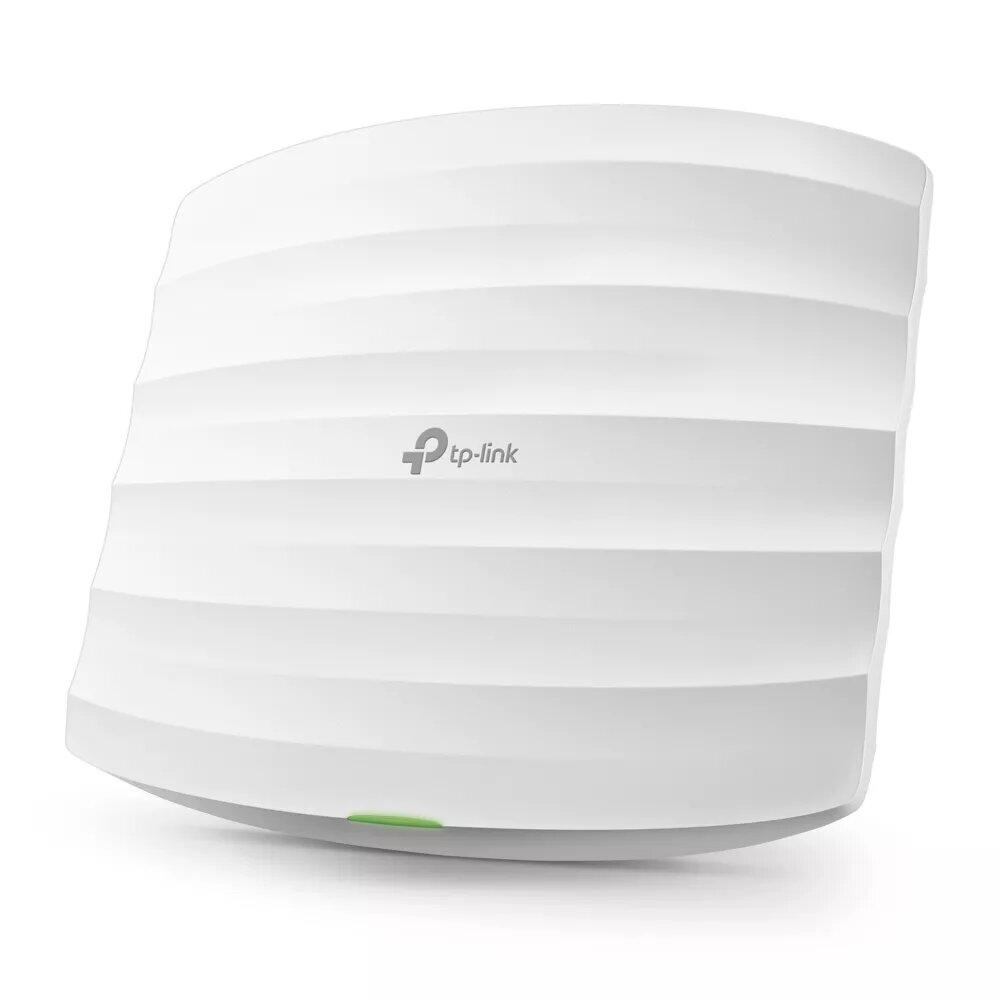

TP‑LINK EAP223 AC1350 Access Point Photo 1

TP‑LINK EAP223 AC1350 Access Point Photo 2

TP‑LINK EAP223 AC1350 Access Point Photo 3

TP‑LINK EAP223 AC1350 Access Point Photo 4

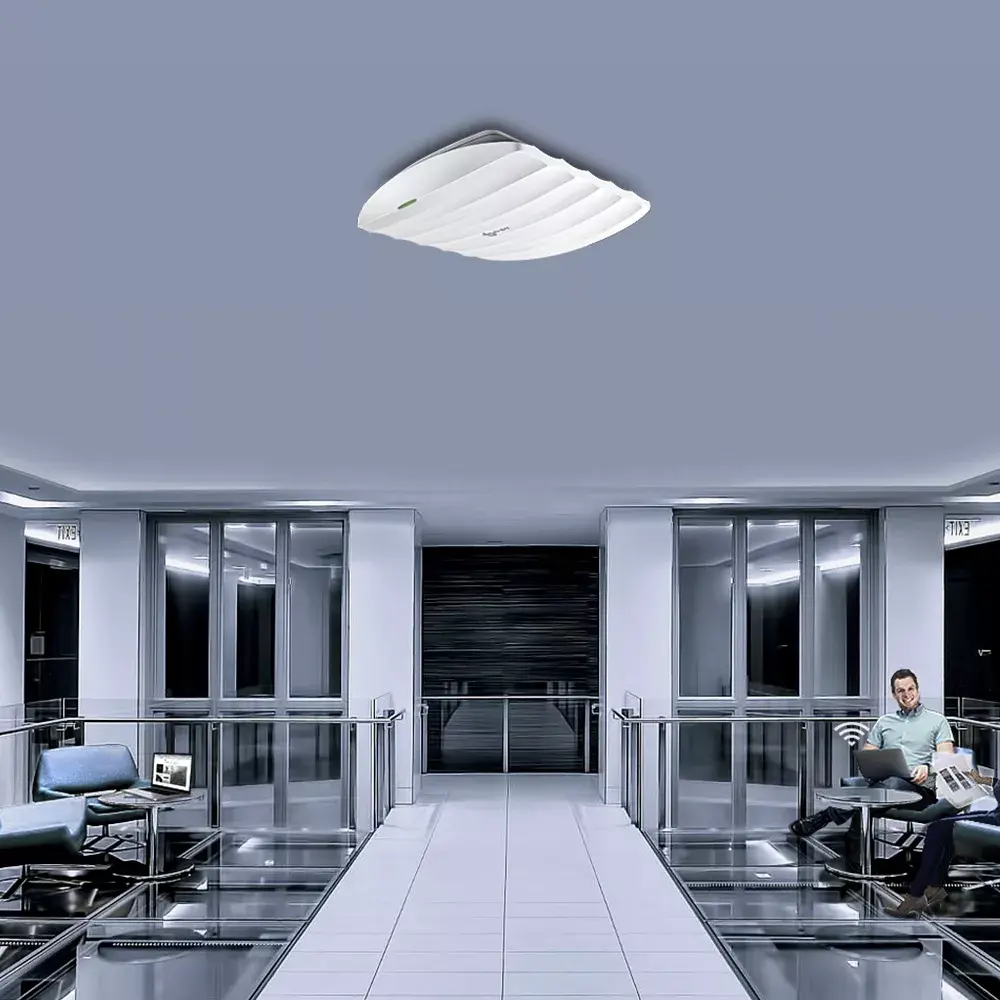

TP‑LINK EAP223 AC1350 Access Point Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

TP‑LINK EAP223 AC1350 is a ceiling/wall mountable dual‑band access point providing up to 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz with MU‑MIMO, band steering and QoS. It supports PoE (48 V passive), 15 SSIDs, VLAN, MAC filtering, web and Omada management, and features internal omni antennas, automatic channel selection and wireless isolation for business and public Wi‑Fi deployments.

Available at price 67.49 €: 3 pcs.

Total available for order: 38 pcs.

Warranty: 2 Years

SKU: 7005430

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Tuesday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Tuesday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

Friday {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.79 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

Friday {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The EAP223 is an affordable business-class dual-band access point offering 802.11ac Wave 2 MU-MIMO performance. Designed for small and medium-sized deployments, it delivers combined wireless throughput and supports centralized cloud management through the Omada SDN platform. The device provides secure guest access with social and SMS authentication and flexible powering options including 802.3af/at PoE and Passive PoE.

Advantages

Equipped with MU-MIMO technology, the EAP223 can serve multiple clients simultaneously to improve overall network efficiency. Integration with the Omada Software Defined Networking (SDN) platform enables unified management of access points, switches and gateways from a single cloud-based interface. The built-in captive portal supports Facebook Wi‑Fi and SMS authentication for controlled guest access, and the access point supports both standard PoE and passive PoE for easy and flexible installation. A companion Omada mobile app allows quick setup, monitoring and client management from a smartphone or tablet.

Key specifications

Wireless standard: 802.11ac Wave 2 (dual-band)
Maximum aggregate throughput: up to 1350 Mbps
MU‑MIMO: supported
Cloud management: Omada SDN (centralized cloud console)
Guest authentication: captive portal with Facebook Wi‑Fi and SMS
Power options: 802.3af/at PoE and Passive PoE
Management app: Omada mobile app for setup and monitoring

How to use

Install the EAP223 in the desired location and connect it to your network switch or gateway. Provide power using an 802.3af/at PoE switch, a compatible PoE injector, or a passive PoE adapter. Use the Omada cloud controller or the Omada mobile app to adopt the access point into your network, apply SSID and security settings, and enable guest portal options as needed. Monitor device status and client connections from the Omada interface and adjust radio settings or channel plans to optimize coverage.

Recommendations

Place the access point centrally in the coverage area and avoid large obstacles or metal structures to maximize signal distribution. For deployments serving many concurrent users, use multiple EAP223 units managed by Omada SDN and ensure PoE power capacity is sufficient for all devices. Keep firmware updated through the Omada controller to maintain security and performance.

Specifications

Ethernet LAN (RJ-45) ports:: 1
Antennas quantity:: 3
Maximum data transfer rate:: 867 Mbit/s
Networking standards:: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product colour:: White

All features

Packaging content

Cables included:: AC
Quick start guide:: Yes
Mounting kit:: Yes
Quantity per pack:: 1 pc(s)

Features

Maximum data transfer rate:: 867 Mbit/s
Networking standards:: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Quality of Service (QoS) support:: Yes
Rate limiting:: Yes
Automatic channel selection:: Yes
VLAN support:: Yes
2.4 GHz:: Yes
5 GHz:: Yes
Wireless isolation:: Yes
Wi-Fi Multimedia (WMM)/(WME):: Yes
MIMO:: Yes
Automatic channel scanning:: Yes
Band steering:: Yes
MIMO type:: Multi User MIMO
Maximum data transfer rate (2.4 GHz):: 450 Mbit/s
Maximum data transfer rate (5 GHz):: 867 Mbit/s
Transmitting power (FCC):: 24, 22
Transmitting power (CE):: 20, 23
6 GHz:: No

Antenna

Antenna type:: Internal
Antennas quantity:: 3
Antenna direction type:: Omni-directional

Management features

Management platform:: Omada
Web-based management:: Yes
Syslog:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 9.7 W
Output voltage:: 48
Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) type supported:: Active PoE, Passive PoE

Performance

Compatible operating systems:: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Certificates

Certification:: CE, FCC, RoHS

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 90

Security

Security algorithms:: SSID
MAC address filtering:: Yes
Number of SSID supported:: 15

Ports & interfaces

Ethernet LAN (RJ-45) ports:: 1

Weight & dimensions

Height:: 37.1 mm
Width:: 205.5 mm
Depth:: 181.5 mm

Design

LED indicators:: Power
Product colour:: White
Reset button:: Yes
Placement:: Ceiling, Wall
