header-product Access Point TP-Link Omada AC1200 Dual Band Wi-Fi 802.11ac
57.49 €

Access Point TP-Link Omada AC1200 Dual Band Wi-Fi 802.11ac

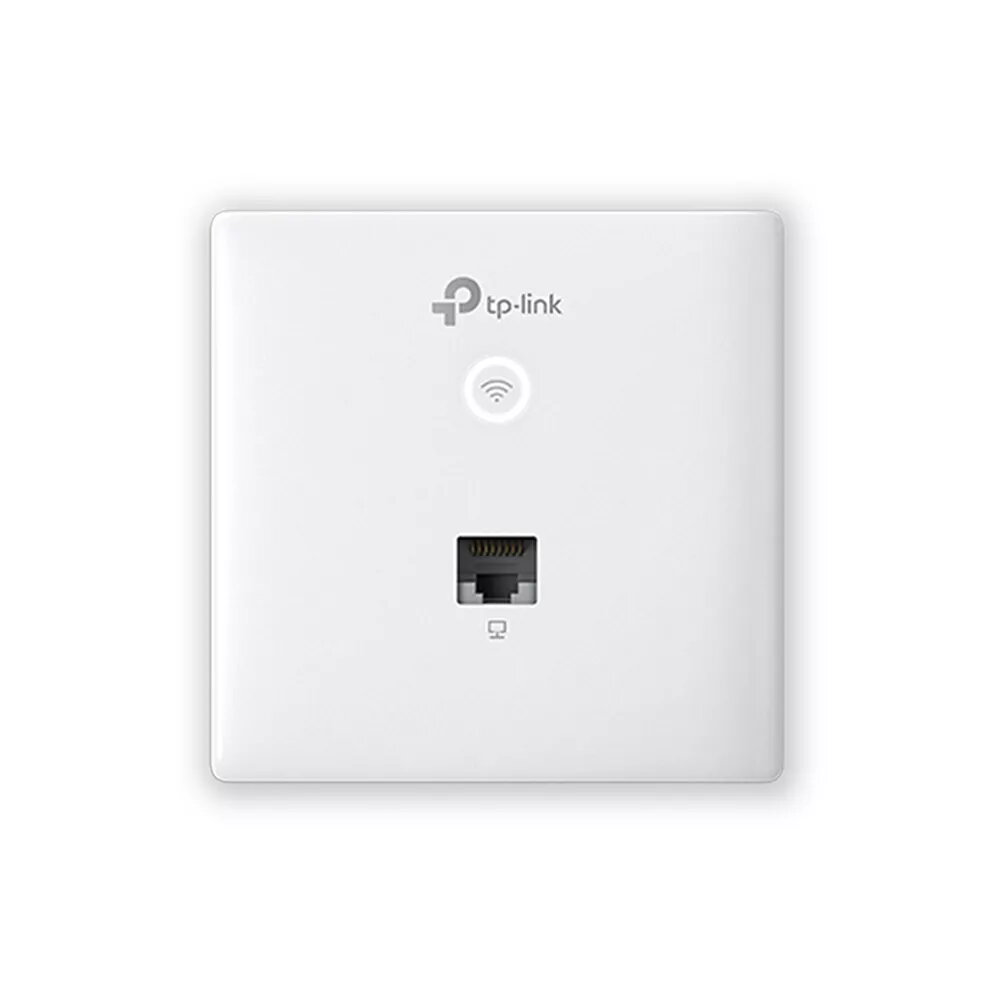

Access Point TP-Link Omada AC1200 Photo 1
Access Point TP-Link Omada AC1200 Photo 2
Access Point TP-Link Omada AC1200 Photo 3
Access Point TP-Link Omada AC1200 Photo 1
Access Point TP-Link Omada AC1200 Photo 2
Access Point TP-Link Omada AC1200 Photo 3
payment

Sale OUT! Discount 3%

You save: 1.50 €

Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Access Point TP-Link Omada AC1200 Dual Band Wi-Fi 802.11ac

{{email}}
You keep track of price changes

Access Point TP-Link Omada AC1200 Dual Band Wi-Fi 802.11ac

{{email}}
Usual Price: 58.99 €
Your Price:
{{selectedOffer.price | formatAmount}}
The discount is valid from 22.05.2026 to 21.06.2026

Short description

The TP-Link Omada AC1200 is a wall-plate access point that supports dual-band Wi-Fi with a maximum data transfer rate of 1167 Mbit/s. It features advanced security protocols including WPA2-PSK and supports Power over Ethernet (PoE) for easy installation. With Ethernet LAN data rates of up to 1000 Mbit/s, this device is ideal for high-speed internet access in various environments.
Available at price 57.49 €: 39 pcs.
Total available for order: 273 pcs.
Warranty: 2 Years
SKU: 3665319
delivery
to the Customer Service Center at Kengaraga 2b, Riga
18.06.2026 {{selectedOffer.officeDeliveryString}}
free
Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
18.06.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
25.06.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.51 kg)
Parcel couriers
Unisend / DPD Paku skapis / Omniva / Latvijas Pasts pakomāts / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa
25.06.2026 {{selectedOffer.parcelStationDeliveryString}}
From 2.49 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

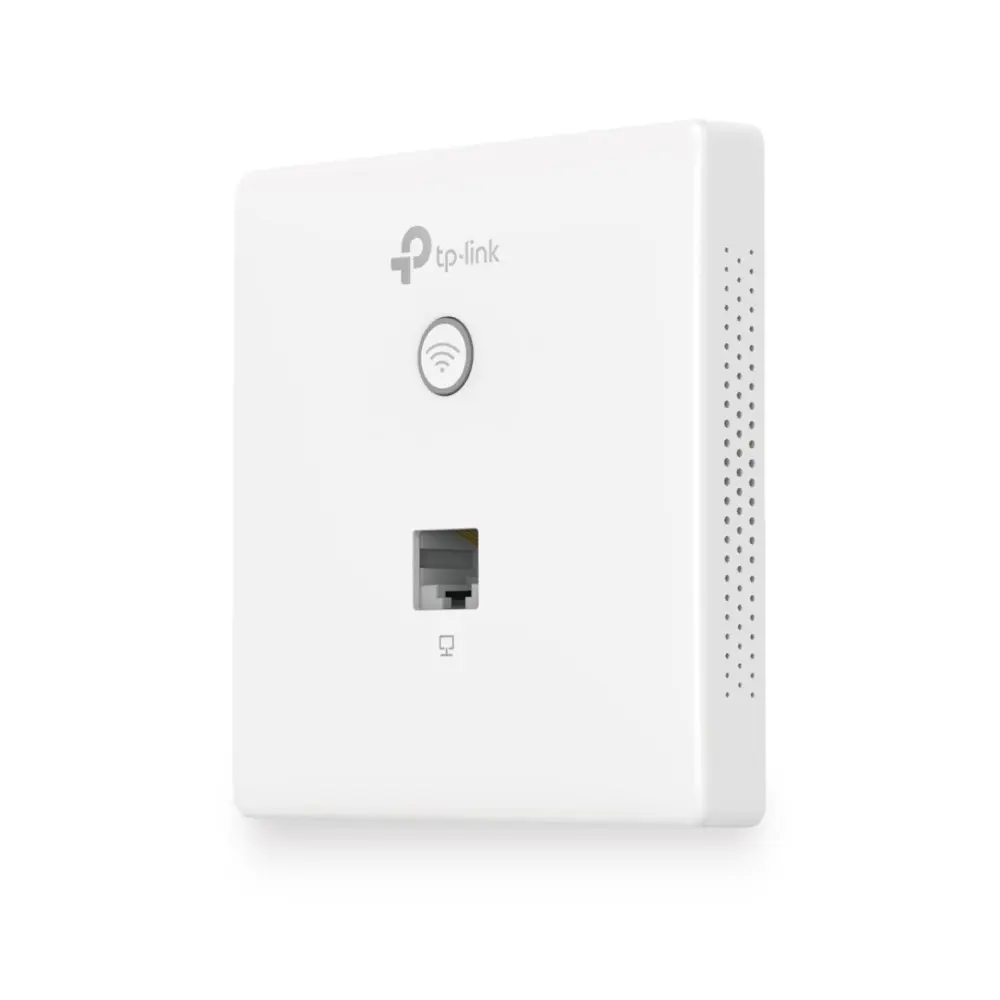

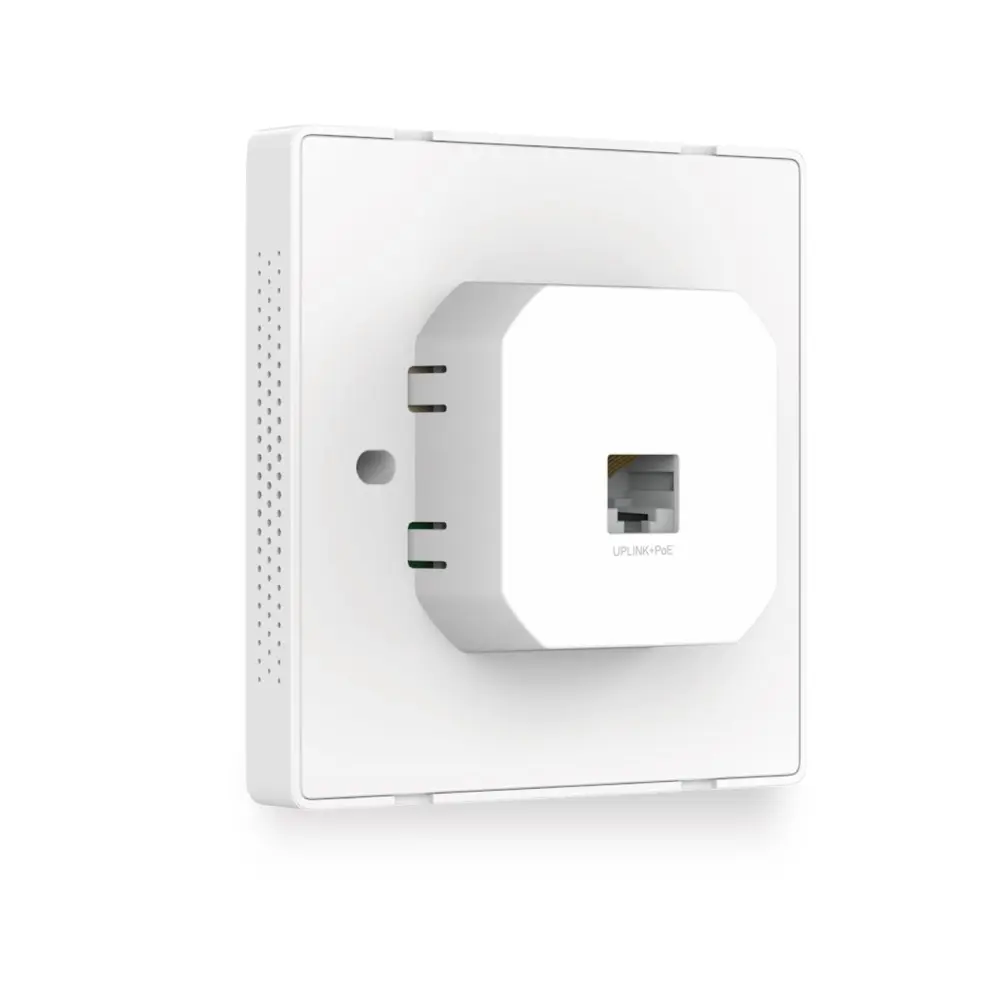

Omada EAP230-Wall is a wall-mounted AC access point with an ultra-thin 11 mm profile designed for environments with multiple separate rooms such as hotels, offices and dormitories. Installed in each room, it provides a private high-speed Wi‑Fi connection and includes a Gigabit Ethernet port for fast wired transmission. The unit supports 802.11ac Wave 2, dual-band operation and Power over Ethernet for simplified deployment, and integrates with the Omada SDN platform for centralized business network management.

Advantages

The wall-mounted form factor matches the size and shape of a light switch or power outlet faceplate to blend into room interiors. MU‑MIMO and dual-band 2.4 GHz/5 GHz support enable simultaneous high-speed connections for multiple users and devices with combined wireless rates up to 1200 Mbps. Built-in Gigabit port ensures the fastest possible wired throughput, while 802.3af/802.3at PoE eliminates the need for separate power wiring. Integration with Omada SDN and mobile Omada app allows centralized configuration, monitoring and client management.

Key specifications

  • Model: Omada EAP230-Wall
  • Form factor: Wall-mounted, 11 mm thin profile
  • Wireless standard: 802.11ac Wave 2
  • Wireless bands: Dual-band 2.4 GHz and 5 GHz
  • Maximum wireless rate: Up to 1200 Mbps
  • Ethernet: 1 × Gigabit port
  • Power: 802.3af/802.3at Power over Ethernet (PoE)
  • Management: Omada SDN platform and Omada mobile app

How to use

Prepare the wall junction box by removing its existing faceplate, then connect an Ethernet cable to the access point's Gigabit port. Secure the device to the wall using the supplied screws and press the faceplate back into position. Power and data are provided over the connected Ethernet cable if your switch or injector supports 802.3af/802.3at PoE. Configure and monitor the access point using the Omada SDN controller or the Omada mobile app following the in-app setup instructions.

Recommendations

Install one EAP230-Wall unit per room in spaces with separated rooms to provide private Wi‑Fi access. Use PoE-capable switches or PoE injectors for power delivery and integrate devices into the Omada SDN platform for centralized management and consistent policy enforcement.

Specifications

Antennas quantity:
2
Ethernet LAN (RJ-45) ports:
1
Maximum data transfer rate:
1167 Mbit/s
Networking standards:
IEEE 802.3at, IEEE 802.3af, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac
Product colour:
White
All features

Features

Cabling technology:
10/100/1000Base-T(X)
Maximum data transfer rate:
1167 Mbit/s
Frequency band:
2.4 - 5
Networking standards:
IEEE 802.3at, IEEE 802.3af, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac
Quality of Service (QoS) support:
Yes
Rate limiting:
Yes
Ethernet LAN data rates:
1000, 100, 10
Automatic channel selection:
Yes
VLAN support:
Yes
2.4 GHz:
Yes
5 GHz:
Yes
Wi-Fi Multimedia (WMM)/(WME):
Yes
MIMO:
Yes
Automatic channel scanning:
Yes
Band steering:
Yes
MIMO type:
Multi User MIMO
Virtual LAN features:
VLAN mapping, Port-based VLAN
Maximum data transfer rate (2.4 GHz):
300 Mbit/s
Maximum data transfer rate (5 GHz):
867 Mbit/s
Transmitting power (CE):
20 - 23
BeamForming:
Yes
6 GHz:
No

Logistics data

Harmonized System (HS) code:
85176990

Operational conditions

Operating relative humidity (H-H):
10 - 90
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 40
Storage relative humidity (H-H):
5 - 90

Performance

Compatible operating systems:
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Antenna

Antenna type:
Internal
Antenna gain level (max):
3.6 dBi
Antennas quantity:
2
Antenna features:
Integrated antenna

Weight & dimensions

Height:
30.2 mm
Width:
86.8 mm
Depth:
86.8 mm

Packaging content

Quick start guide:
Yes
Mounting kit:
Yes
Quantity per pack:
2 pc(s)

Packaging data

Package weight:
210 g
Package depth:
130 mm
Package height:
47 mm
Package width:
118 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
9 W
Power over Ethernet (PoE):
Yes
Power consumption (max):
25.5 W

Ports & interfaces

WAN connection:
Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports:
1

Security

Security algorithms:
WPA-PSK, WPA, SNMPv2, SNMP, 152-bit WEP, 128-bit WEP, 64-bit WEP, WPA2-Enterprise, WPA2-PSK
MAC address filtering:
Yes
Access Control List (ACL):
Yes
Number of SSID supported:
16
Service Set Identifier (SSID) features:
Multiple SSIDs

Sustainability

Sustainability compliance:
Yes

Design

LED indicators:
Operation
Product colour:
White
Reset button:
Yes
Placement:
Wall

Management features

Web-based management:
Yes
Syslog:
Yes

Certificates

Compliance certificates:
RoHS, CE
