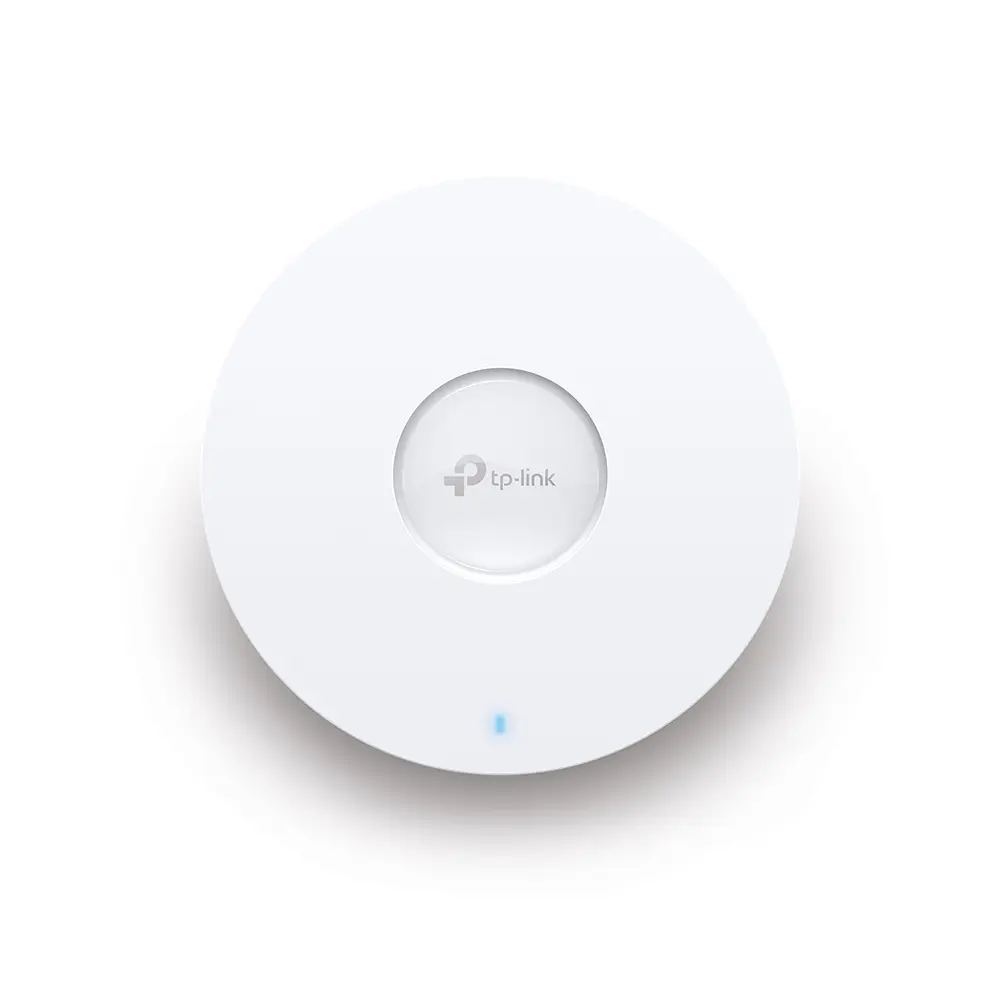

Access Point TP-Link Omada AX1800 Dual Band Wi-Fi 6

EAP610 is an AX1800 ceiling-mount WiFi 6 access point designed for network upgrades in offices, campuses, retail spaces, and hotels. It delivers higher throughput, reduced latency, and increased client capacity through WiFi 6 technologies. The device supports Omada SDN for centralized management with cloud access via Omada Hardware Controller or Software Controller, allowing administrators to monitor and control the entire network from a single interface.

Advantages

WiFi 6 performance with combined speeds up to 1775 Mbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz) enables faster, more stable connections. OFDMA and MU‑MIMO improve efficiency in dense environments, while Omada Mesh provides flexible wireless extension and self‑healing topology. Fast roaming minimizes interruptions when clients move between coverage areas. The unit supports both DC and 802.3at PoE+ for simplified installations and offers refined industrial design for ceiling or wall mounting. Integrated security features include WPA3, captive portal options, up to 16 SSIDs, band steering, load balancing, and airtime fairness.

Key specifications

• Model: EAP610
• WiFi standard: WiFi 6 (802.11ax)
• Maximum combined data rate: AX1800 (up to 1775 Mbps: 574 Mbps @2.4 GHz + 1201 Mbps @5 GHz)
• Spatial streams: Up to 4 streams
• Advanced features: OFDMA, MU‑MIMO, Band Steering, Airtime Fairness
• Security: WPA3, Captive Portal (SMS, Facebook WiFi, Voucher), 802.1x
• Management: Omada SDN with cloud access via Hardware or Software Controller; centralized and multi‑site management
• Mesh: Omada Mesh with self‑organization and self‑healing
• Power: DC and 802.3at PoE+ support
• Form factor: Ceiling/wall mount
• Guest networks: Up to 16 SSIDs

How to use

Mount the EAP610 to a ceiling or wall using the supplied hardware and connect power via DC or an 802.3at PoE+ switch or injector. Add the access point to the Omada network through the Hardware Controller, Software Controller, or Omada Cloud to enable centralized configuration. Configure SSIDs, guest portal options, security settings (WPA3 or 802.1x), and mesh pairing as required. Place additional EAP units and enable Omada Mesh to extend coverage; the system will optimize paths and perform self‑healing automatically. Enable fast roaming and performance features like band steering and airtime fairness to improve client experience in busy environments.

Recommendations

For best results, position the EAP610 centrally in the coverage area and avoid physical obstructions. Use PoE+ capable switches for simplified cabling and enable Omada SDN for centralized monitoring across sites. When deploying in high‑density locations, enable OFDMA, MU‑MIMO, and airtime fairness and plan AP placement to minimize overlap while ensuring continuous roaming coverage.
