Access Point TP-Link Omada AX1800 Dual Band Wi-Fi 6

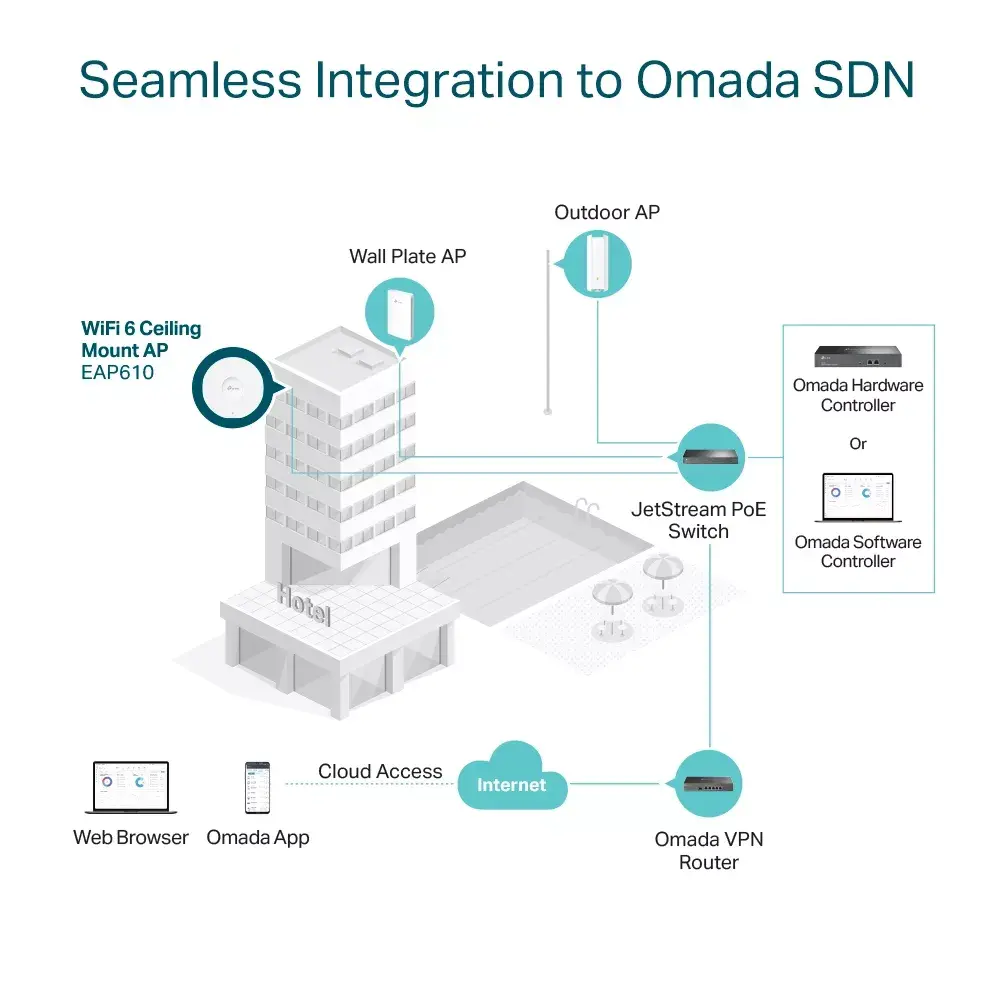

TP-Link Omada AX1800 Dual Band Wi-Fi 6 Access Point (EAP610) is a ceiling-mount wireless access point designed for business environments such as offices, campuses, retail spaces, and hotels. It supports dual-band Wi‑Fi 6 with combined speeds up to 1775 Mbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz), WPA3 security, and 802.3at PoE+ or DC power for flexible installation. The device integrates with the Omada Software Defined Networking (SDN) platform for centralized cloud management and can be managed through Omada hardware or software controllers.

Advantages

The EAP610 delivers higher throughput and capacity compared with previous Wi‑Fi generations thanks to Wi‑Fi 6 features such as 4 spatial streams, 1024-QAM, and extended OFDM symbol times. OFDMA and MU‑MIMO improve efficiency in dense client environments, while Omada Mesh enables wireless expansion with self‑organizing and self‑healing capabilities. Centralized cloud management provides multi‑site control, intelligent monitoring, and simplified network visualization. The device also supports up to 16 SSIDs, Captive Portal with social or SMS login, band steering, load balancing, and airtime fairness.

Suitable for

• Office networks and meeting rooms
• University and school campuses
• Retail stores and shopping areas
• Hotels, hostels and lodging facilities

Key specifications

• Model: TP‑Link Omada EAP610 (EU)
• Wireless standard: IEEE 802.11ax/ac/n/a/g/b

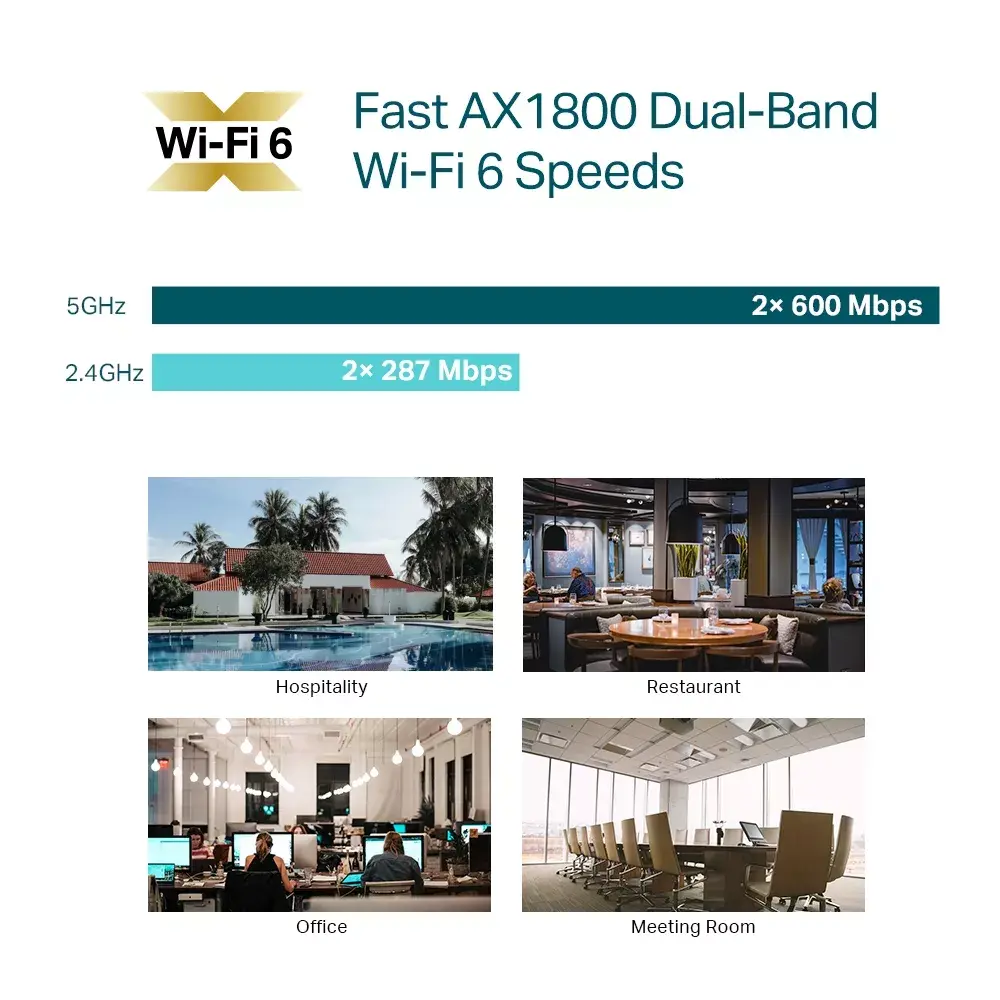

• Maximum data rate: Up to 1775 Mbps (574 Mbps @2.4 GHz + 1201 Mbps @5 GHz)
• Ports: 1 × Gigabit Ethernet (RJ‑45) with 802.3at PoE+ support
• Power options: 802.3at PoE+ or DC input
• Security: WPA3, 802.1x, Captive Portal (Voucher, SMS, Facebook WiFi)
• Mounting: Ceiling or wall mount
• Color: White

How to use

Mount the EAP610 on a ceiling or wall using the included mounting kit and connect it to your network switch or PoE injector via the Gigabit Ethernet port. For PoE installations, supply 802.3at PoE+ power through the Ethernet cable; alternatively, use the DC input. Adopt the access point into the Omada Controller (hardware or software) or the Omada Cloud to configure SSIDs, security settings, captive portal options, and mesh topology. Use the controller interface to monitor performance, apply firmware updates, and manage multiple sites from a single dashboard.

Usage recommendations

Place the access point centrally in the coverage area and avoid metal obstructions. For high client density locations, enable OFDMA and MU‑MIMO, configure multiple SSIDs as needed, and use Omada Mesh to extend coverage to areas that are difficult to cable. Use WPA3 where client devices support it to improve security.
