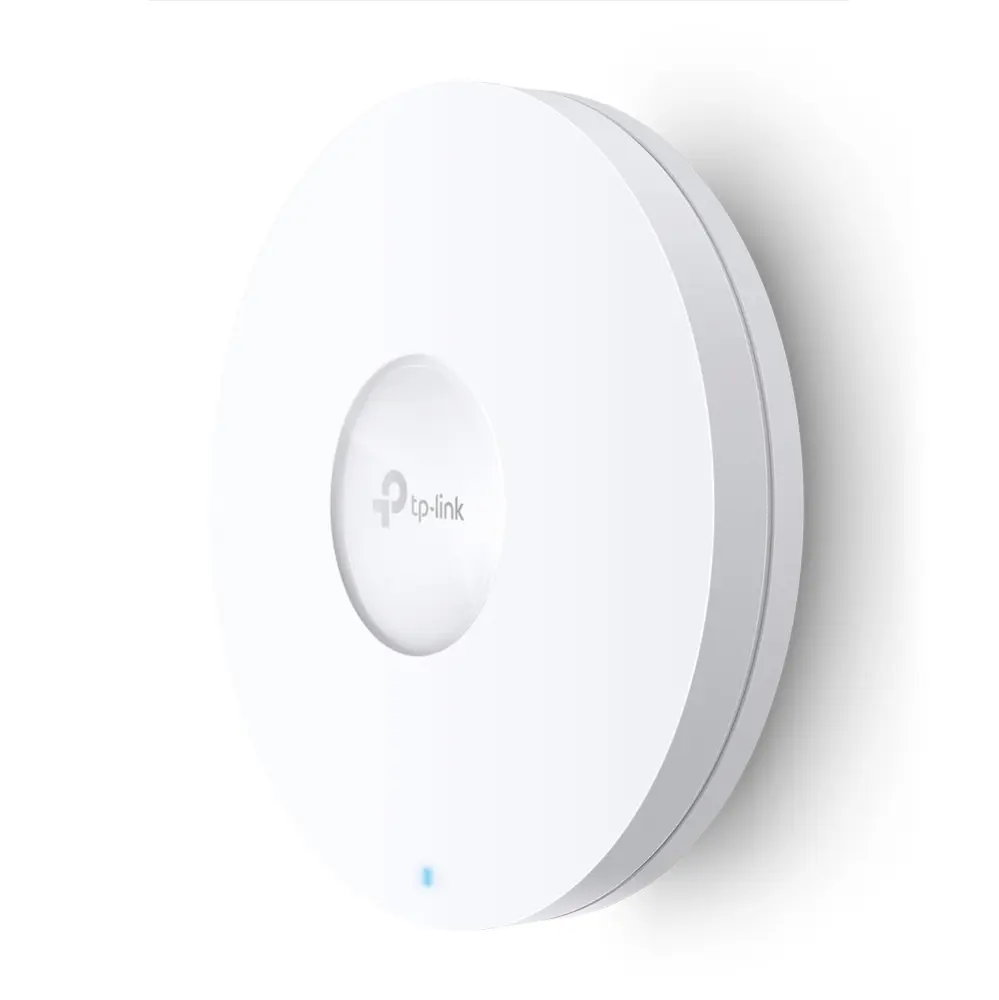

Access Point TP-Link AX1800 EAP620 HD V3 Dual Band Wi-Fi 802.11ax

The TP-Link AX1800 EAP620 HD V3 is a dual-band Wi‑Fi 6 ceiling-mount access point offering combined wireless speeds up to 1775 Mbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz). Designed for high-density environments, it supports PoE+ (802.3at) for flexible deployment and integrates with the Omada SDN platform for centralized cloud management and monitoring. The unit includes one Gigabit Ethernet port and a compact white housing suitable for offices, schools, and public spaces.

Advantages

Provides Ultra-Fast Wi‑Fi 6 performance with simultaneous dual-band throughput and technologies such as OFDMA, MU‑MIMO and 1024-QAM to increase capacity and speed. Integrated into the Omada SDN for Zero-Touch Provisioning, centralized cloud access and intelligent monitoring. Features seamless roaming (802.11k/v) for uninterrupted voice and video, PoE+ (802.3at) support for simplified installation, and multiple guest authentication options including SMS and Facebook Wi‑Fi to secure and manage visitor access.

Suitable for

• Offices and co‑working spaces with many simultaneous users
• Schools, lecture halls and campuses requiring centralized management
• Retail and hospitality locations needing secure guest access
• Public indoor areas that need ceiling-mounted, discreet Wi‑Fi coverage

Key specifications

• Wireless standard: IEEE 802.11ax/ac/n/g/b/a
• Dual-band speeds: 5 GHz up to 1201 Mbps; 2.4 GHz up to 574 Mbps (total 1775 Mbps)
• Ethernet: 1 × Gigabit LAN (supports PoE+ 802.3at)
• Management: Omada SDN cloud management, Omada app, Zero-Touch Provisioning
• Roaming: 802.11k/v seamless roaming
• Form factor and colour: Ceiling-mount, white; dimensions approx. 243 × 243 × 64 mm
• Security and guest options: Captive portal, SMS/Facebook/Voucher authentication

How to use

Mount the EAP620 HD V3 on the ceiling at a central location to maximize coverage. Connect the access point to a Gigabit PoE+ switch or injector using an Ethernet cable to provide both power and network connectivity. Use the Omada SDN controller or Omada cloud app for initial Zero‑Touch Provisioning, configuration of SSIDs, security settings and guest portal options. Place additional APs where needed and adopt centralized management to monitor performance and firmware updates.

Usage recommendations

For optimal performance in high-density deployments, enable OFDMA and MU‑MIMO features, plan AP placement to avoid RF overlap, use PoE+ for simplified cabling, and configure the guest portal with appropriate authentication and bandwidth limits.
