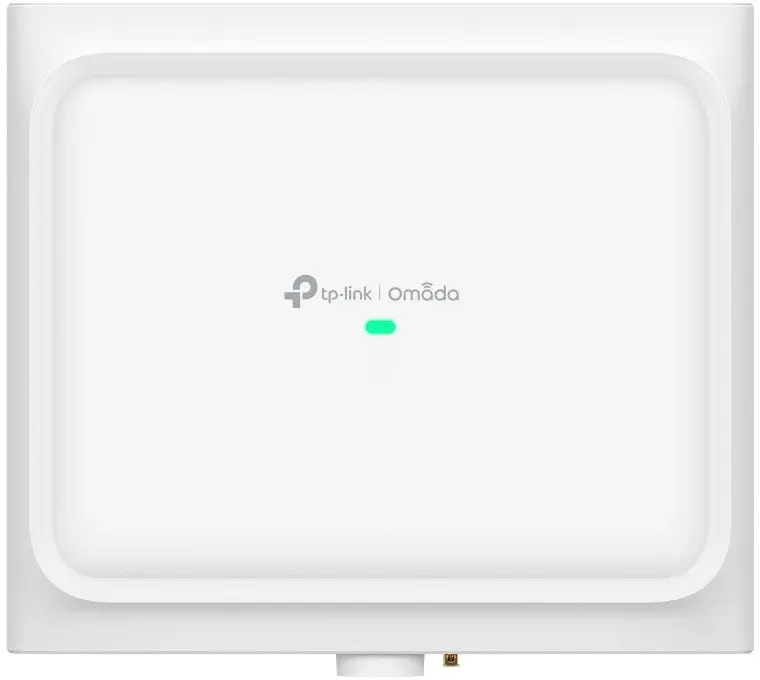

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point 2.4 GHz 5 GHz

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point EAP650 D120-Outdoor provides dual-band wireless connectivity (2.4 GHz and 5 GHz) with a combined maximum data rate of 3000 Mbit/s. Housed in an IP68-rated sealed enclosure and rated for temperatures from -30°C to +70°C, this Access Point is built for demanding environments such as warehouses and outdoor areas where dust and water resistance are required.

Advantages

The device delivers WiFi 6 performance with up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, and includes four built-in high-gain directional dual-band antennas for precise extended coverage over shelf rows and targeted zones. With 802.11k/v/r seamless roaming support and Power over Ethernet (802.3at) deployment options, it supports uninterrupted connectivity for AGVs, handheld scanners and mobile clients while simplifying installation and centralized management via the Omada cloud or Web UI.

Suitable for

• Warehouse aisles and shelf areas requiring targeted WiFi coverage
• Outdoor industrial sites and loading yards needing weatherproof access points
• Environments using AGVs, handheld scanners or mobile workforce devices

Key specifications

• Wireless standard: WiFi 6 (802.11ax), dual-band 2.4 GHz and 5 GHz
• Data rates: 2.4 GHz — 574 Mbit/s; 5 GHz — 2402 Mbit/s; maximum combined — 3000 Mbit/s
• Antennas: 4 × built-in dual-band directional high-gain antennas
• Ingress protection: IP68 weatherproof enclosure
• Operating temperature: -30°C to +70°C
• Power: Supports PoE (802.3at)
• Management and protocols: Omada cloud/Web UI, SNMP, SNMPv2, SNMPv3
• Ethernet ports: 1 × RJ-45
• Colour: White

How to use

Mount the access point in the target location (for example above shelf aisles or outdoors) using appropriate hardware and cable glands to preserve the IP68 seal. Connect a PoE-capable switch or injector to the RJ-45 port to supply power and network connectivity. Adopt the device into your Omada controller via the Omada app or Web UI for central configuration, firmware updates and monitoring. Configure SSIDs, security settings and roaming parameters (802.11k/v/r) according to your network plan.

Usage recommendations

Position the directional antennas to face shelf rows or specific coverage zones for optimal signal reach; maintain line-of-sight where possible and plan AP spacing to avoid coverage gaps. Use PoE power and centralized Omada management for simplified deployment and consistent roaming behavior.
