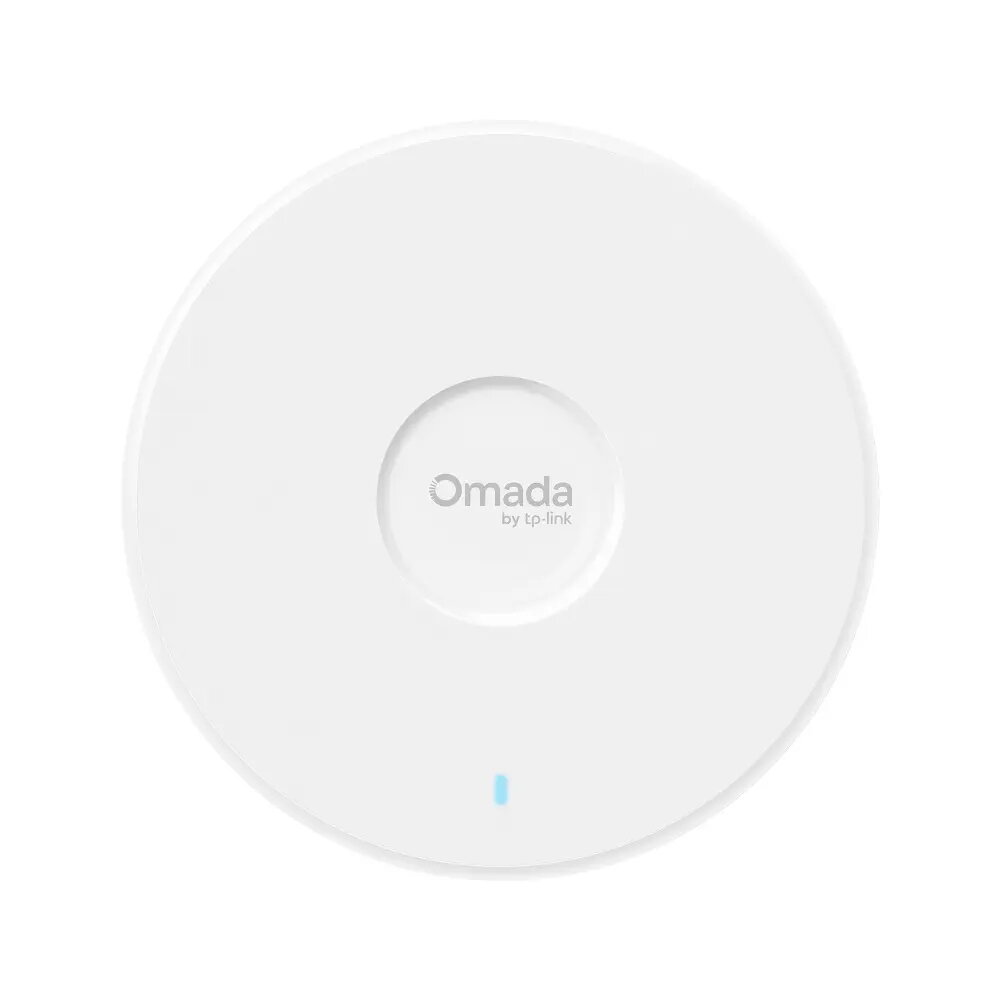

Access Point TP‑LINK EAP770 WiFi7 dual/tri‑band 2.4/5/6 GHz, Multi‑User MIMO, OFDMA, 2.5GbE

TP‑LINK EAP770 is a WiFi7 access point that supports 2.4 GHz, 5 GHz and 6 GHz bands and delivers multi‑band wireless connectivity with high maximum data rates. It implements IEEE 802.11ax features such as Multi‑User MIMO and OFDMA, plus Beamforming, band steering, airtime fairness and QoS to manage client traffic. The device supports wired uplink at Gigabit and 2.5GbE speeds and can be mounted on a ceiling or wall in white housing.

Advantages

The access point provides tri‑band radio operation with dedicated high throughput on the 6 GHz band, Multi‑User MIMO and OFDMA for concurrent multi‑client performance, and Beamforming to improve signal focus. It includes advanced traffic management features—band steering, airtime fairness, QoS and rate limiting—along with VLAN support and mesh AP mode for flexible network deployment. PoE power and compact ceiling/wall mounting simplify installation.

Suitable for

• Small and medium enterprise offices requiring high‑capacity wireless access
• Public spaces and venues with dense client presence
• Multi‑floor deployments using ceiling or wall mounting and mesh networking
• Environments needing VLAN segmentation and QoS for prioritized traffic

Key specifications

• Wireless standard: IEEE 802.11ax (WiFi7 compatible features)
• Bands: 2.4 GHz, 5 GHz, 6 GHz (tri‑band)
• Maximum data rates: 2.4 GHz – 688 Mbps; 5 GHz – 2882 Mbps; 6 GHz – 5765 Mbps
• Multi‑User MIMO and Beamforming supported
• OFDMA spread spectrum method
• Features: Automatic channel selection/scan, band steering, airtime fairness, QoS, rate limiting, VLAN support, MAC filtering, ACL
• Ethernet: 1 x RJ‑45 LAN port with 1000 Mbps and 2.5GbE capable cabling support (10/100/1000/2500Base‑T)
• Power: 12 V DC input and Power over Ethernet (PoE) support
• Mounting: Ceiling or wall installation; internal antenna
• Environmental ranges: Operating temperature 0 to 40 °C; storage temperature −40 to 70 °C; operating humidity 10–90%
• Physical dimensions: 220 x 220 x 32.5 mm; weight 730 g

How to use

Install the EAP770 on a ceiling or wall using the supplied mounting kit and connect a PoE injector or a 12 V DC supply to the DC‑in jack if PoE is not available. Connect the Ethernet uplink to the RJ‑45 port (supports up to 2.5GbE). Use the web‑based management interface or supported controller to perform initial configuration, firmware updates and enable features such as SSIDs, VLANs, QoS and band steering. Place access points to provide overlapping coverage for mesh mode if required.

Usage recommendations

For best performance, enable automatic channel selection and band steering, position the AP centrally for intended coverage, and use VLANs and QoS to separate and prioritise critical traffic. Respect regional transmit power limits when configuring output levels.
