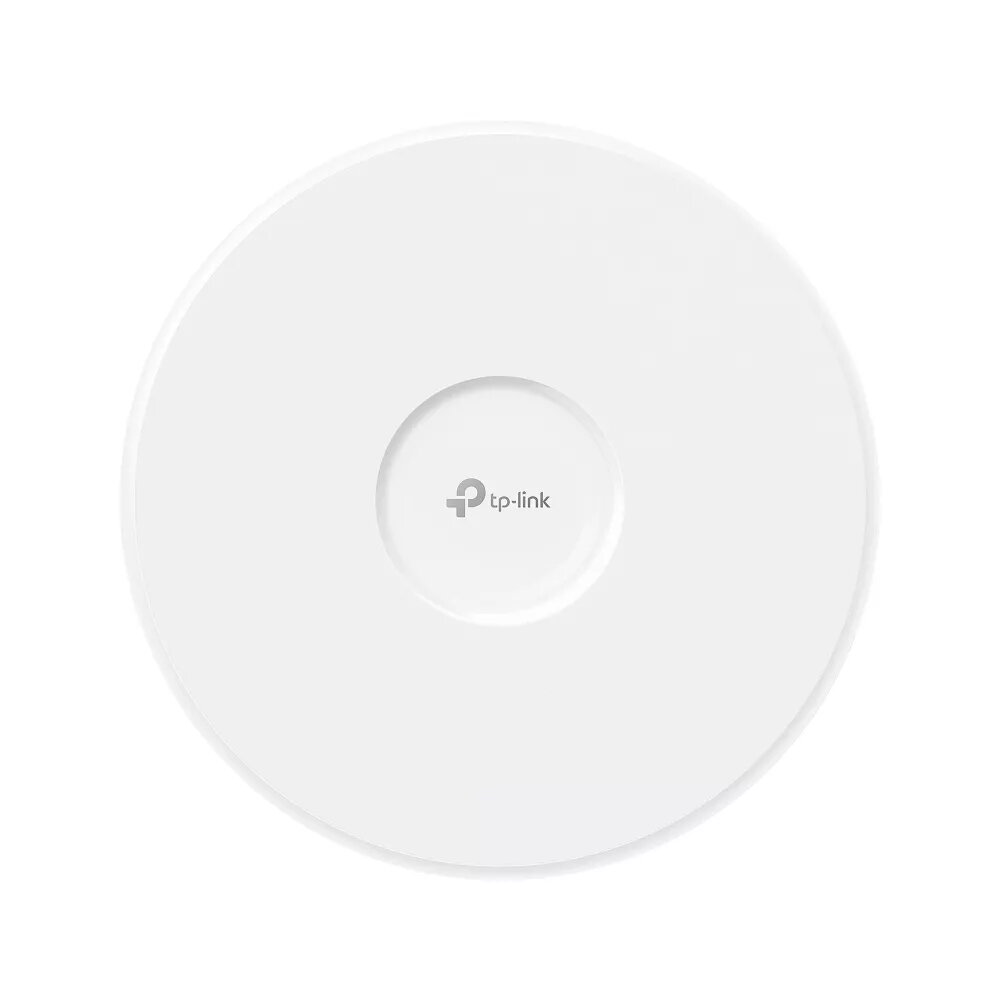

Access Point TP-Link Omada BE9300 Tri-Band Wi-Fi 7

The TP-Link Omada BE9300 (EAP773) is an ultra-thin ceiling-mount tri-band Wi‑Fi 7 access point designed for business environments. It supports 2.4 GHz, 5 GHz and 6 GHz bands with a combined maximum throughput of up to 9.3 Gbps and includes a 10G PoE++ Ethernet port for high-capacity wired backhaul and flexible deployment. The device integrates with the Omada SDN platform for centralized local or cloud management and supports enterprise-grade security features including WPA3 and captive portal options.

Advantages

BE9300 delivers next-generation Wi‑Fi 7 performance with wider 320 MHz channels on the 6 GHz band, higher-density 4096-QAM modulation and Multi-Link Operation (MLO) for lower latency and improved reliability. The built-in 10G PoE++ port enables multi-gigabit wired throughput and simpler installation. Automatic channel selection and power adjustment reduce interference across neighboring access points, while Omada centralized cloud management and mesh capabilities simplify large-scale deployments. The slim circular design (Φ220 mm × 32.5 mm) allows flexible ceiling installation with efficient heat dissipation.

Suitable for

• Offices and corporate campuses
• Retail stores and shopping centers
• Hotels, conference venues and hospitality areas
• Remote-office and branch environments requiring high-bandwidth applications
• Schools and educational facilities

Key specifications

• Model: TP‑Link Omada BE9300 (EAP773)
• Wi‑Fi standard: IEEE 802.11be (Wi‑Fi 7), backward compatible with 802.11ax/ac/n/a/b/g
• Frequency bands: 2.4 GHz, 5 GHz, 6 GHz (tri-band)
• Maximum data transfer rate: up to 9300 Mbit/s (combined)
• Ethernet: 1 × 10G PoE++ (802.3bt) RJ‑45 port
• Security: WPA3, captive portal (SMS, Voucher), 802.1X, rogue AP detection

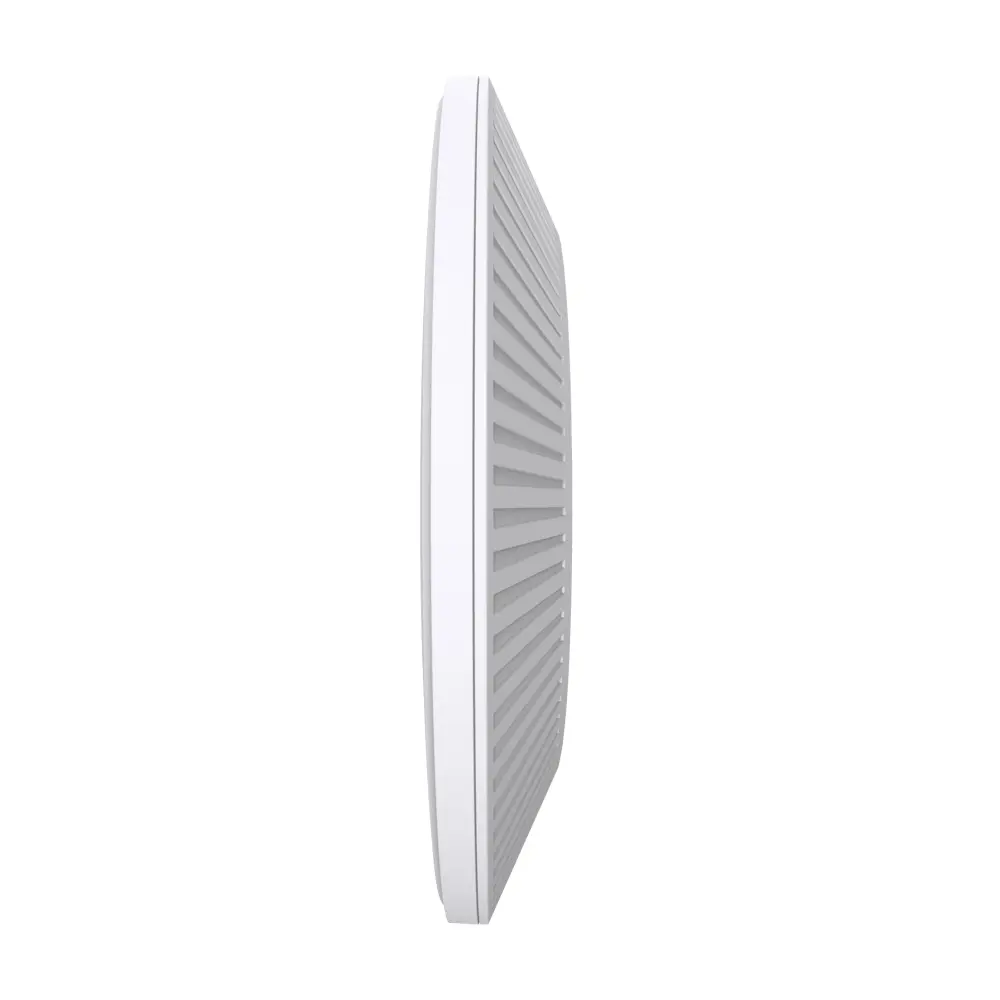

• Form factor: ultra-thin ceiling-mount, Φ220 mm × 32.5 mm
• Color: White

How to use

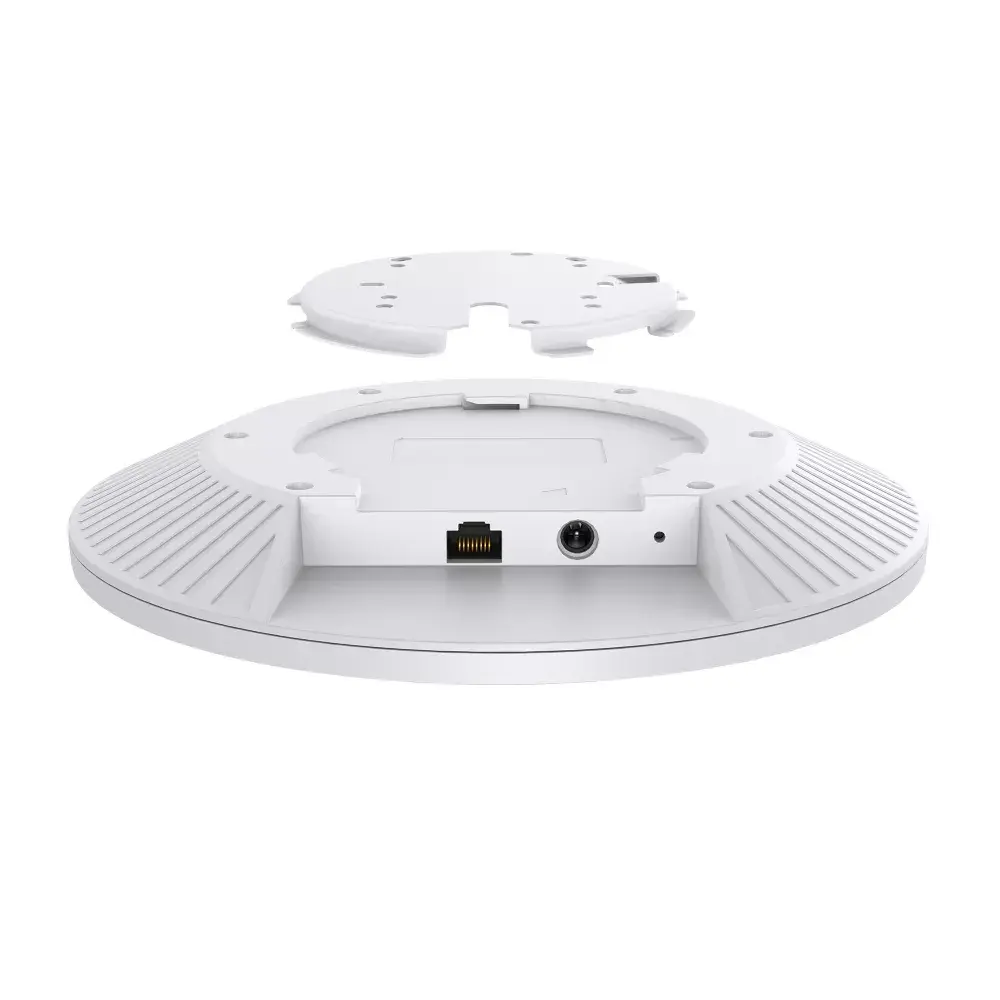

Mount the BE9300 on the ceiling or a suitable flat surface according to the installation guide, connect it to a 10G-capable switch or PoE++ injector that supports 802.3bt, and power the device via the PoE++ port. Use the Omada Controller (local software or cloud portal) to adopt the access point, apply wireless profiles, SSIDs and security settings, and enable mesh or centralized policies as needed. Configure captive portal options or 802.1X authentication for guest and enterprise access control.

Usage recommendations

For best performance in high-density or high-throughput deployments, connect the BE9300 to a 10G backbone, enable automatic channel selection and power adjustment across APs, and use Omada SDN central management to maintain firmware updates, security policies and guest authentication settings.
