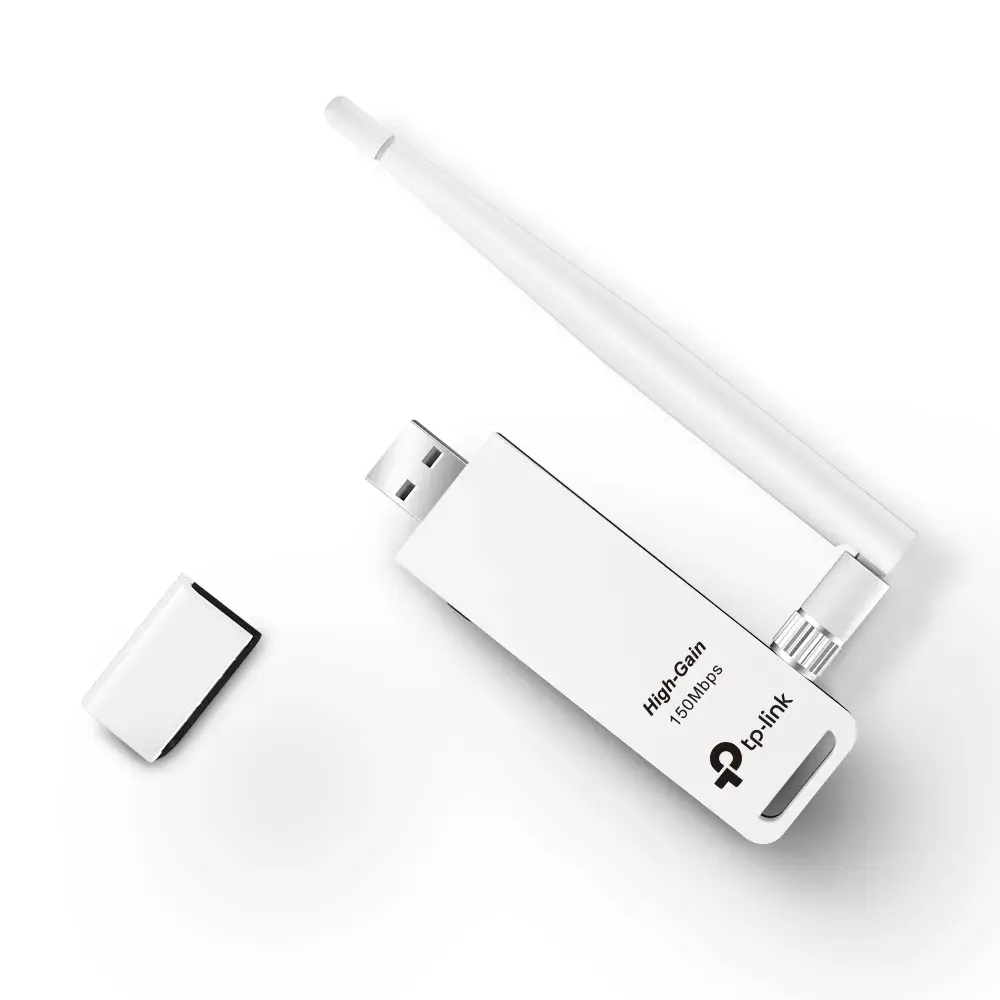

Network Card TP-Link TL-WN722N, WLAN 150 Mbit/s, USB, Wi-Fi 4, 2.4 GHz

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

4 dBi

Operating modes:

Infrastructure mode

Resource CD:

Yes

Harmonized System (HS) code:

85176990

Antenna direction type:

Omni-directional

Transmitting power (FCC):

27

Transmitting power (CE):

20

Sustainability compliance:

Yes

Sustainability certificates:

CE, Federal Communications Commission (FCC), RoHS

Antenna design:

External

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wireless

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN

Host interface: Interface that enables a host controller to communicate with a driver.

USB

Internal: The product is built in.

No

Bandwidth

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.

150 Mbit/s

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Modulation: Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM

WPS push button:

Yes

Wireless LAN features

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Wi-Fi band: The frequency bands the product features.

Single-band (2.4 GHz)

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 4 (802.11n)

WLAN data transfer rates supported:

11, 54, 150

Antenna

Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.

RP-SMA

Antenna:

Yes

Frequency range:

2.4 - 2.4835

Performance

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

64-bit WEP, 128-bit WEP, WMM, WPA-PSK, WPA2-PSK

Windows operating systems supported: Windows vesions wich can be used with the device.

Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Yes

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Design

Product colour: The colour e.g. red, blue, green, black, white.

Black, White

Weight & dimensions

Package weight: Weight of the packaged product.

180 g

Height: The measurement of the product from head to foot or from base to top.

11 mm

Width: The measurement or extent of something from side to side.

93.5 mm

Depth: The distance from the front to the back of something.

26 mm

Package depth: The distance from the front to the back of the packaging.

150 mm

Package height: The distance from the top to the bottom of the packaging.

39 mm

Package width: The distance from one side of the packaging to the other.

200 mm

Operational conditions

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Storage relative humidity (H-H):

5 - 90

Packaging content

Cables included:

USB

Quick installation guide:

Yes
