Gas leakage detector TUYA HS082017 Wi‑Fi, Wi‑Fi connectivity for home gas alarm

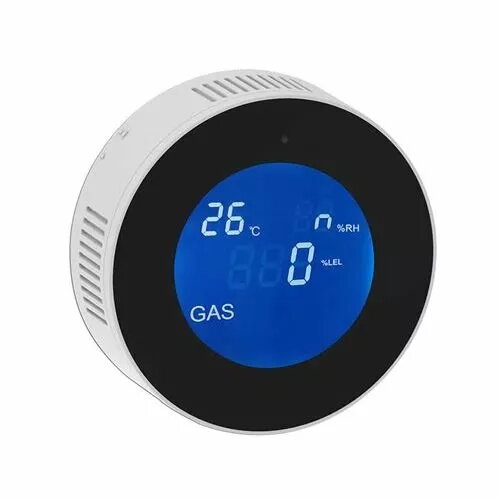

TUYA HS082017 gas leakage detector with Wi‑Fi connectivity provides continuous monitoring of combustible gases in homes and small commercial spaces. The device detects methane, butane and biogas and displays gas concentration, temperature and Wi‑Fi signal strength on a large LCD. It connects directly to the Smart Life app over 2.4 GHz Wi‑Fi for real‑time alerts and remote monitoring without the need for additional control panels.

Advantages

The detector uses a high‑sensitivity gas sensor to trigger an alarm, voice prompts and app notifications when gas concentration reaches 8% LEL; it can also activate electrical shutoff valves via the valve socket. Installation supports wall mounting and placement recommendations for low‑ and high‑density gases to reduce false alarms. The device includes a test button, status indicator and micro‑USB power with a supplied adapter and cable.

Suitable for

• Residential kitchens and utility rooms
• Small commercial premises with gas appliances
• Integration into TUYA/Smart Life smart home setups

Key specifications

• Power supply: DC 5V (micro‑USB); adapter 100–240V 50/60Hz 0.3A
• Operating current: <150 mA
• Alarm response time: <30 s at 8% LEL
• Detected gases: natural gas (methane, butane), biogas
• App: Smart Life (Android, iOS); Wi‑Fi: 2.4 GHz
• Operating temperature: 0°C to +55°C; relative humidity <80% RH; air pressure 86–106 kPa
• Interfaces: micro‑USB power, electrical valve socket; LCD diameter: 60 mm
• Dimensions: 100 × 35 mm; weight: 144 g; mounting: wall
• Device service life (gas detector age): 3 years; warranty: 24 months

How to use

Mount the detector on a wall following the density guidelines: approximately 2 m above the gas source for general mounting, about 0.3 m below the ceiling for low‑density gases, or about 0.3 m above the floor for liquefied gases heavier than air. Connect to a 2.4 GHz Wi‑Fi network and configure the device through the Smart Life app on an Android or iOS device. Power the unit with the supplied micro‑USB cable and adapter, then perform a functional test using the test button and check the LCD for gas concentration, temperature and signal strength.

Usage recommendations

Avoid installing the detector in very high humidity locations (for example bathrooms) and keep it away from paint, oil, alcohol and strong chemicals or cosmetics, as these substances may damage the sensor or cause false alarms. Install within 10 m of the Wi‑Fi router for stable connectivity. Follow local safety regulations when connecting electrical shutoff valves.
