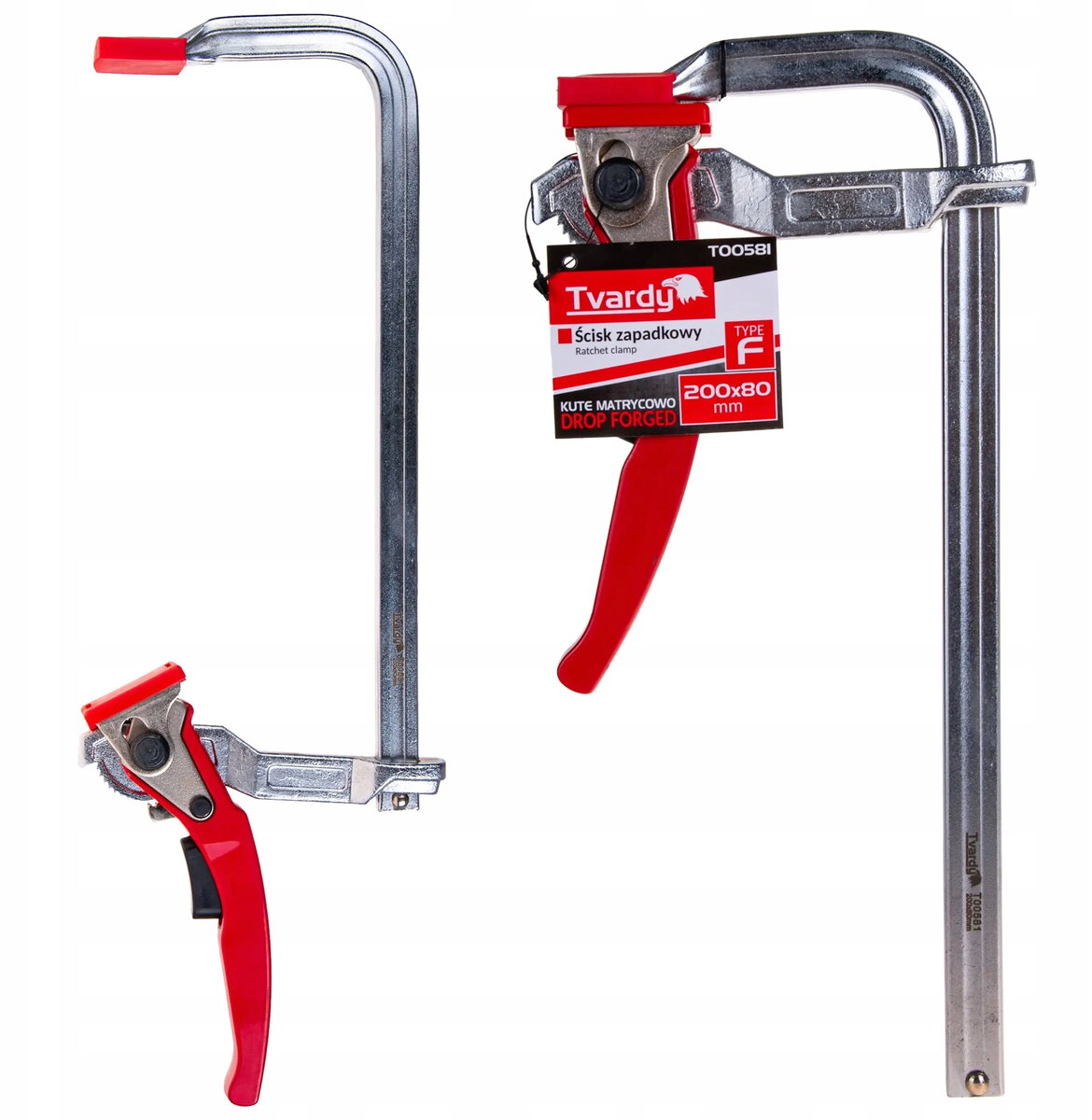

F‑type forged ratchet clamp Tvardy 200x80 mm, throat depth 80 mm, clamping capacity 200 mm

F‑type forged ratchet clamp Tvardy 200x80 mm combines a forged steel body with a ratchet tightening mechanism to deliver controlled, incremental clamping force. The tool has a clamping capacity of 200 mm and a throat depth of 80 mm, making it suitable for securing medium-size workpieces during woodworking, assembly, gluing and light metalworking operations. The ratchet action permits stepwise tightening and easy release, while the forged construction provides improved strength and wear resistance compared with stamped components.

Advantages

The forged construction increases durability and resists deformation under repeated use. The ratchet mechanism allows precise incremental tightening and secure holding without continuous manual force. A compact overall size (200x80 mm) and a throat depth of 80 mm provide access to a variety of clamping positions, and a 200 mm clamping span accommodates common board widths and assembly fixtures. The clamp is designed for repeatable performance and straightforward operation.

Suitable for

• Woodworking: edge gluing, panel assembly and holding parts for sanding or routing
• Workshop assembly: fixture holding and temporary joins during fitting
• Gluing and bonding: maintaining consistent pressure while adhesive cures
• Light metalworking: positioning and holding small metal parts for drilling or fastening

Key specifications

• Clamping capacity: 200 mm
• Throat depth: 80 mm
• Overall dimensions: 200 x 80 mm
• Construction: forged steel body
• Mechanism: ratchet incremental tightening with quick-release

How to use

Position the clamp so the fixed jaw bears against one side of the workpiece and the sliding jaw aligns with the opposite side. Engage the ratchet mechanism and apply incremental tightening until the required clamping pressure is achieved. To release, operate the ratchet quick-release lever or mechanism and slide the jaw back to remove the clamp. Use protective pads if working with finished or soft surfaces to avoid marring.

Usage recommendations

Inspect the clamp before each use for visible wear or damage to the ratchet teeth and forged body. Use the clamp within its 200 mm capacity and 80 mm throat depth limits; avoid using excessive force beyond intended applications. Clean debris from the ratchet mechanism periodically and apply light lubrication to maintain smooth operation. Store the clamp in a dry place to reduce corrosion risk.
