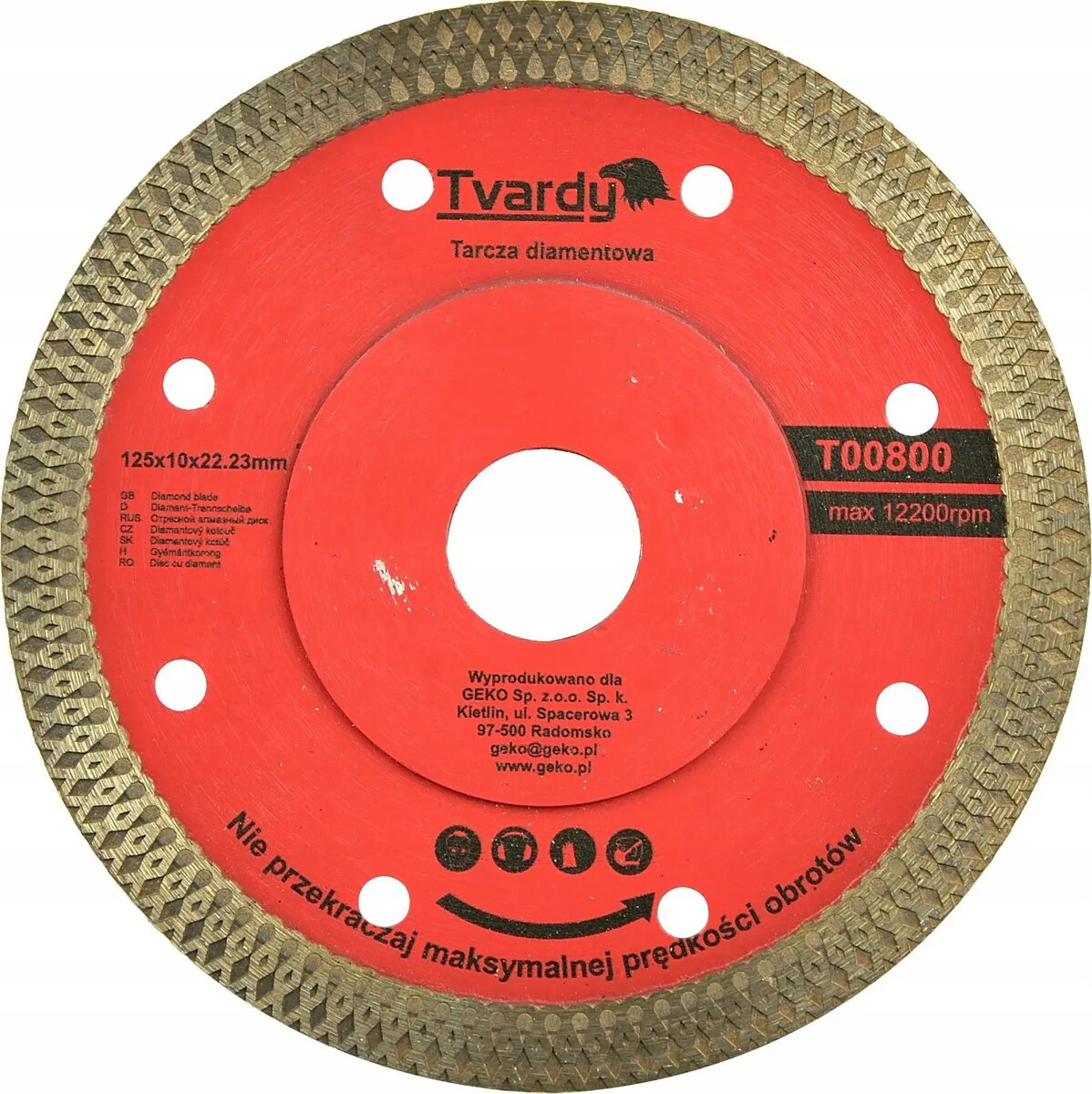

Diamond Cutting Disc Tvardy 125×10×22.23 mm for Porcelain Tiles, Universal, Model T00800

Tvardy diamond cutting disc 125×10×22.23 mm (model T00800) is a universal blade engineered for cutting porcelain tiles and other hard tile materials. The disc has a 125 mm overall diameter, a 10 mm cutting width and a 22.23 mm bore, making it compatible with many angle grinders and tile cutting machines that accept this flange size. It is intended for precise cutting of gres, porcelain and similar ceramic or stone-based tiles in renovation and construction environments, supporting both wet and dry cutting techniques when used according to tool manufacturer recommendations.

Advantages

The diamond-segment rim offers consistent cutting performance and increased lifespan compared with non-diamond abrasives. A 10 mm cutting width provides a balance between cutting speed and stability, reducing chipping on brittle materials such as porcelain. The standard 22.23 mm bore ensures wide compatibility with common power tools and accessories, simplifying mounting and replacement. The universal design allows use in a variety of tile cutting tasks, from straight cuts to trimming and fitting around fixtures.

Suitable for

• Cutting porcelain tiles (gres) and dense ceramic tiles
• Trimming stone-based floor and wall tiles during renovation
• On-site tile cutting with compatible angle grinders and tile cutters
• Wet or dry cutting operations where tool and safety guidelines allow

Key specifications

• Disc diameter: 125 mm
• Cutting width (segment height): 10 mm
• Bore diameter: 22.23 mm
• Material suitability: porcelain tiles, gres, dense ceramic and similar hard tile materials
• Cutting mode: suitable for wet and dry cutting when used per equipment guidance

How to use

Mount the disc on an angle grinder or tile cutter with a matching 22.23 mm flange and ensure the tool is unplugged or the battery removed during installation. Confirm rotation direction indicated on the disc aligns with the tool. When cutting, secure the workpiece and make steady, controlled passes—do not force the blade. For wet cutting, supply appropriate coolant or water flow to reduce dust and heat; for dry cutting, use a tool with proper dust extraction and allow the blade to cool periodically. Follow the power tool manufacturer’s instructions for RPM limits and safe operation.

Usage recommendations

Use personal protective equipment including eye protection, hearing protection and a dust mask or respirator when cutting. Test cuts on spare material can help set correct feed rate and cutting depth. Replace the disc if excessive wear, vibration or damage becomes apparent.
