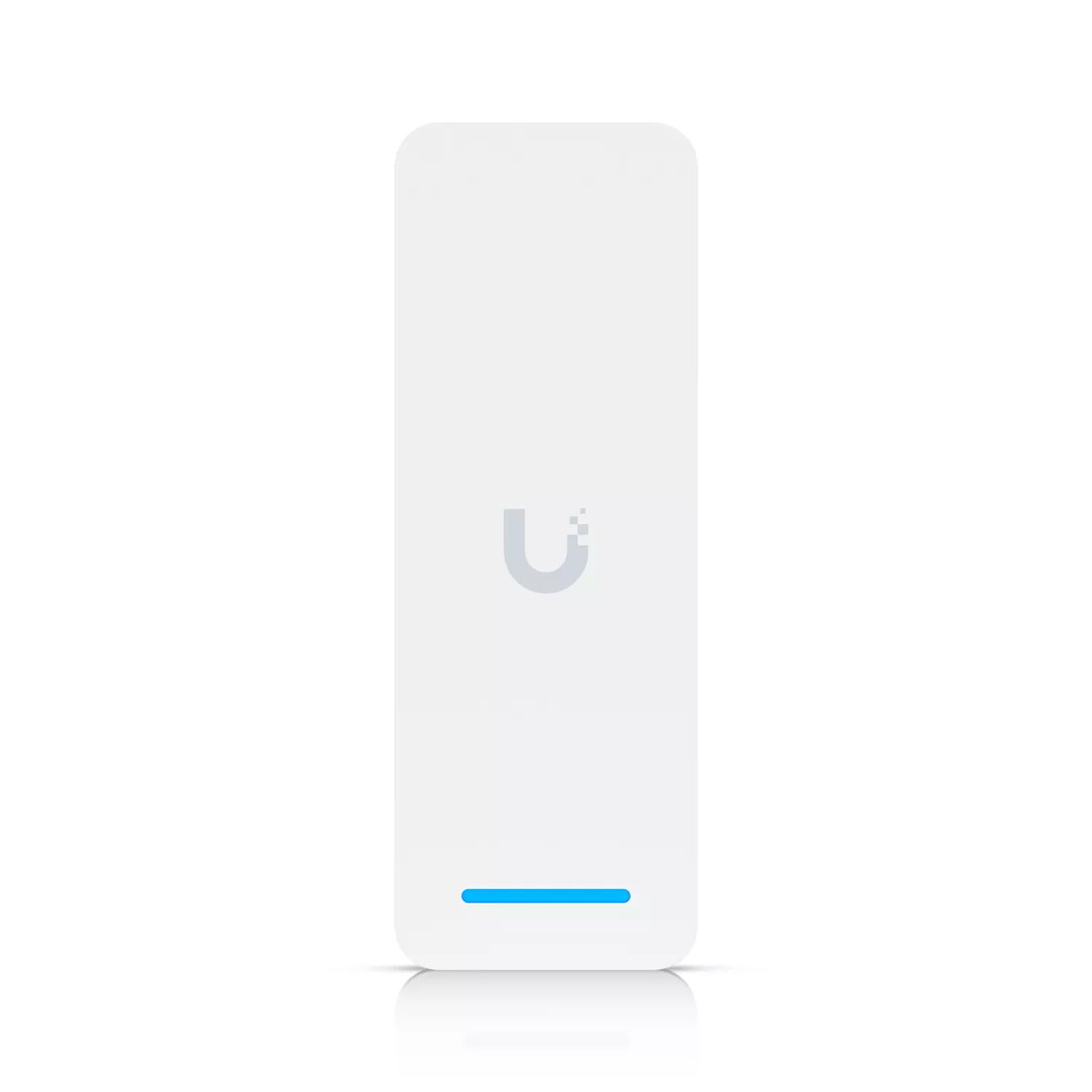

Access Control Reader Ubiquiti Access Ultra White

The Ubiquiti Access Ultra White is a tamper-resistant access reader with a built-in hub that provides complete single-door entry control from a single device. It is compact and intended for integration into access control systems where reliable ID reading and secure connection to a network are required. The reader supports 10/100 Mbit/s Ethernet LAN and operates on 12 V DC with a maximum current draw of 1 A and a maximum power consumption of 18 W. Its compact dimensions make it suitable for a variety of installation locations.

Advantages

The device combines reader and hub functionality in one unit, reducing the number of components needed for a single-door setup. Tamper-resistant design improves physical security against interference. Support for standard Ethernet speeds ensures compatibility with typical network infrastructures, and the low-voltage DC operation simplifies power requirements for installation.

Suitable for

• Single-door access control in offices and small commercial premises
• Integration into IP-based security and building management systems
• Locations requiring a compact, tamper-resistant reader

Key specifications

• Network: Ethernet LAN 10/100 Mbit/s
• Power: 12 V DC, max. 1 A
• Maximum power consumption: 18 W
• Dimensions (W×D×H): 45 × 37.5 × 126 mm
• Form factor: compact tamper-resistant reader with built-in hub

How to use

Mount the Access Ultra White at the chosen door according to installation guidelines, connect its Ethernet port to the network and supply 12 V DC power. Configure the device in the access control system or Ubiquiti management interface to register credentials and set door unlocking parameters. Verify tamper detection and network connectivity after installation.

Использование и уход

Installations should follow local electrical and security standards; perform regular checks of the device mounting, network connection and power supply to ensure continuous operation.
