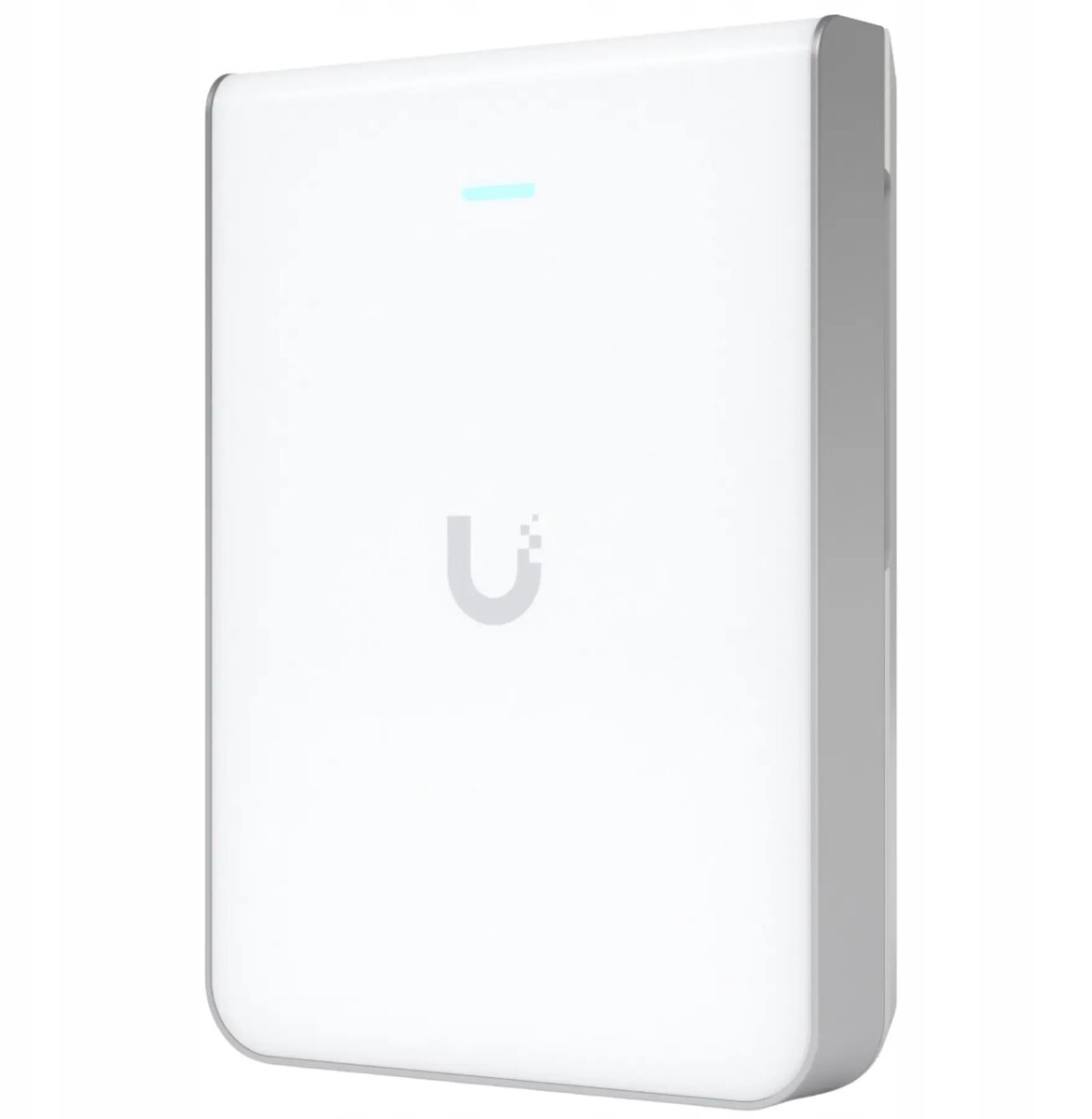

Wall-mount Access Point UBIQUITI UQ-U7-PRO-WALL — Wi‑Fi 7 tri-band 2.4/5/6 GHz, 688 + 4324 + 5764 Mbps

UBIQUITI UQ-U7-PRO-WALL is a wall-mount Wi‑Fi 7 access point that supports tri-band operation across 2.4 GHz, 5 GHz and 6 GHz bands. The device provides high aggregate throughput — 688 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz and 5764 Mbps on 6 GHz — and is designed for environments that require high client density, low latency and improved spectrum availability on the 6 GHz band. The compact wall-mounted form factor allows installation in residential buildings, offices, and commercial spaces where ceiling mounting is impractical or where wall placement offers better coverage and cable management.

Advantages

The access point delivers tri-band Wi‑Fi 7 performance with separate high-speed links on each band, enabling simultaneous multi-user connections and efficient traffic distribution. Built for high-density environments, it supports throughput and channel widths that reduce congestion and improve responsiveness for latency-sensitive applications. Wall-mount installation simplifies deployment and cable routing while maintaining a discreet profile suitable for mixed-use interiors.

Suitable for

• High-density office areas and open-plan workspaces
• Multi-dwelling units and apartment complexes requiring wall-mounted coverage
• Small to medium-sized commercial premises with dense client connectivity
• Low-latency applications such as video conferencing, cloud services and real-time collaboration

Key specifications

• Wireless standard: Wi‑Fi 7 (tri-band support)
• Operating frequencies: 2.4 GHz, 5 GHz, 6 GHz
• Listed throughput: 688 Mbps (2.4 GHz), 4324 Mbps (5 GHz), 5764 Mbps (6 GHz)
• Form factor: wall-mount access point
• Multi-user capability for simultaneous client connections
• Designed for high-density and low-latency environments

How to use

Mount the access point securely on a suitable interior wall using the included mounting hardware, ensuring the device is positioned for optimal line-of-sight to served areas. Connect power and network via the designated Ethernet port and configure settings through the Ubiquiti management interface or supported network controller according to site requirements. Assign SSIDs, security settings and band steering as needed to balance client load across 2.4 GHz, 5 GHz and 6 GHz bands. Verify channel selection and transmit power to minimize interference in crowded RF environments.

Usage recommendations

Place the access point at a height and orientation that maximizes coverage while avoiding physical obstructions. For optimal performance on the 6 GHz band, ensure client devices support Wi‑Fi 7 or 6 GHz operation and monitor spectrum use to select clear channels; consider combining multiple units for full coverage in larger or denser installations.
