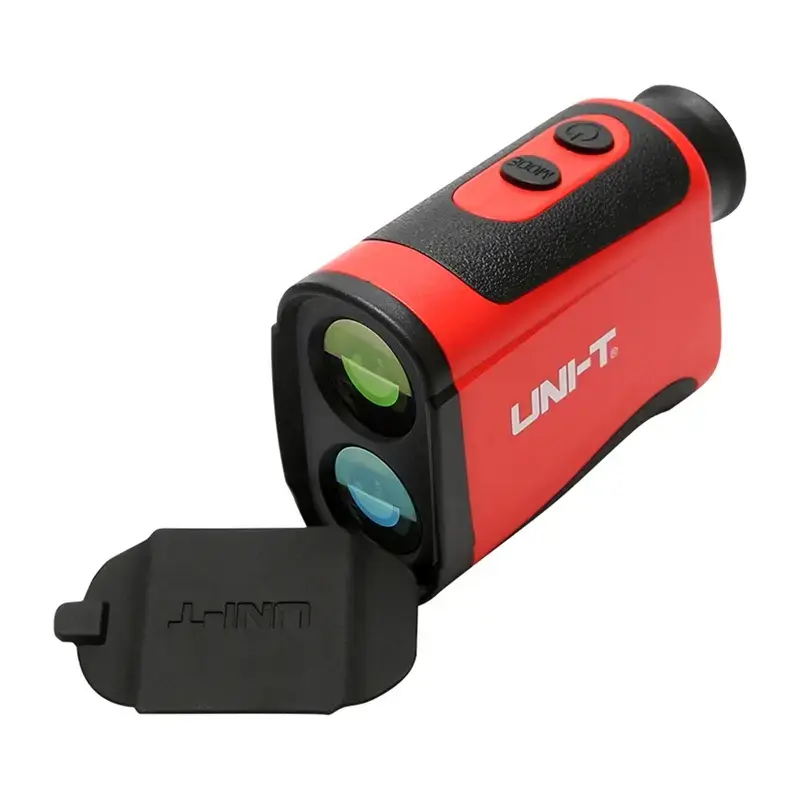

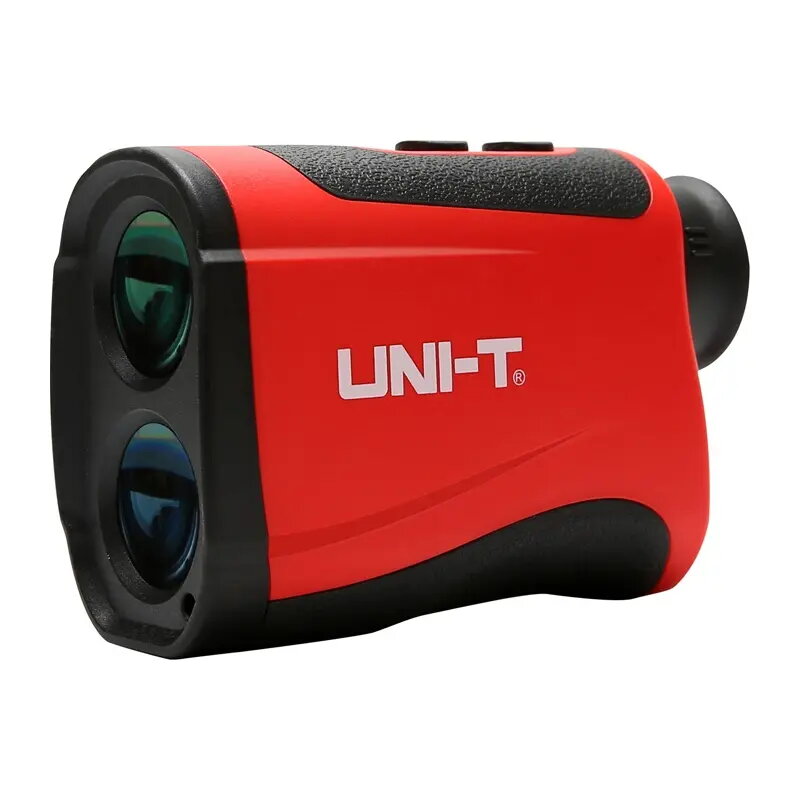

Uni-T LM600 Laser Distance Meter

The Uni-T LM600 Laser Distance Meter is a professional-grade rangefinder engineered for high-precision measurements of distance, height, angle, and speed. Utilizing an eye-safe pulsed laser, this device is designed to provide reliable data for field operations, engineering projects, and outdoor activities. Its compact and ergonomic design, combined with a high-quality optical system featuring 6x magnification, allows users to target objects accurately and obtain results quickly via the integrated LCD display.

Advantages

The primary benefit of the Uni-T LM600 is its versatility, as it combines multiple measurement functions into a single, portable unit. The inclusion of a 6x magnification lens ensures that distant targets can be clearly identified, while the pulsed laser technology maintains high accuracy across its operational range. The device is built for durability and ease of use, featuring an intuitive interface that allows for rapid switching between measurement modes. Furthermore, the rechargeable lithium-ion battery provides long-lasting performance, reducing the need for frequent power source replacements during extended field work.

Suitable for

• Construction site surveying and planning
• Engineering and infrastructure measurements
• Outdoor sports such as golf and hunting
• Navigation and distance estimation
• Interior design and layout planning

When it may not be suitable

This device is optimized for outdoor and long-range applications and may not be the most efficient tool for short-range indoor interior measurements where a standard laser tape measure would be more convenient. Additionally, it is not intended for use in high-precision laboratory settings requiring sub-millimeter accuracy.

Key specifications

• Measurement range: 5 to 600 yards
• Distance accuracy: ±1 yard ± 0.2% of distance
• Magnification: 6x
• Lens diameter: 25 mm
• Speed measurement range: 0 to 300 km/h
• Angle measurement range: ±45 degrees
• Power supply: 3.7V 1500mAh Li-ion battery
• Weight: 230 g
• Dimensions: 114 mm x 76 mm x 48 mm

How to use

To begin using the Uni-T LM600, ensure the internal battery is fully charged using the provided USB cable. Power on the device and look through the eyepiece to focus on your target using the adjustable lens. Select the desired measurement mode—such as distance, speed, or angle—using the control buttons. Aim the laser at the target and press the measurement button to capture the reading, which will be displayed instantly on the internal LCD screen. The device will automatically power off after a period of inactivity to conserve battery life.

What to consider before purchase

• Verify that the measurement range meets your specific project requirements.
• Ensure the device is suitable for your intended environment, such as outdoor field use.
• Check the compatibility of the charging method with your existing equipment.

Usage recommendations

For optimal accuracy, keep the device steady during measurement, ideally using a tripod if available. Always ensure the lens is clean and free of debris to maintain clear visibility through the 6x magnification system.
