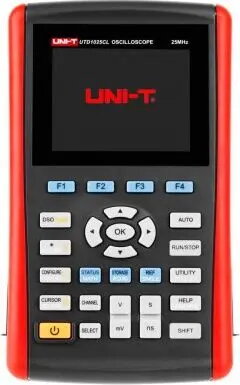

Oscilloscope Unit UTD1025CL 25 MHz, 2-channel bench instrument

Unit UTD1025CL is a 25 MHz digital oscilloscope with two input channels designed for bench testing and troubleshooting of electronic circuits. The instrument provides clear signal visualization, waveform capture and basic analysis functions in a compact footprint suitable for education, hobby electronics and light professional use. With a 25 MHz bandwidth and dual-channel monitoring, it supports common diagnostic tasks such as observing signal shape, timing relationships and transient events.

Advantages

The oscilloscope offers a straightforward user interface, two independent analog channels and sufficient bandwidth for many low- to mid-frequency applications. It includes basic triggering and measurement capabilities that simplify waveform capture and reduce setup time. The compact, bench-friendly design and standard input connectors allow easy integration into lab benches, classroom setups and repair stations.

Suitable for

• Education and laboratory demonstrations
• Hobby electronics and DIY projects
• Basic circuit troubleshooting and repair
• Signal verification in low-frequency analog and digital systems

Key specifications

• Bandwidth: 25 MHz
• Number of channels: 2 analog channels
• Display: integrated built-in screen for waveform viewing
• Trigger types: basic edge triggering and common trigger controls
• Sampling and capture: appropriate sample rate for 25 MHz bandwidth signals
• Inputs: standard BNC input connectors for probe connection
• Form factor: benchtop instrument with compact housing

How to use

Connect the oscilloscope probes to the two BNC input connectors and attach the probe tips to the circuit nodes you want to observe. Power on the unit and use the channel enable controls to activate the required input channels. Adjust the vertical scale (volts/div) and horizontal timebase (seconds/div) to fit the waveform on the display. Use the trigger controls to stabilize repetitive signals and capture transient events by setting an appropriate trigger level and slope. Employ the built-in measurement functions to read amplitude, frequency and timing parameters as needed.

Usage recommendations

For accurate measurements, use properly compensated probes and set the probe attenuation factor in the oscilloscope settings. Observe safety practices when probing live circuits: avoid shorting adjacent nodes and keep probe ground connections concise. For signals near the bandwidth limit, reduce the timebase and verify sampling settings to ensure waveform fidelity.
