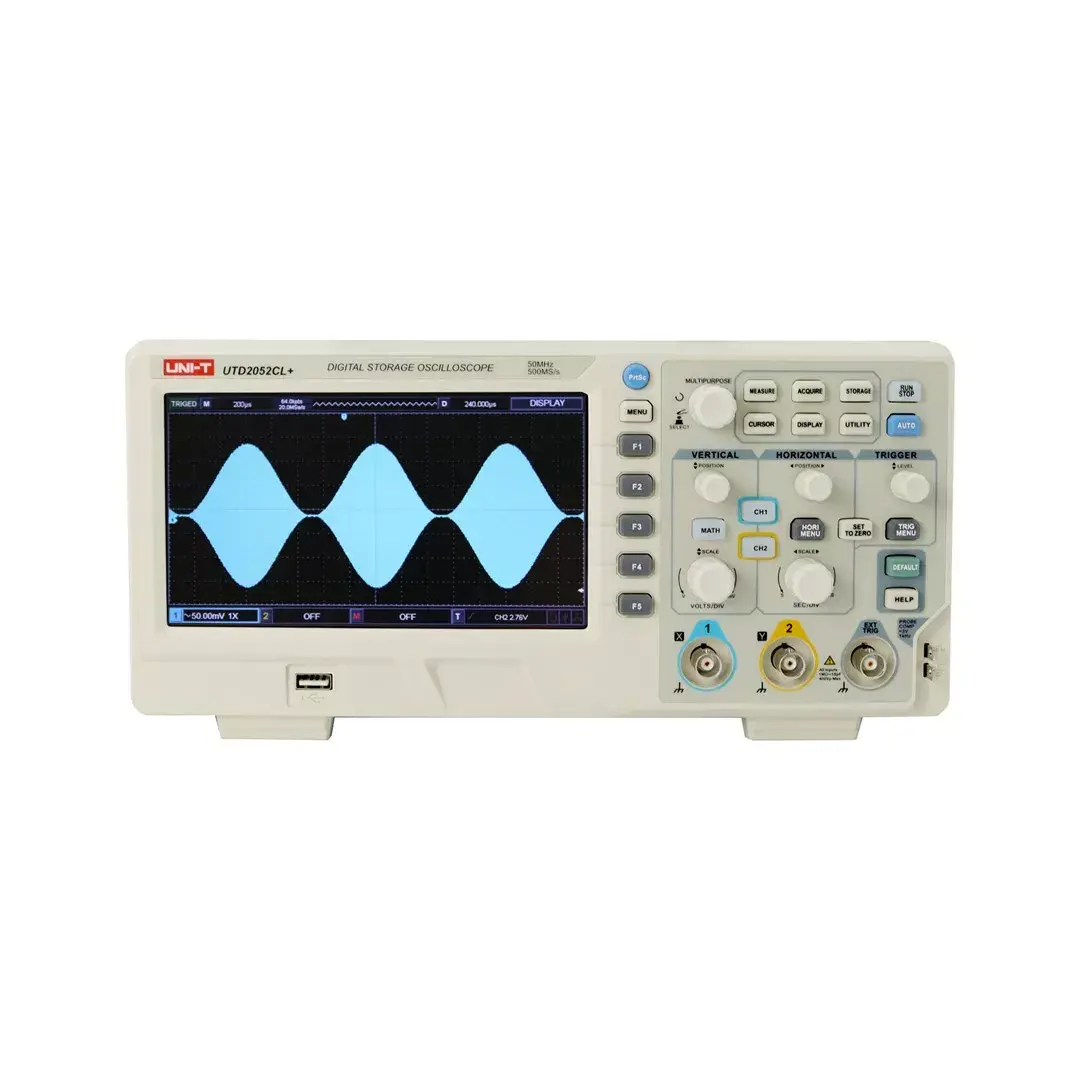

Oscilloscope Unit UTD2052CL+ — digital 2-channel bench oscilloscope, model UTD2052CL+

The Unit UTD2052CL+ is a digital 2-channel bench oscilloscope designed to capture and display electrical waveforms for testing, diagnostics and development work. It shows voltage versus time on a color screen, provides adjustable triggering and basic measurement functions, and is intended for use in laboratories, workshops and field troubleshooting. The oscilloscope supports routine signal observation and analysis across two independent input channels.

Advantages

The UTD2052CL+ combines two input channels with a clear visual display and intuitive controls for straightforward waveform examination. It offers adjustable trigger settings and common measurement readouts so users can characterise signals quickly. Its bench form factor and compact footprint make it suitable for benchtop use while remaining portable enough for on-site diagnostics.

Suitable for

• Electronics development and circuit debugging
• Repair and troubleshooting in workshops or service centers
• Educational labs and training environments
• Field diagnostics where a portable bench oscilloscope is required

When it may not be suitable

This oscilloscope is intended for general-purpose testing and basic to intermediate measurements. It may not meet requirements for very high-bandwidth or precision laboratory applications such as RF design above its bandwidth range, deep-memory high-resolution analysis, or specialized automated test setups. Users needing advanced protocol decoding, extremely high sample rates, or integrated automated measurement suites should verify that the oscilloscope's specifications match their needs before purchase.

Key specifications

• Channels: 2 analog input channels for differential or single-ended signal observation
• Display: color graphical display for waveform visualization
• Triggering: adjustable edge and common trigger modes to stabilise repeating signals
• Measurements: built-in basic measurement functions for amplitude, time and frequency parameters
• Form factor: bench-top design suitable for lab or workshop use

How to use

Connect probe(s) to the input channels and attach probe ground to the circuit ground. Power on the oscilloscope, set an appropriate vertical scale and timebase to view the waveform of interest, then adjust the trigger level and mode to stabilise the display. Use the built-in measurement functions to read amplitude, frequency or timing values, and capture or hold waveforms as required. Consult the user manual for probe compensation, safety precautions and device-specific menu navigation.

What to consider before purchase

• Verify the oscilloscope's bandwidth and sample rate are sufficient for the signals you will measure
• Consider whether two channels meet your testing needs or if more channels are required
• Check probe compatibility and whether additional probes or accessories are needed
• Confirm the available measurement functions cover the parameters you need (frequency, rise time, etc.)

Usage recommendations

For reliable measurements, always use properly compensated probes and connect probe ground to the same reference as the measured circuit. Begin with wider timebase and larger voltage scale, then refine settings to optimise waveform detail and trigger stability. When working in the field, protect the instrument from mechanical shock and extreme temperatures.
