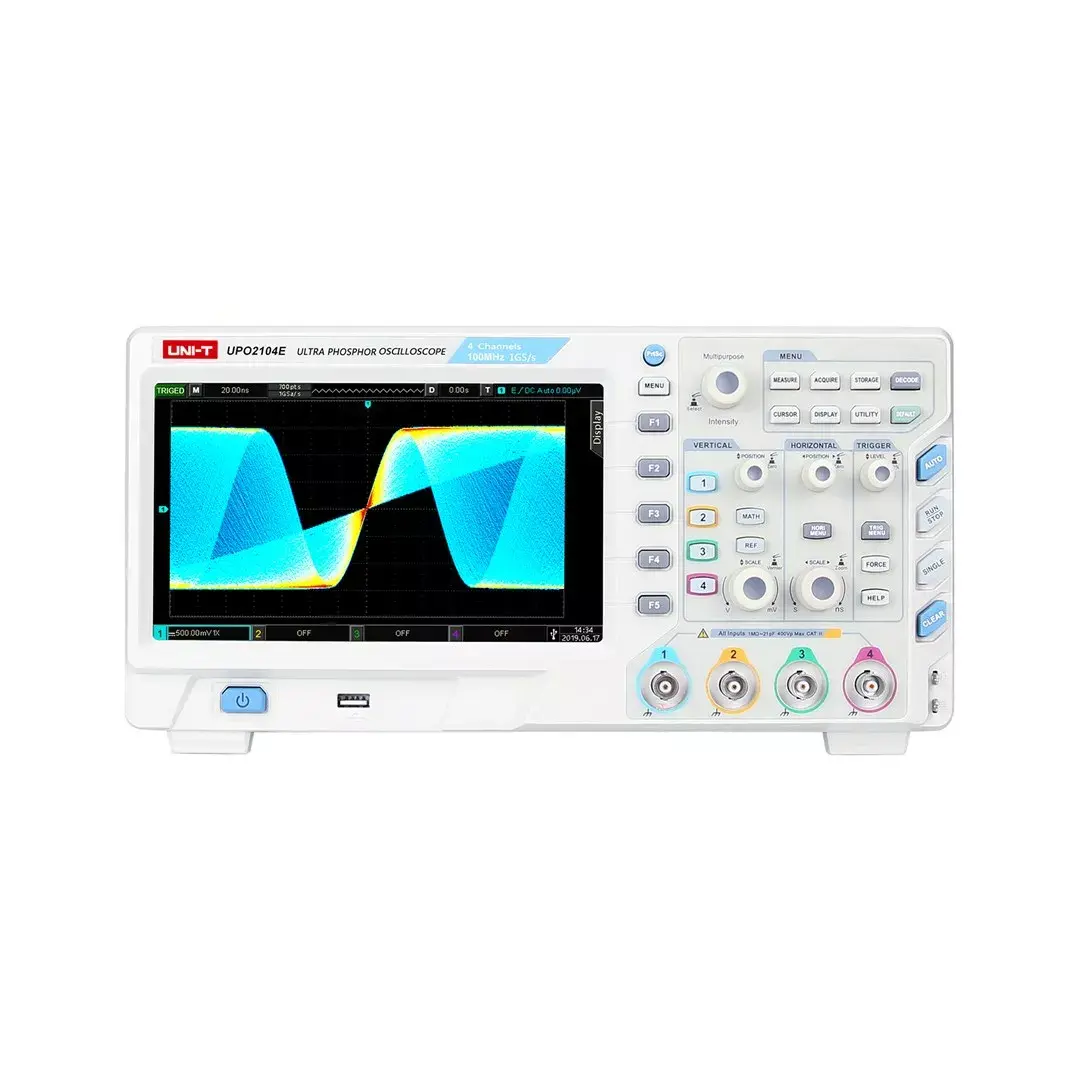

Oscilloscope Unit Uni-T UPO2104E, benchtop digital, 4 channels

The Unit Uni-T UPO2104E is a benchtop digital oscilloscope with four input channels, designed for electronic measurement and signal analysis. It captures voltage waveforms and transient signals, supports multi-channel observation and basic oscilloscope functions commonly required in laboratory, repair, education and development environments. The instrument combines a clear display, trigger options and measurement utilities to help users examine waveform shape, frequency and timing relationships across channels.

Advantages

The four-channel input allows simultaneous monitoring of multiple signals, which simplifies comparison and correlation tasks. Built-in trigger modes and measurement tools provide reliable capture of transient events and repetitive signals. The benchtop format offers stable placement and easy access to controls for bench testing and circuit debugging. Compact footprint and standard probe connectivity make the unit compatible with typical lab setups.

Suitable for

• Electronic circuit debugging and fault finding
• Laboratory measurements and waveform analysis
• Educational demonstrations and student labs
• Prototype development and multi-channel signal testing

Key specifications

• Type: Benchtop digital oscilloscope with four input channels
• Channel count: 4 channels for simultaneous waveform capture
• Display: Integrated graphical display for waveform visualization
• Triggering: Multiple trigger modes for capturing transient and periodic signals
• Measurements: On-screen measurement functions for frequency, amplitude and time intervals
• Connectivity: Standard probe inputs compatible with common oscilloscope probes
• Form factor: Bench-mounted design with front-panel controls

How to use

Connect the oscilloscope probes to the channels corresponding to the signals you want to observe and attach probe grounds to the circuit reference. Power on the unit, set an appropriate vertical scale and time base, then select a trigger source and level to stabilize the waveform display. Use channel selection and measurement functions to read amplitude, frequency and timing data. For multi-channel analysis, adjust coupling and scaling for each channel to align signal baselines and enable clear comparison.

Usage recommendations

When measuring, use probes with the correct attenuation setting and ensure proper grounding to minimize noise and measurement errors. Start with conservative voltage and timebase ranges, then refine settings for optimal detail. For safety, disconnect probes before changing circuit wiring and follow ESD precautions when working with sensitive components.
