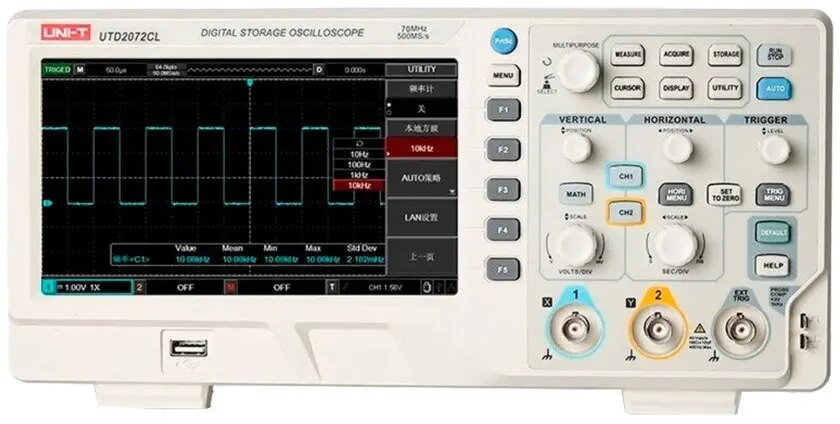

Oscilloscope Unit UTD2072CL — digital 2-channel bench oscilloscope

The Unit UTD2072CL — digital 2-channel bench oscilloscope is a compact instrument for visualizing and measuring electrical signals in electronics testing and diagnostics. Designed for laboratory benches and repair workstations, it provides time-base and voltage measurement functions, selectable probe settings, and standard oscilloscope controls for signal capture, display, and basic analysis of circuits, components and embedded systems.

Advantages

The oscilloscope features two input channels with independent vertical controls and a clear digital display that simplifies waveform observation. It supports common triggering modes and basic measurement tools for time and amplitude, enabling consistent capture of transient events and repetitive signals. Its bench-oriented form factor and front-panel controls offer quick access to frequently used functions, while connectivity options allow integration with external tools for documentation and further analysis.

Suitable for

• Repair workshops for troubleshooting electronic devices and assemblies
• Electronics laboratories for component and circuit testing
• Embedded systems development for signal verification and debugging
• Educational settings for practical training in signal measurement and oscilloscope operation

Key specifications

• Number of channels: 2 simultaneous analog inputs
• Display: digital screen for waveform visualization
• Time-base control: adjustable horizontal scale for time measurements and waveform capture
• Vertical control: adjustable volts/div for each channel with probe attenuation settings
• Triggering: standard trigger modes for stable waveform display and transient capture
• Measurement capabilities: time and voltage measurements for basic signal analysis
• Form factor: bench-top design with front-panel controls

How to use

Connect the probe to the channel input and set the probe attenuation to match the probe. Select the appropriate vertical scale (volts/div) for the expected signal amplitude and adjust the horizontal time-base (time/div) to display one or more cycles of the waveform. Choose the trigger source and level to stabilize the waveform display; use single-shot or normal trigger modes when capturing transient events. Use on-screen measurement cursors or built-in measurement functions to read peak-to-peak voltage, frequency, and time intervals as needed. When finished, turn off the unit and disconnect probes following standard safety procedures.

Usage recommendations

Use probes with correct attenuation and ground connections to avoid measurement errors. Verify probe calibration or compensation before precision measurements. For troubleshooting, start with a wider time-base and larger volts/div to locate signals, then refine settings to zoom in on details. Follow safety guidelines when measuring mains-connected or high-voltage circuits.
