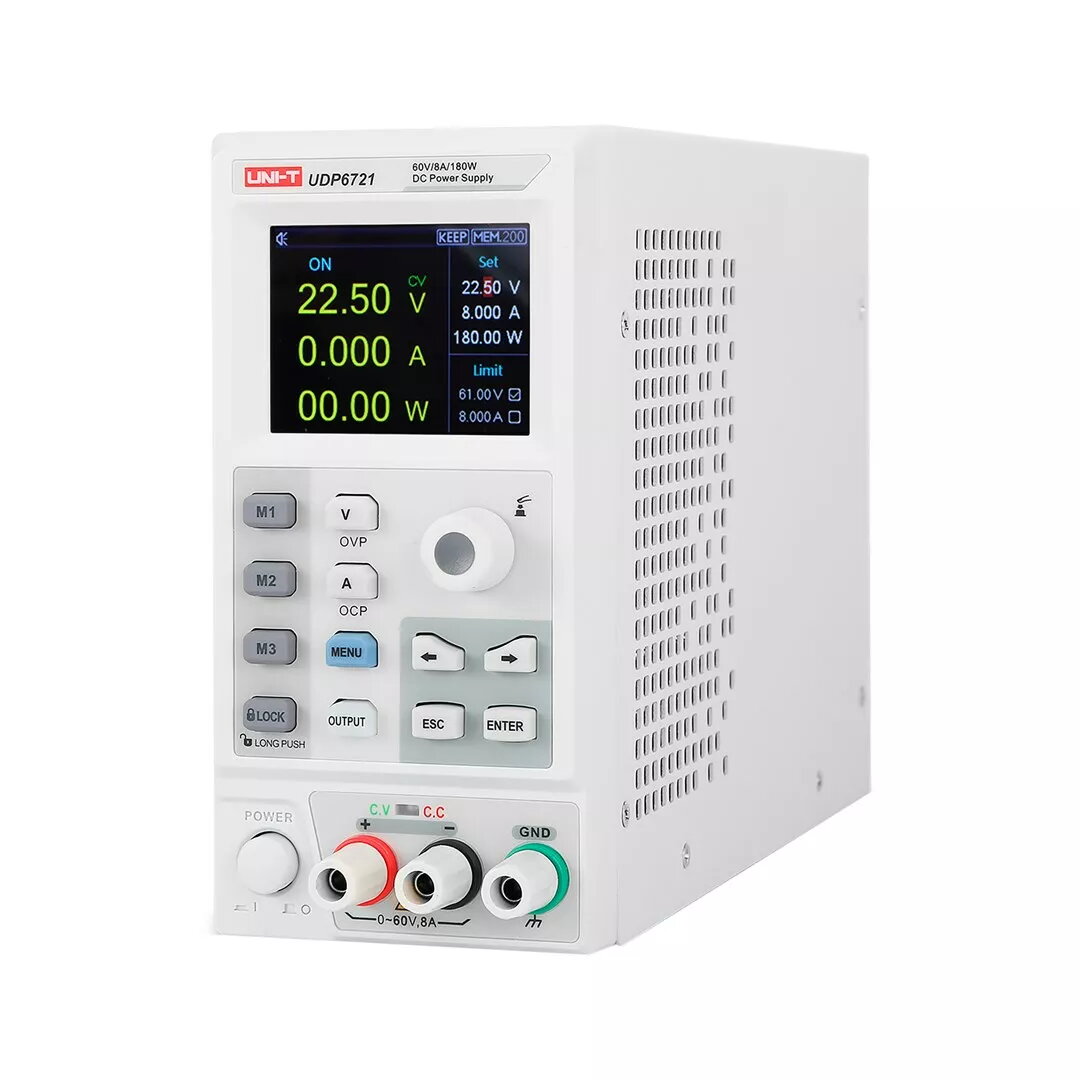

Laboratory Power Supply Unit Unit UDP6721 — compact benchtop DC power source

The Unit UDP6721 — compact benchtop DC power source is a laboratory power supply designed to deliver stable regulated voltage and current for testing, prototyping and educational use. Its compact form factor and straightforward front-panel controls provide reliable DC output for electronics repair, circuit development and routine bench tests. The design focuses on space efficiency and clear adjustment of output parameters, making the Unit UDP6721 suitable for workbenches, small labs and teaching environments where predictable, adjustable DC power is required.

Advantages

The Unit UDP6721 offers accurate voltage and current regulation with low output ripple, enabling repeatable test conditions. A compact footprint reduces bench clutter while the clear display and tactile adjustment knobs simplify setup and fine tuning. Built-in protection features help prevent damage to connected circuits during experiments and repairs. The instrument’s robust construction and user-oriented controls make it practical for frequent use in development and educational settings.

Suitable for

• Electronics repair and component testing
• Prototype development and bench testing
• Educational labs and student experiments
• Small workshop power supply needs

Key specifications

• DC output with adjustable regulated voltage and current
• Compact benchtop form factor suitable for limited bench space
• Front-panel controls for voltage and current adjustment
• Clear front display for real-time output readout
• Built-in protection against overcurrent and short-circuit conditions
• Low output ripple and stable regulation suitable for precision testing

How to use

Place the Unit UDP6721 on a stable, level surface and connect the power supply to mains power according to local safety requirements. Connect the load or device under test to the output terminals using appropriate leads and ensure correct polarity. Use the front-panel knobs or buttons to set the desired voltage and current limits; start with a low current limit when first powering unknown circuits. Monitor the front display to verify output values and make fine adjustments as needed. If the protection circuitry engages, remove the load and check the connections and the condition of the device under test before resetting the supply.

Usage recommendations

For reliable measurements and to minimize noise, use short, well-insulated connection leads and avoid running signal cables parallel to mains or high-current conductors. When testing sensitive components, set the current limit slightly above the expected operating current to prevent accidental overcurrent. Allow the supply to cool if used for extended periods at high output power and observe basic laboratory safety procedures when working with live circuits.
