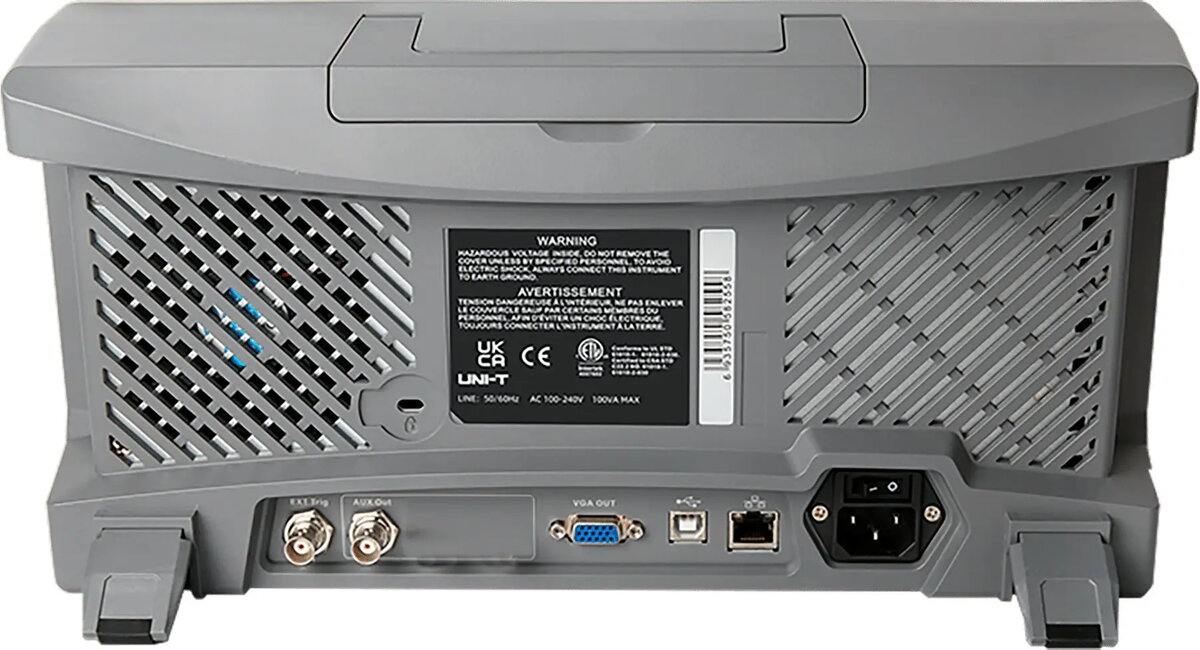

Oscilloscope Unit UPO3352E by Unit — bench digital oscilloscope model UPO3352E

The Unit UPO3352E bench digital oscilloscope is designed to measure and visualize electrical signals for diagnostics, testing and educational purposes. This oscilloscope captures voltage waveforms, measures timing relationships and displays signal characteristics on a digital screen, enabling users to observe transient events, periodic signals and noise in electronic circuits. The instrument provides standard oscilloscope functions needed for laboratory work, repair shops or classroom demonstrations while focusing on clear waveform acquisition and basic analysis.

Advantages

The oscilloscope offers stable waveform capture and straightforward controls that simplify signal observation and measurement. Its digital processing ensures consistent display of captured events and the unit supports common trigger modes for reliable synchronization. Compact bench form factor and clear screen presentation facilitate integration into workbenches and educational setups without occupying excessive space.

Suitable for

• Observing voltage waveforms in analogue and digital circuits
• Troubleshooting and fault diagnosis in electronics repair
• Measuring signal timing, rise/fall times and pulse characteristics
• Laboratory experiments and hands-on teaching in electronics

Key specifications

• Bench-mounted digital oscilloscope format suitable for table use
• Multi-channel input capability for comparing signals
• Real-time waveform acquisition and digital display of signals
• Varied trigger modes for capturing specific events and transients
• Measurement functions for amplitude, time and basic signal parameters

How to use

Connect the probe to the channel input and attach the probe tip and ground clip properly to the test points. Configure the vertical and horizontal scales to match the expected signal amplitude and frequency, then select an appropriate trigger source and level to stabilize the waveform on the display. Use measurement cursors or built-in measurement functions to read amplitude, frequency and timing values. When finished, disconnect probes and power down the unit following standard safety practices for electronic instruments.

Usage recommendations

Use appropriate probe attenuation and grounding techniques to avoid measurement errors. Verify probe compensation before precise measurements and select trigger settings that match the signal characteristics. For education and repair tasks, start with auto-setup or auto-scale features to quickly obtain a stable display, then refine settings for detailed analysis.
