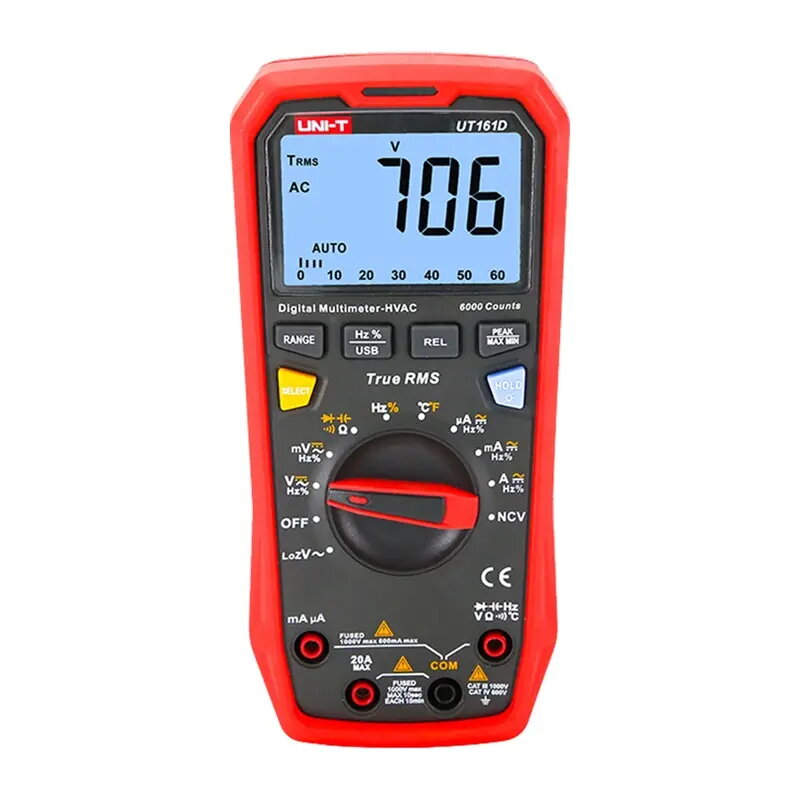

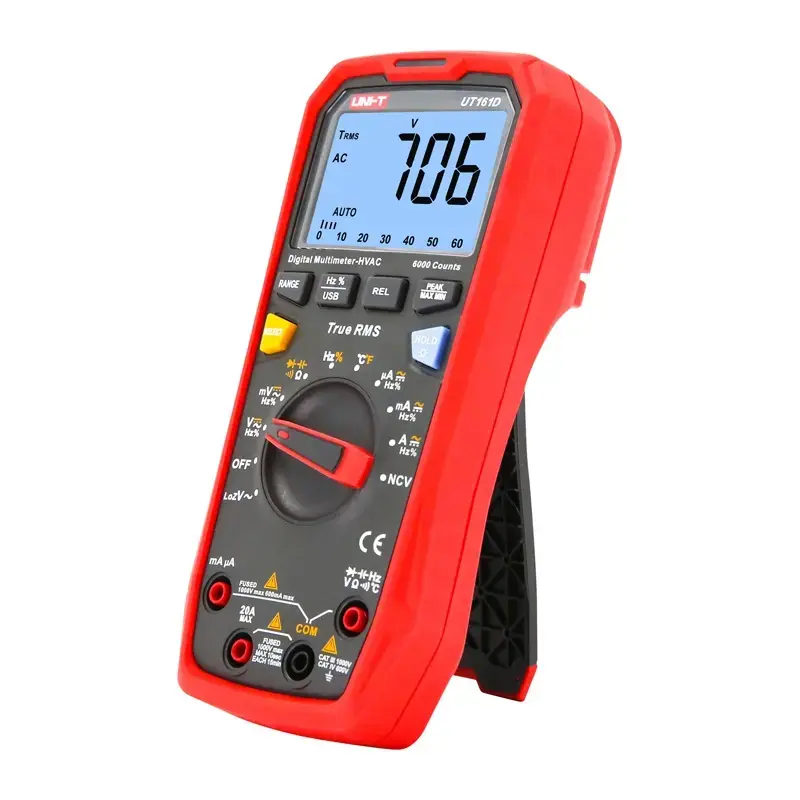

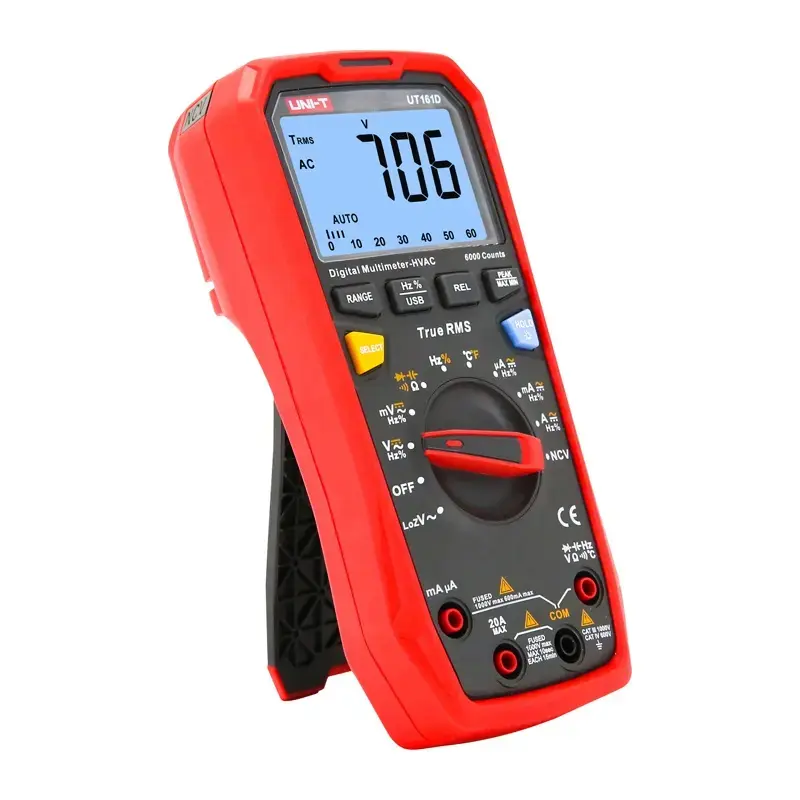

Uni-T UT161D Digital Multimeter True RMS

The Uni-T UT161D Digital Multimeter is a high-performance, professional-grade measurement tool engineered for precision and reliability. Featuring True RMS technology, this device provides accurate readings for non-sinusoidal waveforms, making it an essential instrument for electrical diagnostics, industrial maintenance, and electronics development. Its robust design and high-resolution display ensure that technicians can perform complex measurements with confidence in various working environments.

Advantages

This multimeter offers exceptional versatility by combining a wide range of measurement capabilities with advanced diagnostic features. The True RMS functionality ensures accuracy even in noisy electrical environments, while the inclusion of LoZ and NCV modes enhances safety and helps eliminate ghost voltages. The device is built for efficiency, featuring a clear backlit display with an analog bar graph for quick visual assessment, and USB connectivity for seamless data logging and analysis on a computer.

Suitable for

• Electrical installation testing and troubleshooting
• Industrial equipment maintenance and repair
• Electronics prototyping and circuit board analysis
• Laboratory research and educational purposes
• HVAC system diagnostics using temperature measurement

This device may not be suitable for high-voltage power distribution systems exceeding the CAT IV 600V or CAT III 1000V safety ratings. Additionally, users requiring specialized high-frequency analysis beyond the standard bandwidth or those needing extremely high-precision laboratory-grade calibration for micro-ampere measurements might require more specialized benchtop equipment.

Key specifications

• Measurement range: AC/DC voltage up to 1000V, current up to 10A
• Resistance measurement up to 60MΩ and capacitance up to 60mF
• Frequency range up to 10MHz
• Temperature measurement range: -40°C to 1000°C
• Safety ratings: CAT III 1000V and CAT IV 600V
• Display: 6000-count resolution with backlight and analog bar graph
• Connectivity: USB interface for data transfer

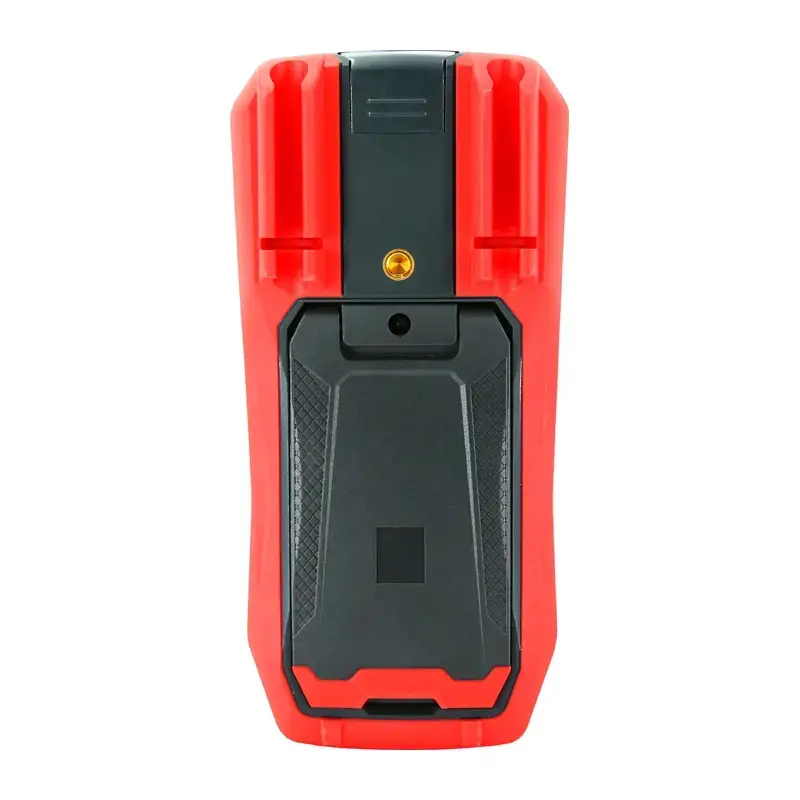

To use the Uni-T UT161D, insert the provided batteries into the rear compartment and connect the test leads to the appropriate input jacks based on the desired measurement type. Select the function using the rotary dial, and use the function buttons to toggle between modes such as Max/Min, Peak Hold, or Relative mode. For NCV testing, simply bring the top of the meter near the conductor to detect live voltage. Always ensure the leads are connected correctly before applying power to the circuit.

What to consider before purchase

• Verify that the safety rating (CAT III/IV) matches your specific work environment requirements.
• Ensure the measurement ranges for current and voltage cover the equipment you intend to test.
• Consider if you require the USB data logging feature for your specific documentation needs.
• Check if the included thermocouple range is sufficient for your temperature monitoring tasks.

Always inspect the test leads for damage before every use and ensure the multimeter is set to the correct range to prevent damage to the device or injury. When measuring unknown values, start with the highest range setting and work downwards.
