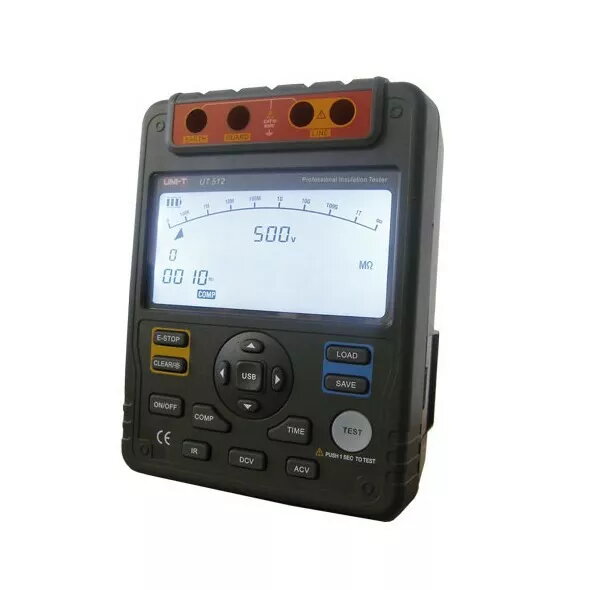

Unit UT512 High-Voltage Insulation Resistance Tester with LCD Display

The Unit UT512 is a professional-grade high-voltage insulation resistance tester engineered for precise electrical diagnostics and safety verification. This robust instrument is designed to measure insulation resistance across a wide range of voltages, making it an indispensable tool for electrical maintenance, troubleshooting, and quality assurance in industrial and field settings. Equipped with a high-resolution 9999-count LCD display and a 29-segment analog bar graph, the device ensures clear visibility of measurements, allowing technicians to monitor trends and stability during testing procedures.

Advantages

The primary advantage of the Unit UT512 lies in its ability to perform high-voltage testing with high precision and reliability. Its durable construction is built to withstand the rigors of daily industrial use, providing consistent performance in demanding environments. The inclusion of an analog bar graph alongside the digital display offers a visual representation of resistance changes, which is particularly useful for identifying transient faults or insulation degradation that might be missed by digital readings alone. Furthermore, the device is designed with user safety and operational efficiency in mind, simplifying complex diagnostic tasks for electrical professionals.

Suitable for

• Testing insulation resistance of high-voltage power cables
• Maintenance and diagnostic checks for industrial motors and generators
• Safety verification of electrical transformers and switchgear
• Routine electrical system inspections in manufacturing facilities

This device may not be suitable for low-voltage electronics repair or sensitive micro-circuitry diagnostics, as its high-voltage output could potentially damage delicate components. It is also not intended for general-purpose multimeter tasks such as measuring low-level current or logic signals.

Key specifications

• Test voltage range up to 2500V
• Insulation resistance measurement up to 100 Gigaohms
• 9999-count LCD display with analog bar graph
• Short circuit current up to 3mA
• Auto-ranging functionality
• Data storage and recall capabilities

To use the Unit UT512, ensure the equipment under test is completely de-energized and disconnected from the power supply. Connect the test leads to the device and the target component, select the appropriate test voltage, and initiate the measurement. Observe the digital display and the analog bar graph to monitor the insulation resistance value. Once the test is complete, allow the device to discharge any residual voltage from the component before disconnecting the leads.

What to consider before purchase

• Verify that the maximum test voltage meets the requirements of your specific electrical equipment
• Ensure the device is calibrated for your local safety standards
• Consider the need for periodic calibration to maintain measurement accuracy
• Check compatibility with existing test lead accessories

Usage recommendations

Always wear appropriate personal protective equipment when performing high-voltage insulation tests. Ensure that the area is clear of personnel and that all safety protocols are followed to prevent accidental contact with live terminals during the testing process.
