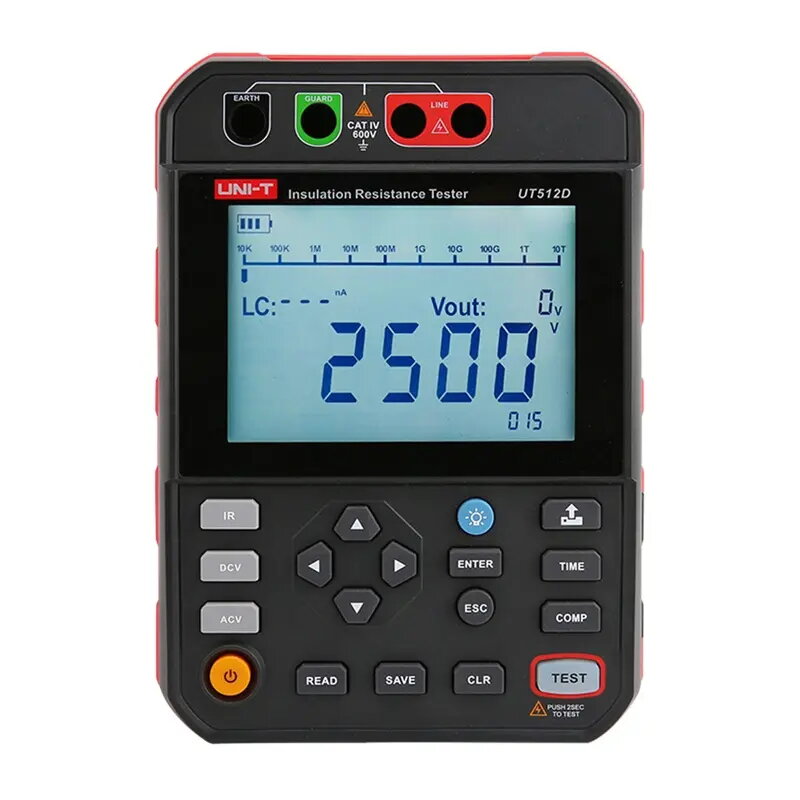

Uni-T UT512D High-Voltage Insulation Resistance Tester

The Uni-T UT512D High-Voltage Insulation Resistance Tester is a professional-grade diagnostic tool engineered for precise electrical testing in demanding industrial and commercial environments. This robust device is specifically designed to evaluate the insulation integrity of critical electrical infrastructure, including high-voltage cables, motors, transformers, and switchgear. With its advanced digital processing and reliable measurement capabilities, it provides maintenance engineers and technicians with the data necessary to ensure operational safety and prevent unexpected equipment failures.

Advantages

This insulation tester stands out due to its versatile voltage output, which allows for testing across a broad spectrum of electrical systems. The integration of Polarization Index (PI) and Dielectric Absorption Ratio (DAR) measurement functions provides a deeper insight into the long-term health of insulation materials, moving beyond simple resistance checks. Furthermore, the device is built with user safety as a priority, featuring automatic discharge circuits and high-voltage alerts that mitigate risks during operation. The inclusion of extensive data logging capabilities and USB connectivity facilitates efficient documentation and reporting, which is essential for compliance and routine maintenance scheduling.

Suitable for

• Testing insulation resistance of high-voltage power cables
• Diagnostic maintenance of industrial motors and generators
• Safety inspections of transformers and electrical switchgear
• Preventive maintenance in power distribution networks
• Verification of insulation integrity in commercial electrical installations

When it may not be suitable

This device is specifically calibrated for high-voltage insulation testing and may not be the optimal choice for basic low-voltage continuity checks or standard household appliance troubleshooting where lower voltage ranges are required. It is also not intended for use in explosive atmospheres or environments that exceed its specified CAT IV 600V safety rating.

Key specifications

• Test voltages: 250V, 500V, 1000V, 2500V
• Insulation resistance range: Up to 249 GΩ (accurate) and 1.00 TΩ (indicative)
• Short-circuit current: Approximately 3.5 mA
• Data storage: Up to 999 measurement sets
• Connectivity: USB interface for PC data transfer
• Safety rating: CAT IV 600V
• Power source: 8 x LR14 alkaline batteries
• Weight: Approximately 1800 g

How to use

To begin, ensure the device is powered by fresh batteries and connect the appropriate test leads to the input terminals. Select the desired test voltage based on the equipment specifications you are inspecting. Securely attach the leads to the insulation under test, ensuring a clean connection. Initiate the measurement and allow the device to stabilize. Once the reading is complete, the automatic discharge function will safely dissipate any residual charge. You can save the results to the internal memory and later transfer them to a computer via the USB cable for detailed analysis.

What to consider before purchase

• Ensure the test voltage range matches the requirements of your specific electrical equipment.
• Verify that the CAT IV 600V safety rating is sufficient for your working environment.
• Consider the need for data logging and PC connectivity for your reporting workflow.
• Check the physical dimensions and weight to ensure portability for your field tasks.

Usage recommendations

Always verify that the circuit under test is completely de-energized before connecting the insulation tester to prevent damage to the device and ensure operator safety. Regularly calibrate the instrument to maintain measurement accuracy and follow the manufacturer's guidelines for battery replacement to ensure consistent performance.
