Capacitance and Resistance Meter Unit UT601, capacitance and resistance measurement

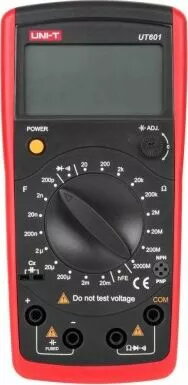

The Unit UT601 is a handheld capacitance and resistance meter designed for straightforward measurement of capacitor values and resistances in electronic circuits. This compact device delivers direct readouts for capacitance and resistance, enabling component verification, troubleshooting, and basic repair tasks for both professionals and hobbyists. The UT601 supports quick checks on PCBs and individual components, helping to identify faulty parts and validate circuit behavior during diagnostics and maintenance.

Advantages

The meter offers clear numeric readouts for capacitance and resistance, with a user-friendly interface that simplifies measurement procedures. Its handheld form factor makes it portable for bench work and field service. The Unit UT601 provides reliable readings suitable for routine component testing and verification without requiring complex setup or calibration for typical applications.

Suitable for

• Measuring capacitance of discrete capacitors and PCB-mounted components
• Checking resistance values in circuits and on passive components
• Troubleshooting electronic assemblies and locating defective parts
• Routine maintenance and verification in repair workshops and hobby projects

Key specifications

• Measurement functions: capacitance and resistance
• Form factor: handheld, portable instrument
• Display: digital numeric readout for direct measurement values
• Typical applications: component testing, PCB diagnostics, maintenance tasks
• User interface: simple controls for quick measurements

How to use

Power on the meter, select the appropriate measurement function (capacitance or resistance), and connect the test leads to the component or circuit under test. For capacitance measurement, ensure the capacitor is discharged and, where possible, removed from active circuit paths to obtain more accurate values. For resistance checks, isolate the component from power and other parallel paths to prevent erroneous readings. Read the displayed value and compare it against expected specifications or reference values.

Usage recommendations

To improve measurement accuracy, discharge capacitors thoroughly before testing and disconnect one leg of the component when measuring on populated PCBs. Avoid applying external power to the circuit while performing resistance measurements. Store the meter in a dry, dust-free environment and periodically inspect the test leads and contacts for wear or corrosion.
